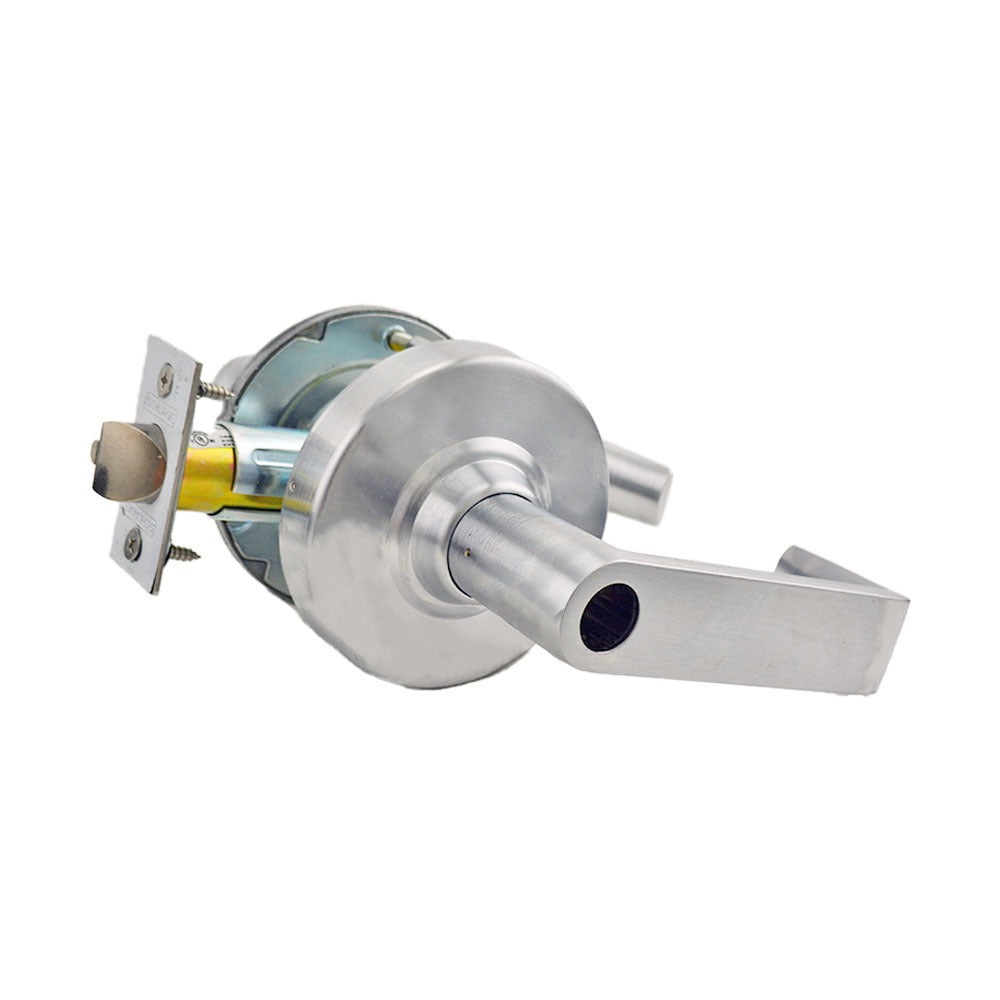

Schlage Commercial ALX70LRHO626 Grade 2 Classroom Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX70LRHO626 is a Grade 2 classroom lever lock from the ALX Series, designed for commercial and institutional door hardware applications. It ships with the Rhodes lever trim, a 47270197 tailpiece, a 47267042 2-3/4 inch deadlatch, and a 47267101 ANSI strike in a Satin Chrome finish. The lock is configured less cylinder, meaning the end user supplies and installs the cylinder core separately. This unit is sold individually and is appropriate for commercial interior doors in educational, office, and institutional settings.

The ALX70LRHO626 is suited for classroom-function applications where the exterior lever is locked or unlocked by a key from outside while the interior lever remains free-egress at all times. This makes it a common choice for K-12 and higher education classrooms, office suites, and similar spaces requiring controlled entry without restricting exit. The included ANSI-format strike and deadlatch are ready for standard door prep, reducing the need for additional hardware sourcing on typical installations.

Key Features

• Classroom function: exterior lever locked or unlocked by key, interior lever always free for egress
• Less-cylinder configuration allows installer to supply and fit the appropriate core
• Includes 47270197 tailpiece, 47267042 2-3/4 inch deadlatch, and 47267101 ANSI strike
• Rhodes lever style on ALX Series chassis
• Satin Chrome (626) finish for corrosion resistance in commercial environments
• ANSI Grade 2 rating suitable for commercial interior door applications

Compatibility

Designed as an OEM-style replacement or new-installation unit for commercial and institutional doors requiring a Grade 2 classroom-function lever lock with standard ANSI door prep. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with ANSI/BHMA standards and applicable building codes. Verify door thickness and backset before installation, and ensure the door prep matches the included deadlatch and strike dimensions. Because this unit ships less cylinder, the appropriate cylinder or interchangeable core must be sourced and installed separately before the lock is functional. Always confirm local code requirements for classroom egress hardware before completing the installation.
