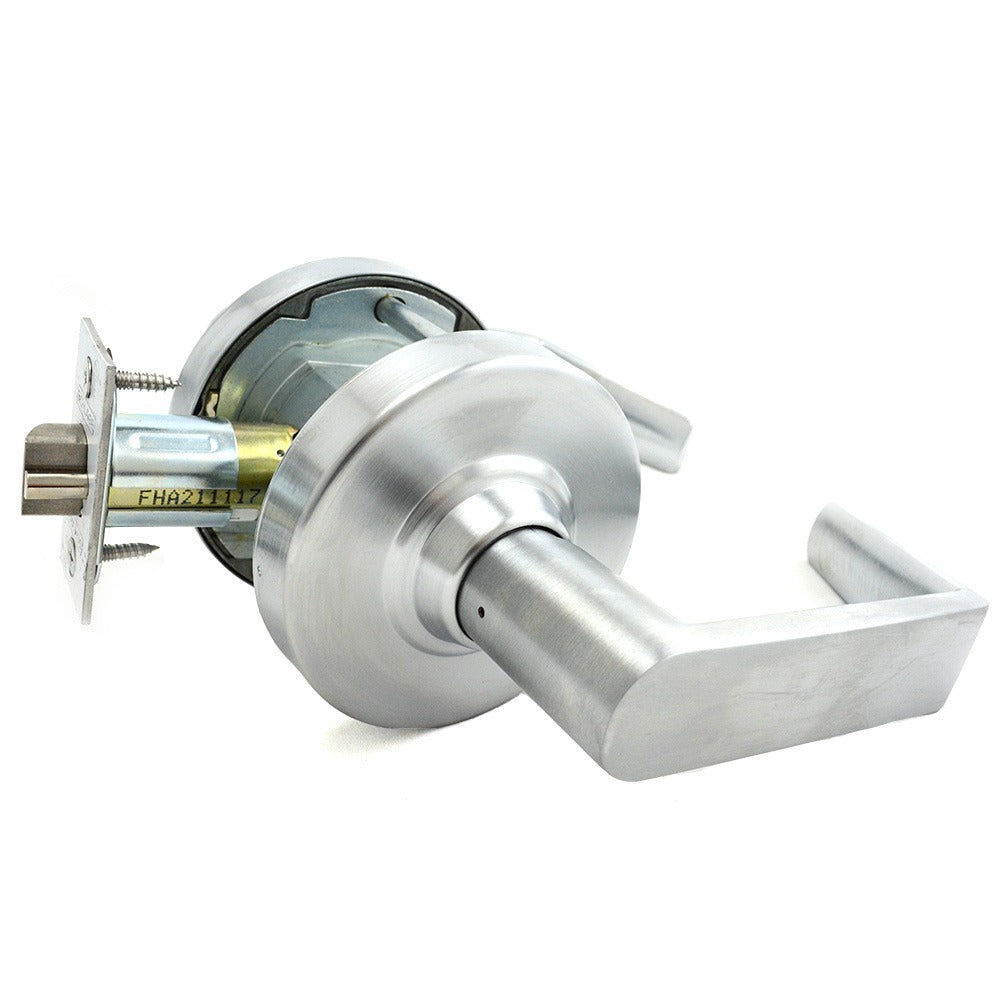

Schlage Commercial ALX70JRHO626 Grade 2 Classroom Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX70JRHO626 is a Grade 2 classroom-function lever lock from the ALX Series, designed for commercial and institutional door hardware applications. It features a Rhodes lever trim and ships with a Large Format Interchangeable Core (LFIC) prep, meaning the core is not included and must be ordered separately. The package includes the 47269168 tailpiece, a 47267042 2-3/4 inch deadlatch, and a 47267101 ANSI strike in a Satin Chrome finish. Licensed locksmiths, commercial door hardware installers, and facility maintenance professionals typically specify and install this hardware.

This lock is suited for classroom security applications in commercial buildings, schools, universities, and institutional facilities. The classroom function allows the lever to remain locked from the outside while providing free egress from the inside at all times. The LFIC prep accommodates large format interchangeable core cylinders, which allows facilities using a keyed master system to swap cores without removing the lock body from the door. No specific compatible model numbers or system families were provided in the product data.

Key Features

• ALX Series Grade 2 classroom function — outside lever locked by key, free egress from inside
• Large Format Interchangeable Core prep — core sold separately, compatible with LFIC keying systems
• Rhodes lever design for commercial trim aesthetics
• Includes 47269168 tailpiece for LFIC cylinder installation
• Includes 47267042 2-3/4 inch deadlatch for standard door prep
• Includes 47267101 ANSI strike in Satin Chrome finish (626)

Compatibility

Designed as an OEM-style commercial door hardware replacement or new-installation lock for Grade 2 classroom applications requiring a Large Format Interchangeable Core prep. No specific door model numbers or system families were stated in the product data.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI Grade 2 lock sets and LFIC core systems. Verify the door prep matches the standard cross-bore and edge-bore dimensions before installation. The core is not included and must be procured and installed separately using the included tailpiece. Follow local building and fire codes for hardware on rated corridor and classroom doors.
