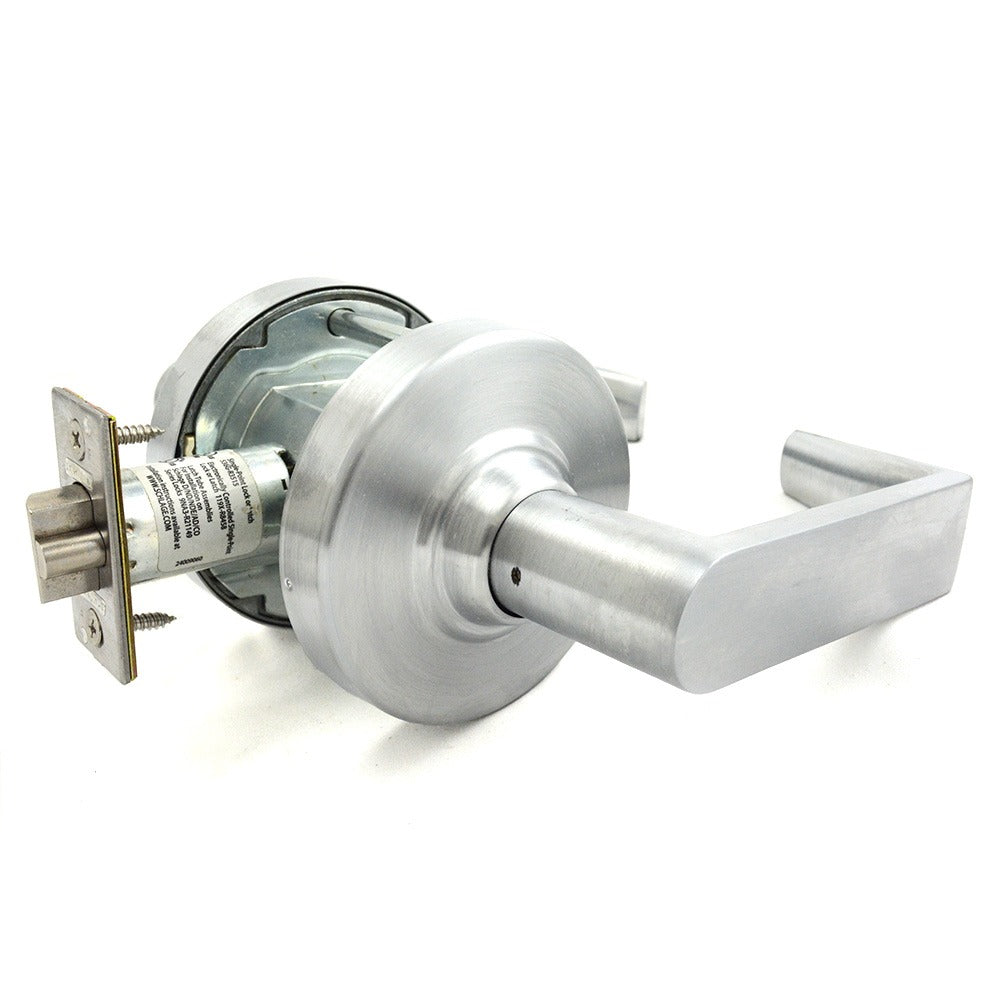

Schlage Commercial ALX70BRHO626 Grade 2 Classroom Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX70BRHO626 is a Grade 2 classroom lever lock from the ALX Series, designed for commercial and institutional door hardware applications. It features a Rhodes lever design and is prepped for a Small Format Interchangeable Core (SFIC), with the core sold separately. The lock ships with the 47269620 tailpiece, a 47267101 ANSI strike in Satin Chrome finish, and a 47267042 2-3/4 inch deadlatch. This unit is installed by licensed locksmiths or commercial door hardware technicians in light commercial, educational, and institutional settings.

The ALX70BRHO626 is suited for classroom security applications where a keyed lever lock is required on interior corridor doors. The classroom function keeps the exterior lever locked at all times, operable only by key, while the interior lever remains free-egress. This configuration meets typical classroom security requirements for schools, universities, and commercial office environments. The Satin Chrome finish coordinates with standard commercial hardware finishes in educational and institutional facilities.

Key Features

• Grade 2 classroom function lever lock for light commercial and institutional use
• Small Format Interchangeable Core (SFIC) prep allows field rekeying without disassembly — core not included
• Includes 47269620 tailpiece compatible with SFIC installation
• Includes 47267042 2-3/4 inch deadlatch for standard door prep
• Includes 47267101 ANSI strike in Satin Chrome finish
• Rhodes lever design in Satin Chrome (626) finish

Compatibility

Designed as an OEM-style classroom lever lock for standard commercial door prep accepting Small Format Interchangeable Core cylinders. Compatible hardware and cores must be sourced separately and confirmed to match SFIC specifications.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Confirm door thickness, backset, and existing prep dimensions before installation, and verify that the selected SFIC core is compatible with this lock body. Refer to applicable building codes and ADA requirements for lever hardware clearance and operation force. Always test lockset function fully before closing out the installation.
