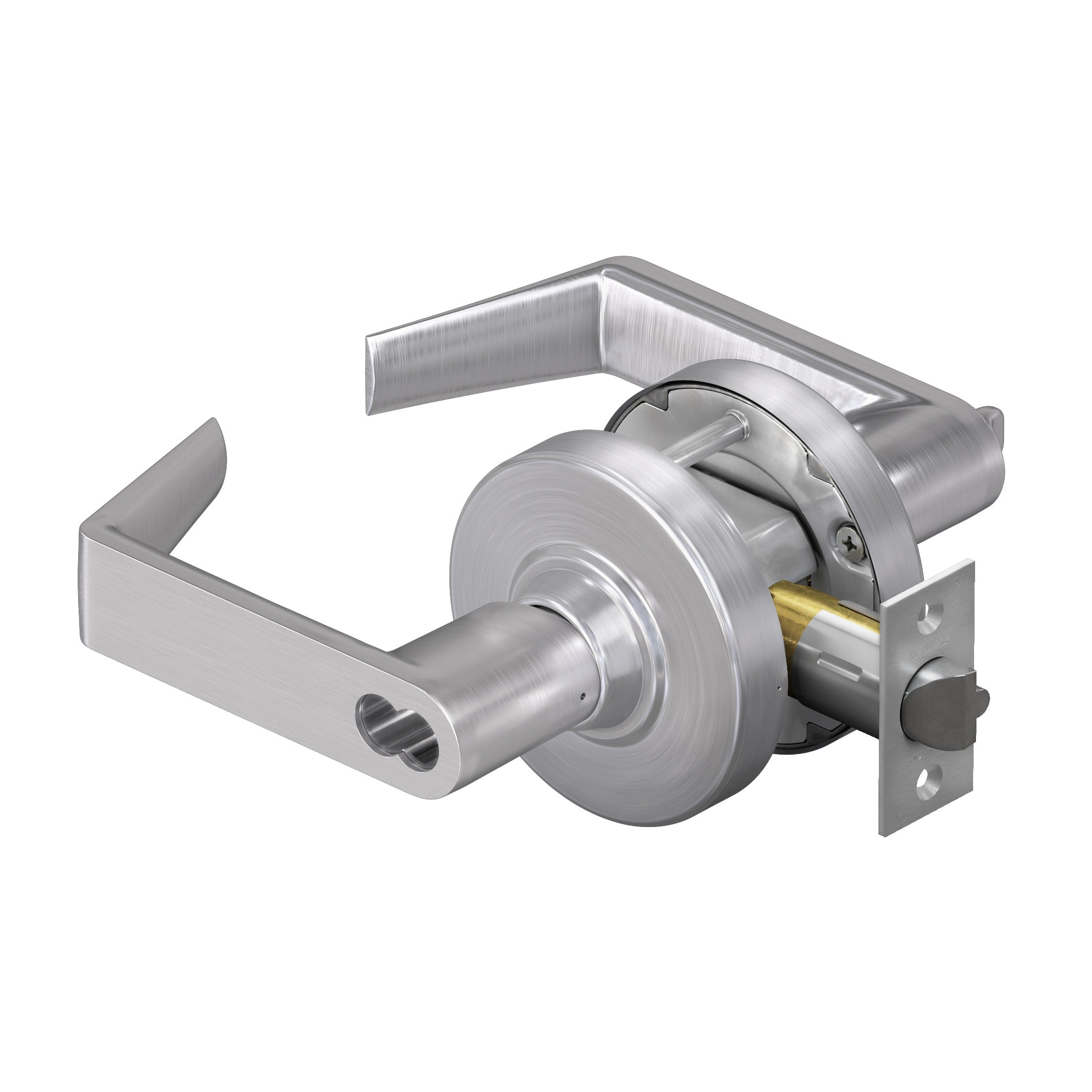

Schlage Commercial ALX53BRHO626 Grade 2 Entry Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX53BRHO626 is a Grade 2 entry lever lock from the ALX Series, designed for commercial and institutional door applications requiring reliable keyed-entry function. It features the Rhodes lever trim, a small format interchangeable core (SFIC) prep that ships less core, and a satin chrome (626) finish. Included in the package are a 47267042 2-3/4 inch deadlatch and a 47267101 ANSI strike plate. This hardware is installed by licensed locksmiths, commercial door contractors, and facilities maintenance technicians.

The ALX53BRHO626 is suited for commercial office doors, institutional corridors, multi-family common areas, and light-to-medium traffic entry points requiring Grade 2 performance. The SFIC prep allows facilities using a small format interchangeable core keying system to drop in their existing core without additional machining. The included ANSI strike and 2-3/4 inch deadlatch make this a complete lock prep ready for standard door preparation.

Key Features

• ANSI Grade 2 rated entry function — keyed outside, free egress inside
• Rhodes lever trim on both interior and exterior
• Small format interchangeable core (SFIC) prep — ships less core for field installation of existing core
• Includes 47267042 2-3/4 inch deadlatch and 47267101 ANSI strike
• Satin chrome (626) finish for corrosion resistance in commercial environments

Compatibility

Designed as an OEM-style replacement or new-installation lever lock for standard commercial door preparations accepting ANSI Grade 2 cylindrical locksets with small format interchangeable core prep.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Verify the door is properly prepped to ANSI standard bore dimensions before mounting. The core is not included — install the appropriate small format interchangeable core separately after mounting the lock chassis. Consult applicable building and fire codes, including IBC and local AHJ requirements, for egress compliance before finalizing hardware selection.
