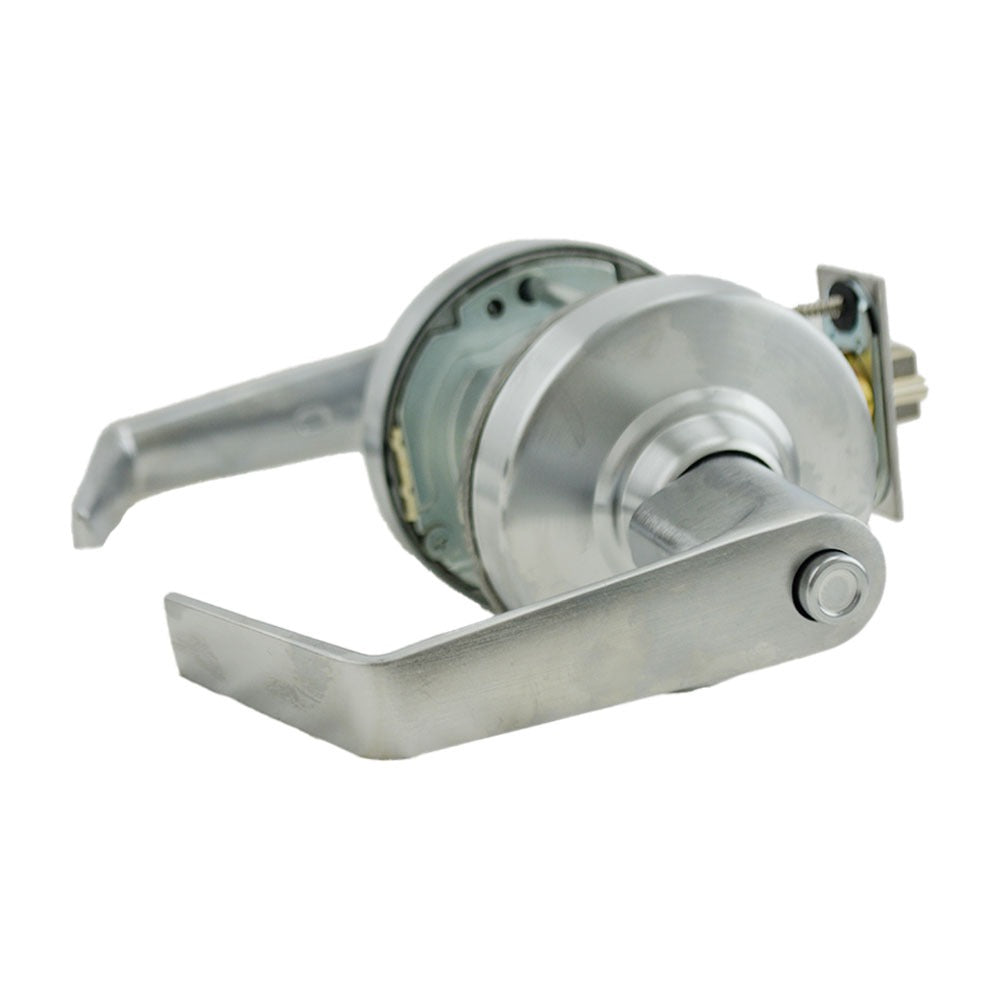

Schlage Commercial ALX50LSAT626 Alx Grade 2 Entry Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX50LSAT626 is a Grade 2 entry and office lever lockset from the ALX Series, finished in satin chrome. It features a Saturn-style lever handle and ships without a cylinder, making it suitable for keying systems where the cylinder is sourced or rekeyed separately. The lockset includes a 47267042 2-3/4 inch deadlatch and a 47267101 ANSI strike plate. At 3.9 pounds, this is a solid mechanical lockset designed for commercial and light institutional interior and exterior door applications where a professional-grade lever lock is required.

The ALX50LSAT626 is used in commercial office buildings, multi-family residential properties, and institutional facilities where Grade 2 security performance is specified. The less-cylinder configuration is common in large projects where hardware is ordered in advance and a master key system or specific cylinder is installed on site by a licensed locksmith or door hardware professional. The satin chrome finish coordinates with standard commercial hardware specifications.

Key Features

• ANSI Grade 2 rated for commercial and light institutional duty
• Saturn lever design in satin chrome (626) finish
• Less-cylinder configuration supports field keying or master key system installation
• Includes 47267042 2-3/4 inch deadlatch for standard door prep
• Includes 47267101 ANSI strike plate for direct installation
• Sold individually; case quantity of 6 available

Compatibility

Designed as an OEM-style entry and office lever lockset for commercial-grade door applications requiring an ANSI-standard 2-3/4 inch backset deadlatch and ANSI strike. Verify door prep and handing requirements prior to ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with ANSI/BHMA standards. Confirm the door is prepped for the correct backset and that the bore diameter matches ALX Series requirements before installation. The less-cylinder design requires a separate cylinder to be installed to complete the locking function. Follow local building and fire codes for egress hardware requirements on commercial doors.
