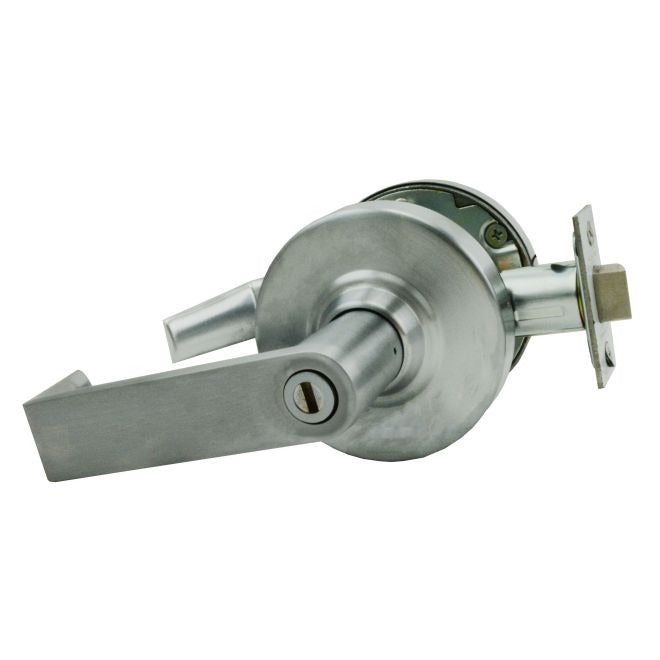

Schlage Commercial ALX40SPA626 Alx Series Grade 2 Privacy Lever

Product Description

The SCHLAGE COMMERCIAL ALX40SPA626 is a Grade 2 privacy lever lock from the ALX Series, designed for interior door applications where occupied or vacant status is required. It features the Sparta lever trim and comes in a Satin Chrome finish. The lock includes a 2-3/4 inches spring latch and an ANSI-standard strike plate. Sold as a single unit, this lock is typically installed by commercial locksmiths, general contractors, or facilities maintenance technicians in light commercial and multi-family residential settings.

The ALX40SPA626 suits interior privacy applications such as restrooms, offices, and hotel rooms in light commercial, multi-family, and institutional buildings. The Satin Chrome finish provides a clean, professional appearance consistent with standard commercial hardware specifications. The included spring latch and ANSI strike make it a complete, ready-to-install assembly without requiring additional trim or hardware sourcing.

Key Features

• Grade 2 ANSI/BHMA rating suitable for light commercial and multi-family interior doors
• Privacy function — push-button or turn-button locking with emergency release from outside
• Sparta lever trim in Satin Chrome (626) finish
• Includes 2-3/4 inches spring latch (part 47267038) and ANSI strike (part 47267101)
• Sold individually; case quantity of 6 available for project orders

Compatibility

Designed as an OEM-style replacement or new-installation lever lock for standard interior door prep in light commercial and multi-family applications requiring a Grade 2 privacy function with a 2-3/4 inches backset spring latch.

Installation Notes

Installation is performed by a licensed locksmith or qualified carpenter following ANSI/BHMA door hardware prep standards. Ensure the door is properly prepped with a standard cylindrical bore before installation. Disengage any existing hardware and confirm the door is not under spring tension before removing old hardware. Follow local building codes for privacy hardware requirements in commercial occupancies.
