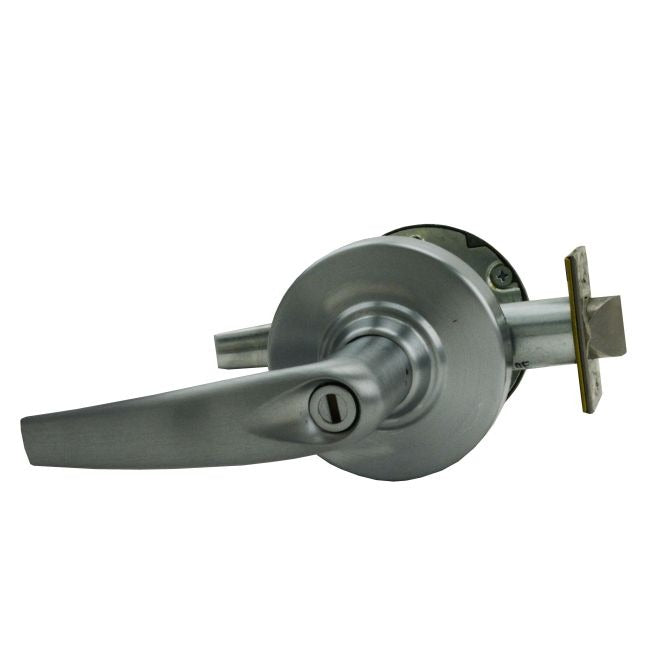

Schlage Commercial ALX40ATH626 Grade 2 Privacy Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX40ATH626 is a Grade 2 privacy lever lock from the ALX Series, featuring the Athens lever design in a Satin Chrome finish. This lockset is built for interior privacy applications such as bathrooms and bedrooms, providing a simple push-button or turn-button locking mechanism with emergency access from the outside. The unit ships with a 47267038 2-3/4 inch spring latch and a 47267101 ANSI strike, giving installers a complete, ready-to-mount assembly. At 4.1 pounds, the ALX40ATH626 is a solid-duty commercial-grade lockset appropriate for light commercial and institutional environments.

The ALX40ATH626 is designed for interior door applications in commercial, institutional, and multi-family residential settings where privacy locking is required without keyed entry. Typical install locations include restrooms, private offices, hotel rooms, and similar spaces where occupants need to lock a door from the inside while allowing emergency override from the outside. The Athens lever profile offers a clean, contemporary look suited to standard commercial door preps.

Key Features

• ANSI Grade 2 privacy function — push or turn button locks lever from outside, emergency release allows override
• Athens lever design in Satin Chrome (626) finish for a clean commercial aesthetic
• Includes 47267038 2-3/4 inch spring latch for standard door backset applications
• Includes 47267101 ANSI strike for complete, code-ready installation
• ALX Series construction suited for light commercial and institutional door hardware programs

Compatibility

Designed as an OEM-style replacement or new-installation lockset for commercial and institutional interior doors requiring ANSI Grade 2 privacy function with standard door prep. Specific cross-compatible door or frame model numbers were not provided in available product data.

Installation Notes

Installation is typically performed by a licensed locksmith or commercial door hardware installer following the door manufacturer's prep specifications and applicable building codes. Power down any access control or electric strike systems at the door before beginning work. Verify the door backset matches the included 2-3/4 inch spring latch before installation. Consult local building codes and ADA requirements for lever height, clearance, and hardware specifications on commercial openings.
