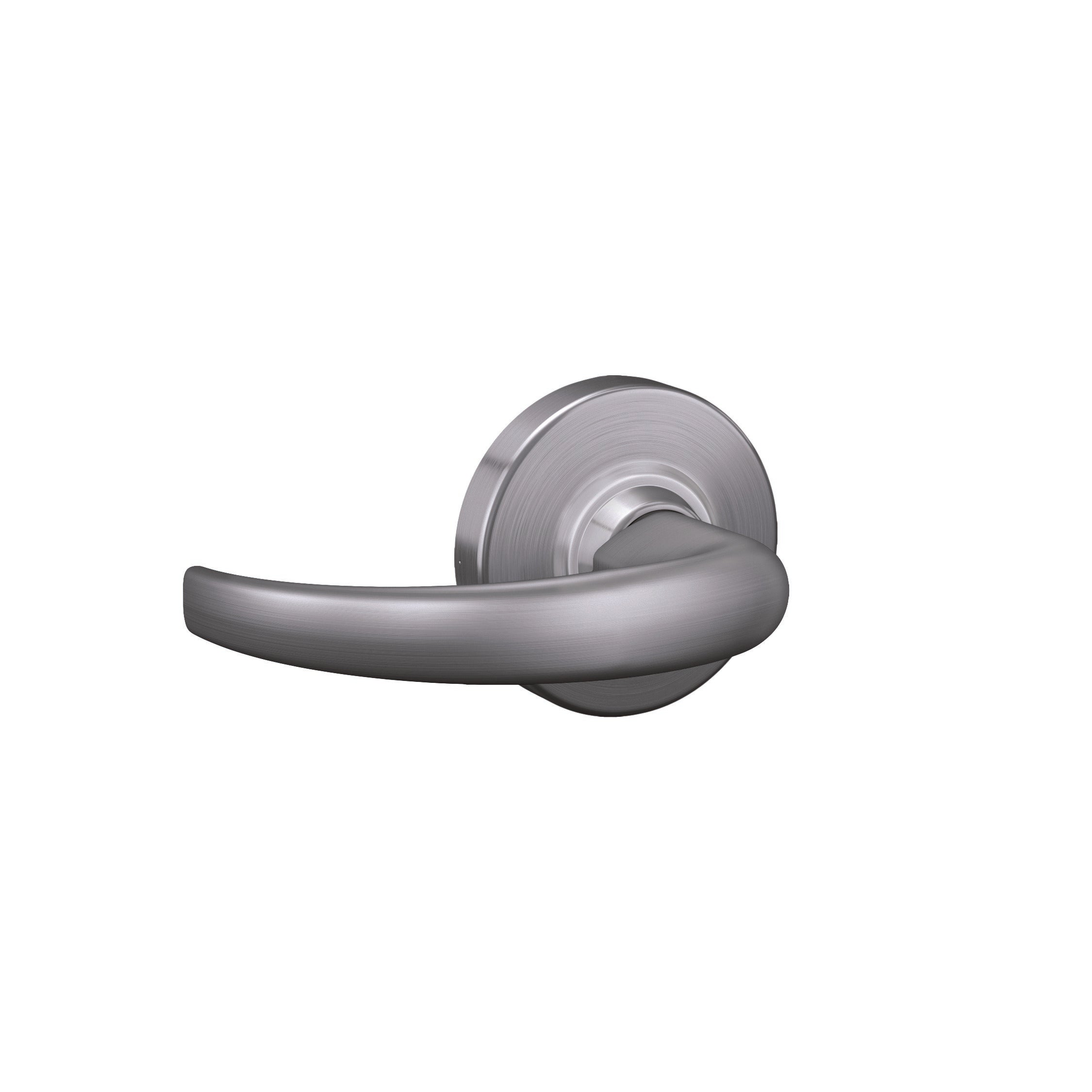

Schlage Commercial ALX10SPA626 Grade 2 Passage Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX10SPA626 is a Grade 2 passage lever lock from the ALX Series, fitted with the Sparta lever design and finished in satin chrome (626). Passage function means the lever operates freely from both sides without key or turn — suited for interior doors where access restriction is not required. The lock ships with a 2-3/4 inch spring latch and an ANSI strike plate, making it a complete, ready-to-install assembly. This hardware is installed by commercial finish carpenters, facility maintenance technicians, and licensed locksmiths working on light commercial, multi-family, or institutional interior door applications.

The ALX10SPA626 is designed for interior doors in commercial and multi-family settings where traffic flow must remain unrestricted. Typical installations include hallways, common-area doors, break rooms, and similar interior openings that do not require keyed entry or privacy locking. The included ANSI strike and spring latch reduce the need for additional hardware procurement on standard door preparations.

Key Features

• Grade 2 ANSI classification — suited for light commercial and multi-family interior applications
• Passage function — lever turns freely from both sides, no key required
• Sparta lever trim — contoured commercial lever profile in satin chrome finish
• Includes 2-3/4 inch spring latch (part 47267038) for standard door backsets
• Includes ANSI strike plate (part 47267101) for complete installation readiness
• Satin chrome (626) finish provides corrosion resistance for interior environments

Compatibility

Designed as an OEM-style replacement or new-installation passage lever for ALX Series Grade 2 commercial door hardware applications. Compatible with standard ANSI prep doors accepting a 2-3/4 inch spring latch.

Installation Notes

Installation is performed by a licensed locksmith, commercial carpenter, or qualified maintenance technician following the door manufacturer's preparation specifications and local building codes. Verify door thickness and backset before installation to confirm latch compatibility. No electrical disconnect is required for this purely mechanical lock. Follow ANSI A156.2 guidelines for proper installation of the strike plate and latch assembly.
