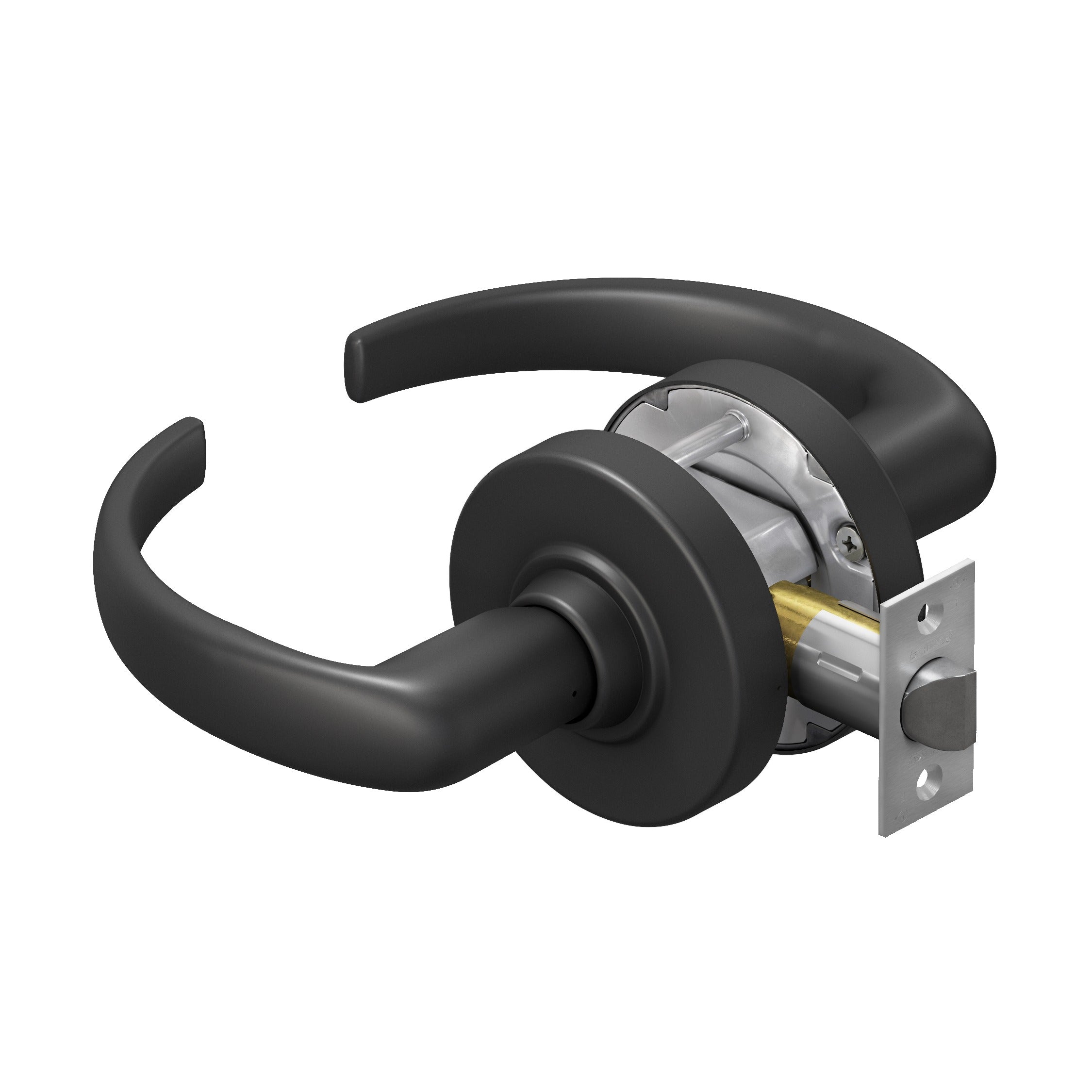

Schlage Commercial ALX10SPA622 Grade 2 Passage Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX10SPA622 is a Grade 2 passage lever lock from the ALX Series, featuring the Sparta lever design in a Matte Black finish. Passage function means the lever operates freely from both sides without a key or turn button, making it suited for interior doors that require traffic flow without access restriction. The lock ships with a 2-3/4 inch spring latch (part 47267038) and an ANSI strike (part 47267101). At 4.4 pounds, the ALX10SPA622 is a commercial-grade trim set intended for light commercial and institutional applications where ANSI/BHMA Grade 2 performance is specified.

This passage lever is designed for interior door applications in light commercial, multi-family, and institutional settings. Typical installation scenarios include office corridors, storage rooms, conference rooms, and other interior openings where free passage is required but a latchbolt is still needed to keep the door closed. The Sparta lever profile provides a contemporary look compatible with modern commercial interiors. The included spring latch and ANSI strike allow for a complete installation without sourcing additional hardware.

Key Features

• ANSI/BHMA Grade 2 passage function — lever turns freely from both sides with no locking mechanism
• Sparta lever design in Matte Black (622) finish
• Includes 2-3/4 inch spring latch (47267038) for standard door prep
• Includes ANSI strike (47267101) for complete installation
• ALX Series commercial trim construction
• Sold individually (each)

Compatibility

Designed as an OEM-style replacement or new-installation passage lever for standard commercial door preparations compatible with ANSI/BHMA Grade 2 cylindrical lock trim. Consult door prep specifications to confirm backset and bore diameter before ordering.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified commercial door hardware installer. Verify the door bore diameter and backset measurement match the latch included before beginning installation. Ensure the door is properly aligned and the latch operates freely before final fastener tightening. Follow applicable building and fire code requirements for door hardware in the intended occupancy type.
