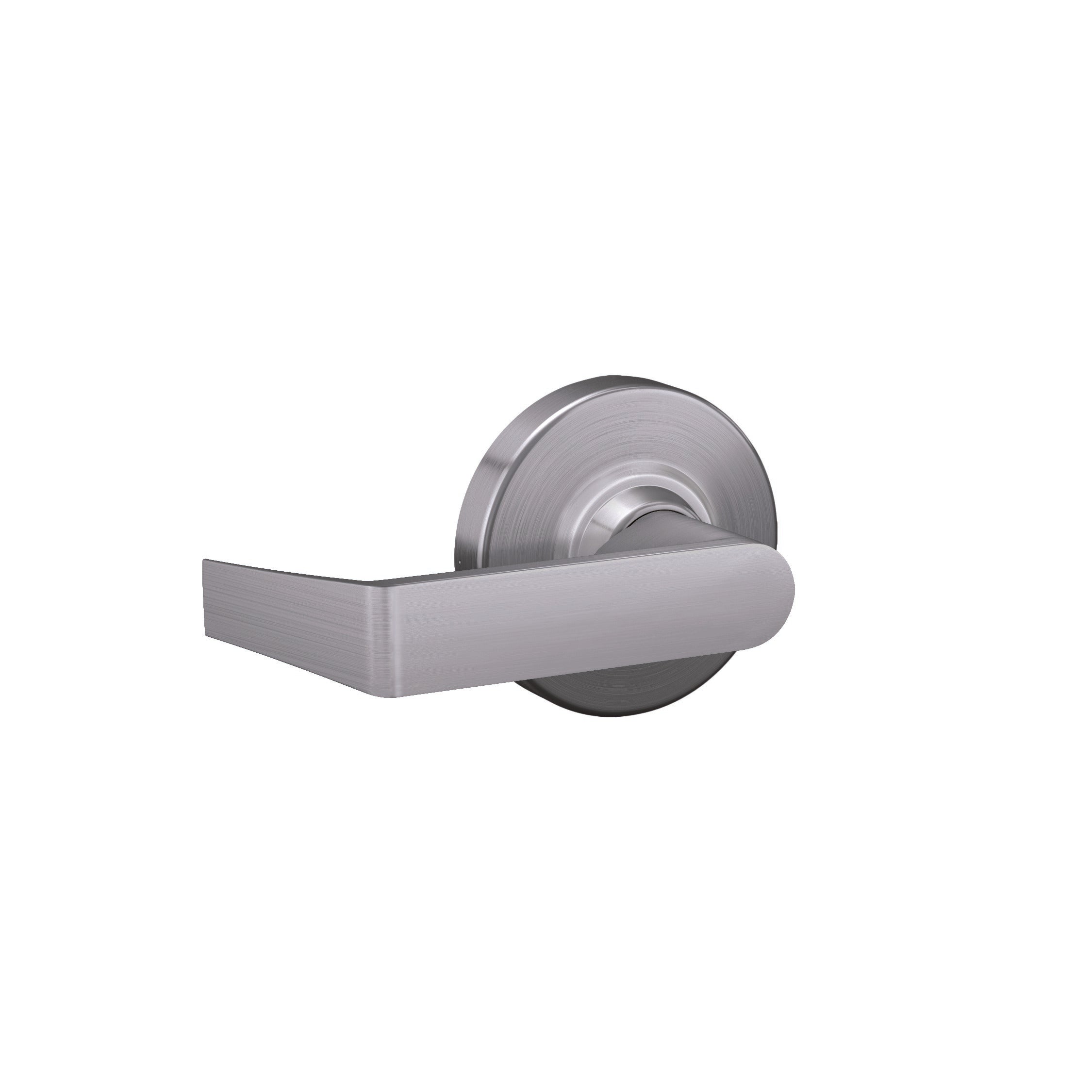

Schlage Commercial ALX10RHO626 Grade 2 Passage Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX10RHO626 is a Grade 2 passage lever lock from the ALX Series, finished in satin chrome. It is designed for interior passage applications where latching is required but no locking function is needed. The lock ships with a 2-3/4 inch spring latch and an ANSI-compliant strike plate. The Rhodes lever trim gives it a clean, traditional profile suited to commercial and light institutional interiors. Sold as an individual unit, this lock is typically specified and installed by commercial locksmiths or door hardware contractors during new construction or tenant improvement projects.

The ALX10RHO626 fits standard interior door applications in commercial, multi-family, and institutional settings. The passage function makes it appropriate for hallways, closets, and common-area doors where free egress is required at all times. The included spring latch measures 2-3/4 inches and the ANSI strike is included, reducing the need for separate hardware sourcing on standard door preps.

Key Features

• Grade 2 commercial duty rating for light to moderate traffic applications
• Passage function — lever operates freely from both sides, no key or turn required
• Rhodes lever design in satin chrome (626) finish
• Includes 2-3/4 inch spring latch (part 47267038) and ANSI strike (part 47267101)
• ALX Series platform designed for straightforward installation on standard door preps
• Sold individually; case quantity of 6 available for larger projects

Compatibility

Designed as an OEM-style replacement or new-installation passage lever for standard commercial interior doors prepared for ALX Series locksets. Includes ANSI strike compatible with standard door frames.

Installation Notes

Installation is performed by a licensed locksmith or qualified door hardware installer. Ensure the door is properly prepped with a standard cross-bore and edge-bore before fitting the lockset. Verify door thickness and backset compatibility before installation. Do not force the latch mechanism — confirm spring latch travel is unobstructed before securing the chassis.
