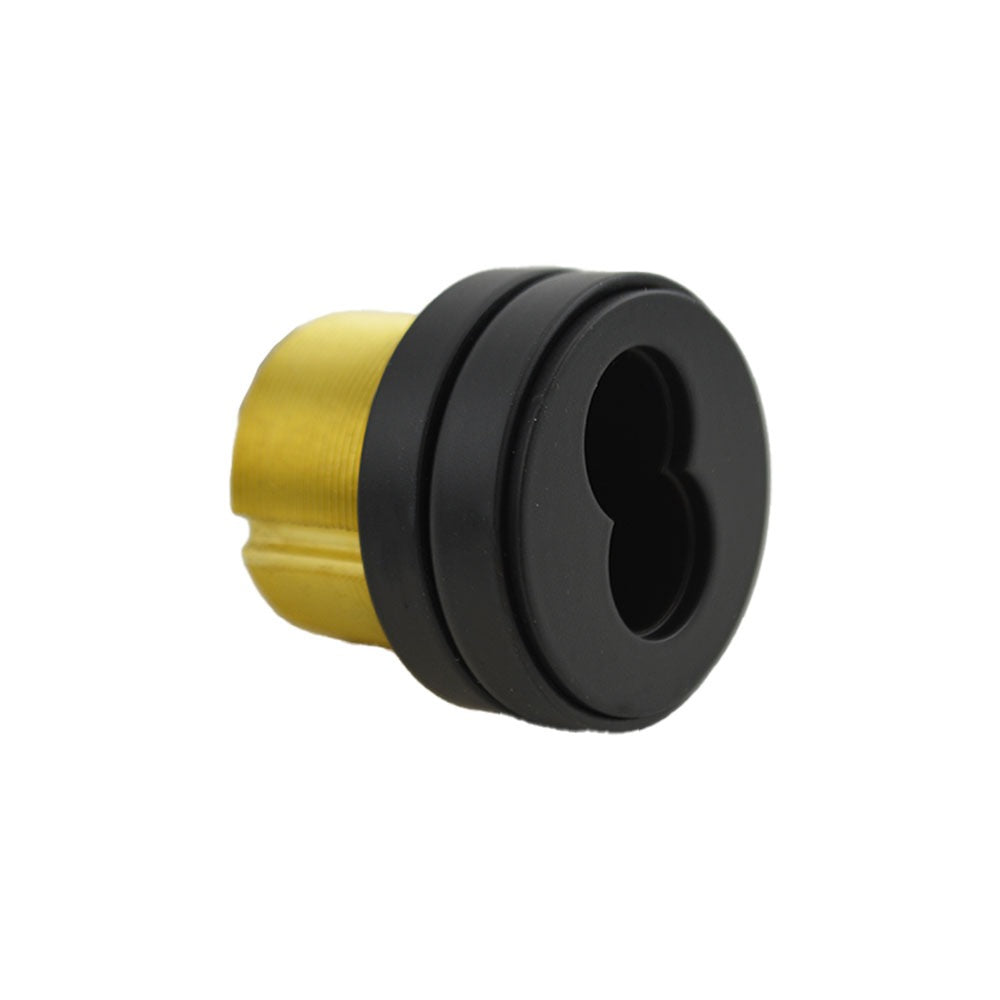

Schlage Commercial 80102622 Sfic Mortise Cylinder Housing

Product Description

The SCHLAGE COMMERCIAL 80102622 is a Small Format Interchangeable Core (SFIC) mortise cylinder housing supplied less core, designed for use in commercial and institutional door hardware applications. The housing includes a standard cam, a compression ring, and a 1/4 inch blocking ring, and ships in a matte black finish. This component allows facilities managers and locksmiths to install or re-core mortise cylinders without specialized tools, supporting key control programs that require frequent re-keying or core rotation across a large opening inventory.

This mortise cylinder housing is suited for commercial buildings, institutional facilities, multi-family properties, and any application where small format interchangeable core systems are already in use. The less-core configuration means the end user supplies the SFIC core separately, providing flexibility across different keying systems. It is typically installed by licensed locksmiths or commercial door hardware technicians during new construction, renovation, or re-keying projects.

Key Features

• Small Format Interchangeable Core (SFIC) design allows core removal and replacement without disassembling the lock
• Supplied less core for compatibility with existing SFIC key control programs
• Includes standard cam, compression ring, and 1/4 inch blocking ring
• Matte black finish for consistent aesthetic in commercial hardware specifications
• Compact form factor at 3.7 inches length, 2.28 inches width, and 1.57 inches height

Compatibility

Designed as an OEM-style replacement or new-installation housing for commercial mortise locksets that accept small format interchangeable core cylinders. No specific compatible model numbers were provided in the available product data.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with mortise cylinder applications. Ensure the door is secured and the lockset is fully depressurized before removing or installing the cylinder housing. Verify that the SFIC core used with this housing is sourced from the same key control system already deployed on the opening. Consult the door hardware manufacturer specifications and applicable building codes to confirm proper cam selection and cylinder protrusion for the mortise case in use.
