Schlage Commercial 80101625 Mortise Cylinder Housing

Product Description

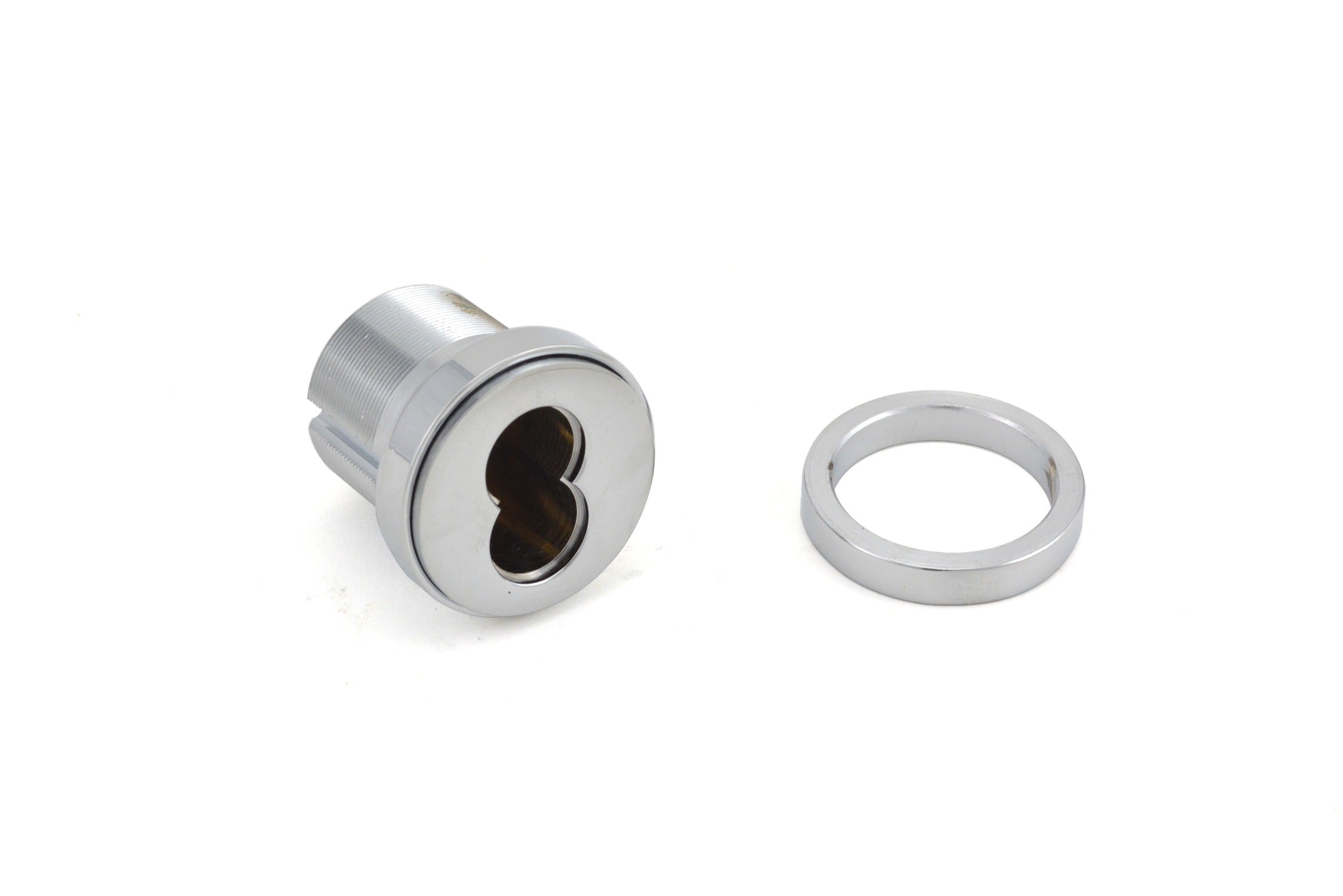

The SCHLAGE COMMERCIAL 80101625 is a small format interchangeable core (SFIC) mortise cylinder housing designed for commercial and institutional door hardware applications. Supplied less core, this housing accepts a standard small format interchangeable core, allowing facilities to re-key locks without removing the cylinder from the door. It ships with an L cam, a compression ring, and a 1/4 inch blocking ring. The bright chrome finish suits high-traffic commercial openings where durability and appearance both matter. Installation is handled by licensed locksmiths or commercial door hardware technicians.

This mortise cylinder housing is intended for use in commercial mortise locksets that support small format interchangeable core technology. The SFIC platform is common in institutional, healthcare, education, and government facilities where master-key systems and rapid re-keying are required. The housing is sold as a single unit and is compatible with mortise locks designed to accept SFIC cylinders with an L cam configuration.

Key Features

• Small format interchangeable core (SFIC) housing allows core swaps without removing the cylinder from the door
• Supplied less core — accepts a standard SFIC purchased separately
• Includes L cam, compression ring, and 1/4 inch blocking ring
• Bright chrome finish for high-traffic commercial openings
• Compact form factor at 3.4 x 2.3 x 1.7 inches
• Lightweight construction at 0.4 pounds

Compatibility

Designed as an OEM-style replacement or new-installation housing for commercial mortise locksets that support small format interchangeable core cylinders with an L cam configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with SFIC mortise cylinder systems. Power is not required for this mechanical component, but the door should be secured or removed from service during cylinder housing replacement. Verify that the existing mortise lock chassis accepts an L cam cylinder before installation. Consult applicable building and life-safety codes, including local fire egress requirements, when servicing hardware on rated assemblies.
