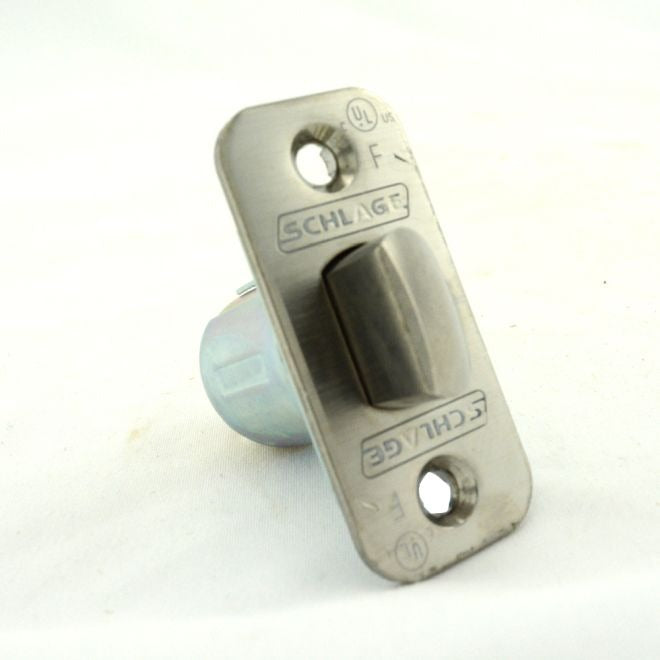

Schlage Commercial 47273622626 Restoring Spring Latch Satin Chrome

Product Description

The SCHLAGE COMMERCIAL 47273622626 is a restoring spring latch designed for commercial and institutional door hardware applications. It features a 2-3/8 inches backset and mounts with a 1 inch x 2-1/4 inch round corner faceplate finished in satin chrome. The latch mechanism uses a spring-loaded design that retracts on contact and restores automatically, providing reliable door closure and latching cycle after cycle. This component is installed by commercial locksmiths, door hardware specialists, and facilities maintenance technicians as part of a complete lockset assembly.

This latch is suited for commercial, multi-family, and institutional door applications where a standard 2-3/8 inches backset is required. The round corner faceplate integrates flush with the door edge for a clean, professional finish. The satin chrome finish coordinates with a wide range of commercial hardware trim. It ships as a single unit and is intended for use within an ALX Series lockset assembly.

Key Features

• 2-3/8 inches backset for standard commercial door prep
• Spring-loaded restoring latch for automatic bolt return
• 1 inch x 2-1/4 inch round corner faceplate for flush door edge mounting
• Satin chrome finish for corrosion resistance and hardware coordination
• Part of the ALX Series lockset platform

Compatibility

Designed as an OEM-style replacement latch for ALX Series commercial lockset assemblies requiring a 2-3/8 inches backset with a 1 inch x 2-1/4 inch round corner faceplate.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial lockset assemblies. Ensure the door is secured and the existing lockset is fully disassembled before replacing the latch unit. Verify door prep dimensions and backset measurement before installation to confirm fitment. Consult the ALX Series installation instructions for torque and alignment requirements specific to the full assembly.
