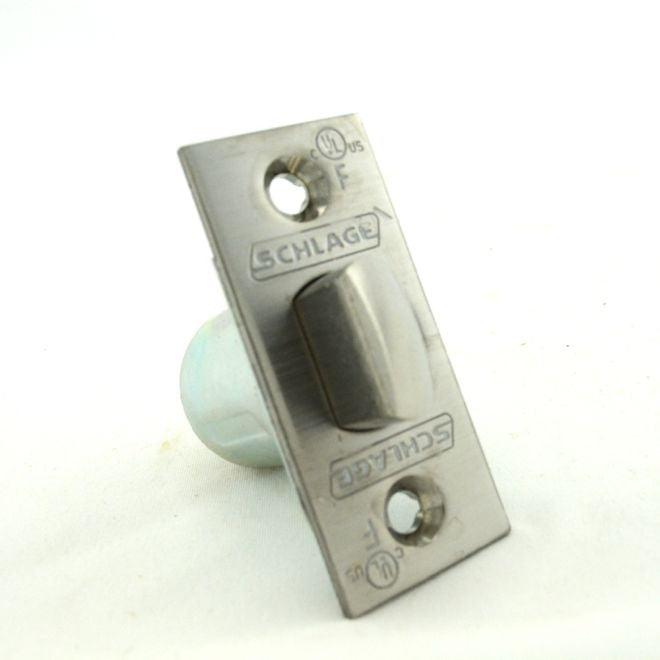

Schlage Commercial 47273621626 Restoring Spring Latch

Product Description

The SCHLAGE COMMERCIAL 47273621626 is a restoring spring latch designed for commercial and institutional door hardware applications. It features a 2-3/8 inches backset and mounts with a 1 inch by 2-1/4 inch square corner faceplate finished in satin chrome. The spring mechanism automatically returns the latch bolt to the extended position after each operation, maintaining positive door latching without manual reset. Locksmiths, commercial door hardware installers, and facility maintenance technicians typically handle installation of this component as part of a complete cylindrical or mortise lockset assembly.

This latch unit is suited for commercial, institutional, and multi-family door applications where a standard 2-3/8 inches backset geometry is required. The satin chrome finish coordinates with common commercial hardware finishes. The square corner faceplate seats flush into a standard door edge prep, making it appropriate for metal and solid-core wood door installations in offices, corridors, and common-area entries.

Key Features

• 2-3/8 inches backset for standard commercial door prep
• Restoring spring mechanism returns latch bolt automatically after each cycle
• 1 inch x 2-1/4 inch square corner faceplate for flush door edge mounting
• Satin chrome finish for corrosion resistance and finish compatibility
• Sold individually as a single unit replacement component

Compatibility

Designed as an OEM-style replacement latch for commercial cylindrical lockset assemblies requiring a 2-3/8 inches backset with a 1 inch by 2-1/4 inch square corner faceplate.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified door hardware technician. Remove all door hardware and ensure the door is secured in an open position before servicing the latch unit. Verify the door edge mortise dimensions match the faceplate size before installation. Follow applicable building and fire code requirements for commercial door latch hardware in your jurisdiction.
