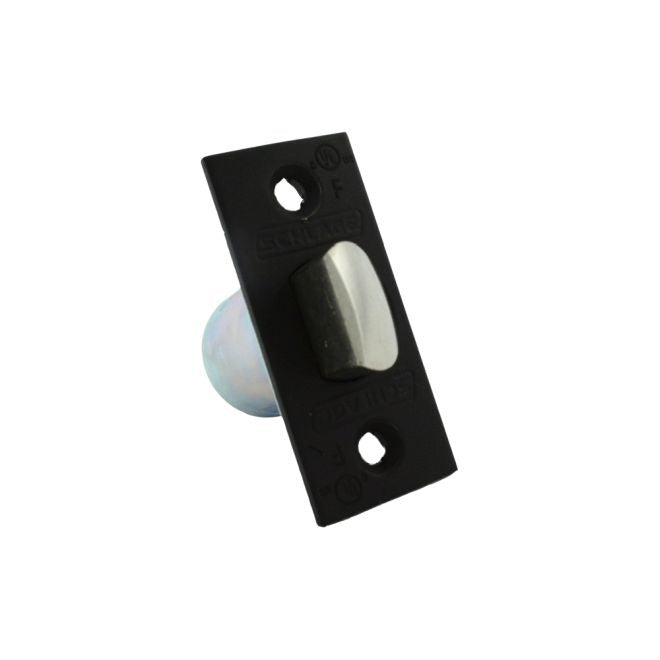

Schlage Commercial 47273621613 Spring Latch Oil Rubbed Bronze

Product Description

The SCHLAGE COMMERCIAL 47273621613 is a restoring spring latch designed for commercial and institutional door hardware applications. It features a 2-3/8 inches backset and ships with a 1 inch x 2-1/4 inches square corner faceplate finished in oil rubbed bronze. The spring mechanism returns the latch bolt to the extended position automatically after each actuation. This component is installed by commercial door hardware technicians and locksmiths as part of a complete lockset or cylindrical lock assembly.

This spring latch is suited for commercial, institutional, and multi-family residential door applications where a standard 2-3/8 inches backset is required. The square corner faceplate is appropriate for doors routed with a square corner mortise, which is common in commercial hollow metal and wood door construction. The oil rubbed bronze finish is consistent with ALX series hardware finishes for coordinated door hardware installations.

Key Features

• 2-3/8 inches backset for standard commercial door prep
• 1 inch x 2-1/4 inches square corner faceplate for hollow metal and commercial wood door compatibility
• Restoring spring mechanism returns latch bolt automatically after actuation
• Oil rubbed bronze finish coordinates with ALX series lockset hardware
• Sold as a single unit (EA)

Compatibility

Designed as an OEM-style replacement latch component for commercial cylindrical lockset assemblies requiring a 2-3/8 inches backset and square corner faceplate preparation.

Installation Notes

Installation is performed by a licensed locksmith or qualified commercial door hardware technician. Disengage the latch assembly from the lockset and ensure the door is held open or secured before servicing. Verify the door prep backset and corner type before installation to confirm correct fitment. Follow applicable building and fire codes when installing or replacing hardware on rated door assemblies.
