Schlage Commercial 47270197 Alx Series Bar and Driver

Product Description

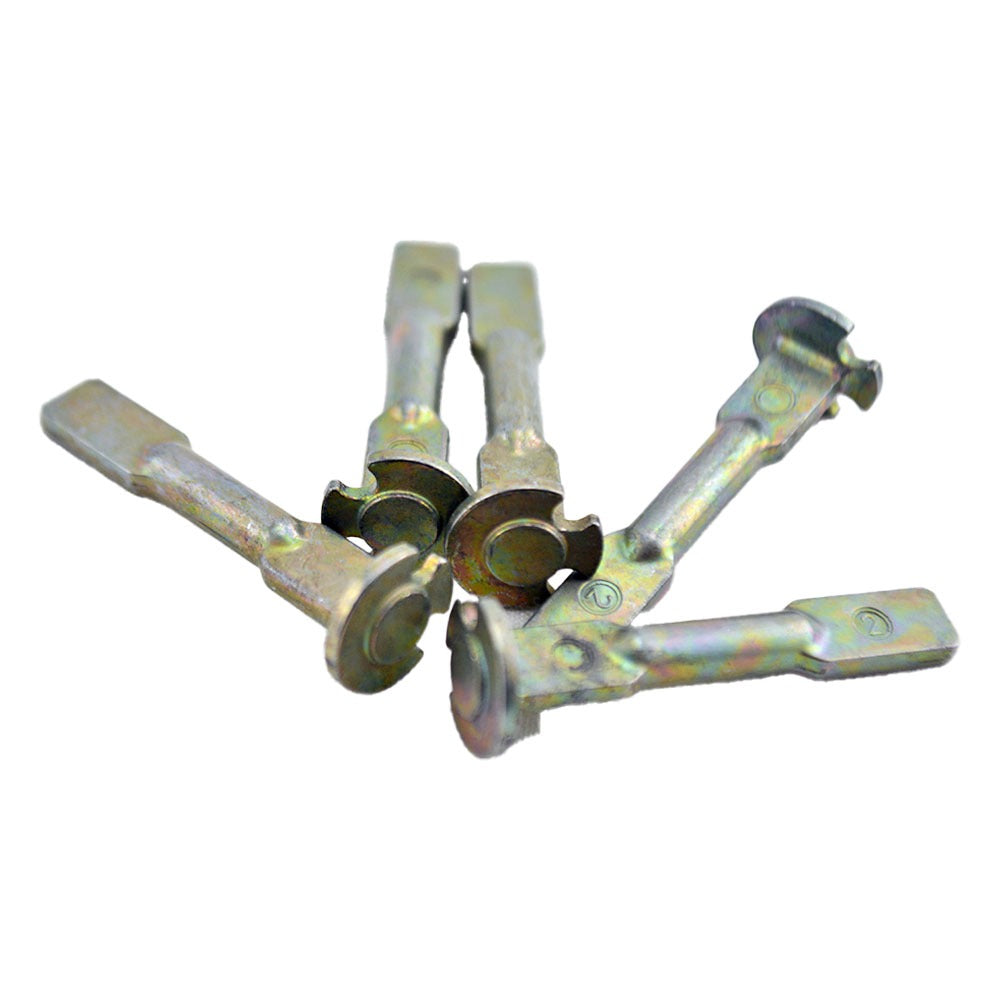

The SCHLAGE COMMERCIAL 47270197 is a bar and driver component engineered for use within the ALX Series lockset platform. This small but essential internal part transfers rotational motion from the knob or lever to the latch mechanism, enabling proper 70 Function operation. It is designed as a direct-fit replacement for technicians performing field service or repair on ALX Series cylindrical locksets. At 0.1 pounds, the component ships as a single unit and is sized at approximately 1.1 inches in length, 0.1 inches in width, and 0.2 inches in height.

This bar and driver is intended for commercial and institutional door hardware applications where ALX Series locksets are installed. The 70 Function designation indicates a specific latch operating configuration, making this part relevant to service calls involving malfunctioning or worn internal drive components. Locksmiths, commercial door hardware technicians, and facilities maintenance professionals are the primary installers of this type of internal lockset component.

Key Features

• Direct internal replacement component for ALX Series cylindrical locksets
• Supports 70 Function latch operation within the ALX platform
• Compact form factor: 1.1 inches long, 0.1 inches wide, 0.2 inches high
• Lightweight at 0.1 pounds — minimal shipping profile for service truck stock
• Sold individually as a single unit (EA)

Compatibility

Designed as an OEM-style internal replacement component for SCHLAGE COMMERCIAL ALX Series cylindrical locksets configured for the 70 Function. Verify function type and series designation on the existing hardware before ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Before disassembling the lockset, ensure the door is propped open or otherwise secured to prevent accidental latch engagement. Use manufacturer-approved tools for cylindrical lockset disassembly to avoid damaging the chassis or rose assembly. Refer to the ALX Series service documentation for correct bar and driver orientation and reassembly sequence.
