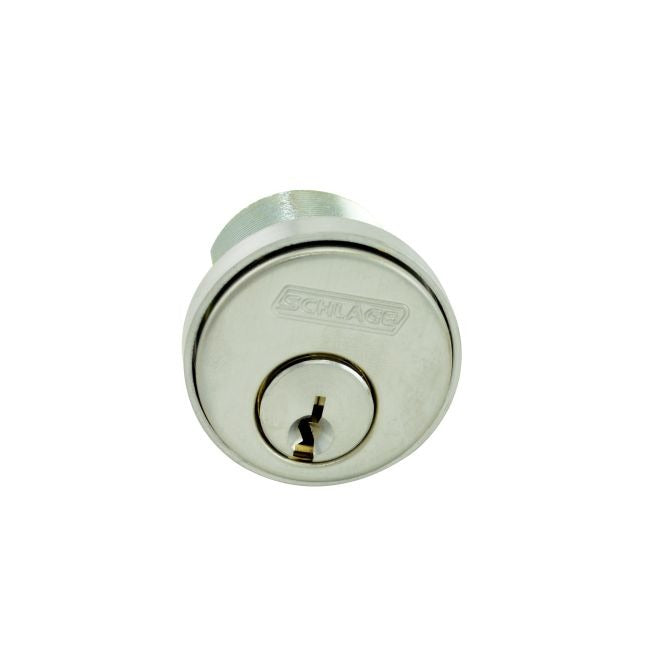

Schlage Commercial 30002C626114LH Hotel Mortise Cylinder

Product Description

The SCHLAGE COMMERCIAL 30002C626114LH is a left-hand hotel mortise cylinder designed for commercial and institutional door hardware applications. It features a C keyway configuration and ships keyed differently (KD), making it suited for master key systems where individual keying is handled on-site or by a locksmith. The cylinder includes a compression ring and spring for proper seating in the mortise lock body, along with an L cam for actuating the lock mechanism. The satin chrome (626) finish provides corrosion resistance and a clean appearance on commercial-grade hardware.

This cylinder is intended for hotel, commercial, and institutional door assemblies that use a standard mortise lock body accepting a 1-1/4 inch format cylinder. Left-hand designation applies to the door handing, so confirm door swing before ordering. The C keyway is a restricted keyway commonly used in commercial master key systems. Installation is typically performed by a licensed locksmith or commercial door hardware technician during new construction, renovation, or re-keying projects.

Key Features

• Left-hand orientation for proper cam alignment on left-handed door assemblies
• C keyway configuration compatible with commercial master key systems
• Keyed differently (KD) — each cylinder ships with its own unique key cut
• Includes compression ring and spring for secure mortise lock body seating
• L cam included for direct actuation of mortise lock bolt work
• Satin chrome (626) finish resists corrosion in high-traffic commercial environments

Compatibility

Designed as an OEM-style replacement or new-installation cylinder for commercial mortise lock bodies accepting a 1-1/4 inch cylinder format with an L cam drive.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Before servicing, ensure the door is secured in an open position and all associated access control or electrical hardware is powered down. Verify door handing and cam selection before final installation, as an incorrect cam or hand designation will prevent proper bolt actuation. Consult local building and fire codes for egress hardware requirements in commercial and institutional occupancies.
