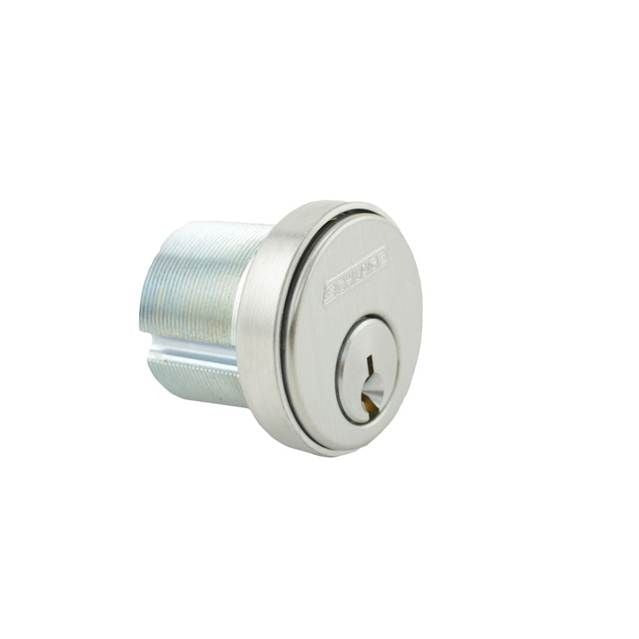

Schlage Commercial 30001FG626118 Mortise Cylinder Fg Keyway

Product Description

The SCHLAGE COMMERCIAL 30001FG626118 is a 1-1/8 inch mortise cylinder designed for commercial and institutional door hardware applications. It features an FG keyway, ships 0 bitted, and includes a compression ring, spring, and L cam for a complete installation-ready assembly. The satin chrome finish (626) provides corrosion resistance suited to high-traffic entryways. This cylinder is installed by licensed locksmiths and commercial door hardware technicians as part of a mortise lockset assembly in commercial buildings, schools, healthcare facilities, and multi-family properties.

This mortise cylinder is appropriate for commercial-grade mortise locksets where a standardized keyway and field-rekeying capability are required. The FG keyway is a widely used restricted keyway profile common in commercial master key systems. The 0 bitted configuration means the cylinder ships uncut, allowing the installing locksmith to cut keys to the required bitting on-site or at the shop. The included L cam, compression ring, and spring make this a complete drop-in cylinder replacement or new-installation component.

Key Features

• 1-1/8 inch cylinder length for standard commercial mortise lock bodies
• FG keyway profile compatible with commercial master key systems
• Ships 0 bitted for field keying flexibility
• Includes compression ring, spring, and L cam for complete installation
• Satin chrome (626) finish for durability in high-traffic commercial environments
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise lockset assemblies requiring a 1-1/8 inch cylinder with an FG keyway and L cam configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Ensure the door is secured and the lockset is fully disengaged before removing or installing the cylinder. Verify that the mortise lock body accepts a 1-1/8 inch cylinder and is compatible with the L cam included before installation. Local building and fire codes may govern hardware requirements on rated door assemblies.
