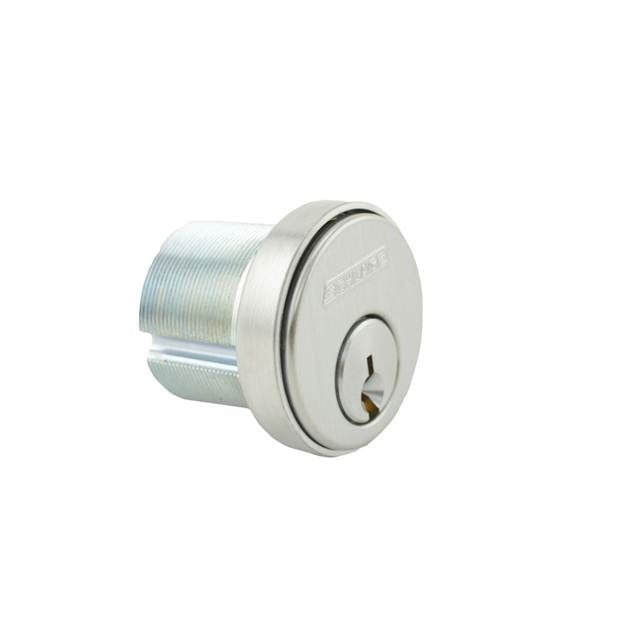

Schlage Commercial 30001F626118 Mortise Cylinder F Keyway

Product Description

The SCHLAGE COMMERCIAL 30001F626118 is a 1-1/8 inch mortise cylinder designed for commercial and institutional door hardware applications. It features an F keyway, ships 0 bitted (no keys cut), and includes a compression ring, spring, and L cam. The satin chrome finish provides a clean, professional appearance suited to commercial environments. This cylinder is installed by licensed locksmiths and commercial door hardware technicians as part of a complete mortise lockset assembly. At 0.4 pounds, it is a compact, single-unit replacement or new-installation component.

This mortise cylinder is appropriate for commercial, institutional, and multi-family residential applications where a standard F keyway mortise cylinder is specified. It is sold individually and is intended for use in mortise lock bodies that accept a standard-format cylinder with an L cam configuration. The 0 bitted designation means the cylinder ships without any key cuts applied, allowing a locksmith to pin and cut keys to the required key code on site.

Key Features

• 1-1/8 inch cylinder length for standard mortise lock body fitment
• F keyway for compatibility with F-series keyways in commercial keying systems
• 0 bitted — ships uncut, ready for on-site pinning and keying
• Includes compression ring, spring, and L cam for complete installation
• Satin chrome finish for a clean, corrosion-resistant appearance
• Sold as a single unit (EA)

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise lock bodies that accept a standard 1-1/8 inch F keyway cylinder with an L cam.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Before servicing any lock hardware, confirm the door is in a safe, open position and that access control or alarm systems tied to the door are properly managed. The cylinder is inserted into the mortise lock body and secured with the compression ring and spring; the L cam must be oriented correctly to engage the lock mechanism. Follow applicable local building codes and ADA requirements for commercial door hardware installations.
