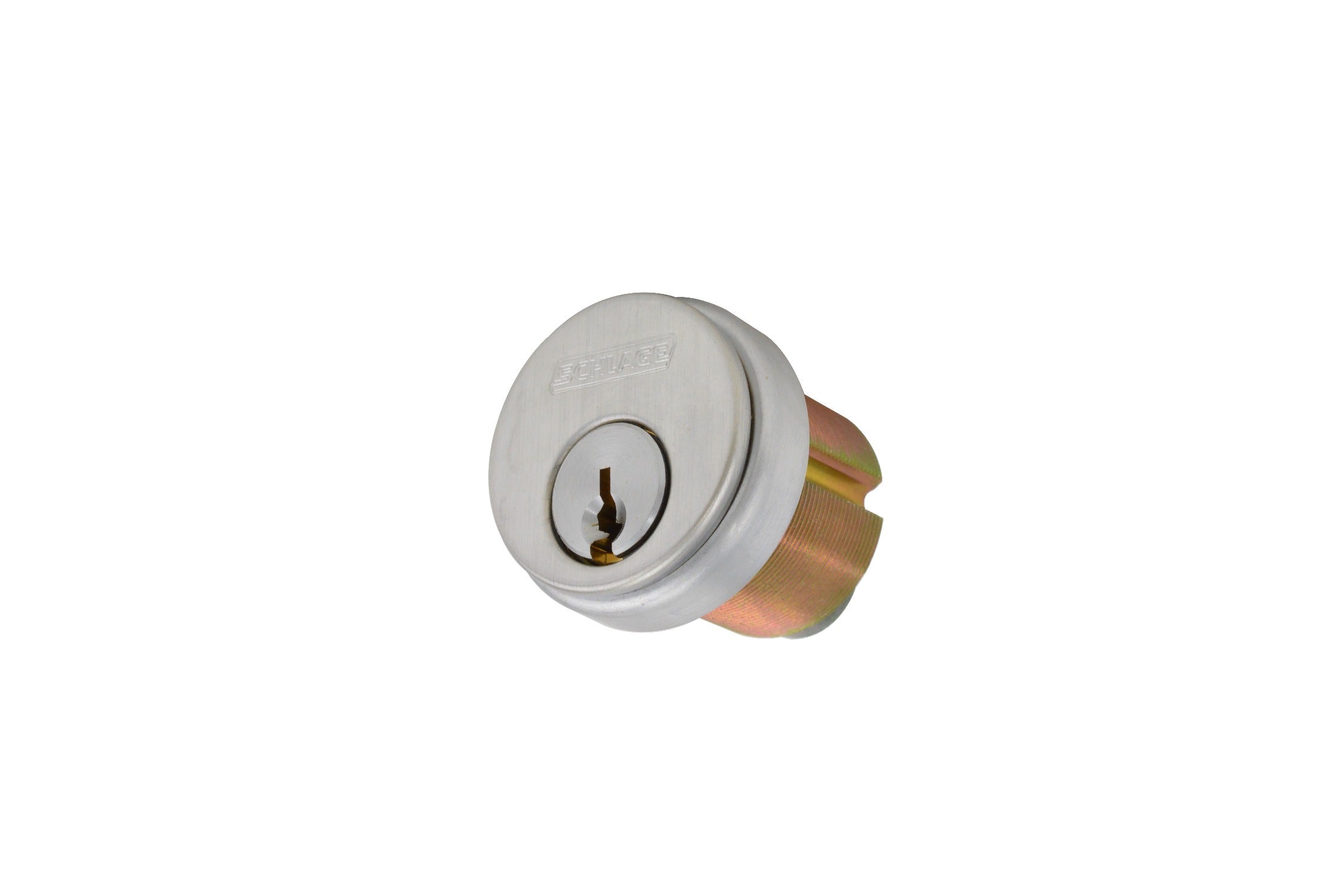

Schlage Commercial 30001E626138 Mortise Cylinder Satin Chrome

Product Description

The SCHLAGE COMMERCIAL 30001E626138 is a 1-3/8 inch mortise cylinder designed for commercial and institutional door hardware applications. It features an E keyway, 0 bitted configuration, and ships complete with a compression ring, spring, and L cam. The satin chrome finish provides a clean, professional appearance suited to commercial environments. This cylinder is installed by licensed locksmiths, commercial door hardware technicians, or qualified facilities maintenance personnel as part of a mortise lockset assembly. Weighing 0.45 pounds, it is a compact, single-unit component that slots directly into a mortise lock body.

This mortise cylinder is appropriate for commercial, institutional, and multi-family residential applications where mortise-style locksets are specified. It is suited for interior and exterior door hardware in office buildings, healthcare facilities, educational institutions, and similar settings. The E keyway is a widely used commercial keyway profile that supports key control and master key system integration. The included compression ring, spring, and L cam make this a ready-to-install replacement or new-installation cylinder without the need for additional hardware kits.

Key Features

• 1-3/8 inch cylinder length for standard commercial mortise lock applications
• E keyway configuration supports key control and master key system compatibility
• 0 bitted from the factory, allowing customization or keying to existing systems on-site
• Includes compression ring, spring, and L cam for complete, self-contained installation
• Satin chrome finish for a clean, durable appearance in commercial environments
• Single-unit (EA) packaging for straightforward procurement and inventory management

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise locksets accepting a standard 1-3/8 inch cylinder with an E keyway and L cam configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Before servicing, ensure the door is secured in an open position and any associated access control or electrified hardware is de-energized. The cylinder should be set to the correct cam orientation for the specific mortise lock body before final installation. Verify keyway and bitting compatibility with the existing key system before pinning or keying the cylinder.
