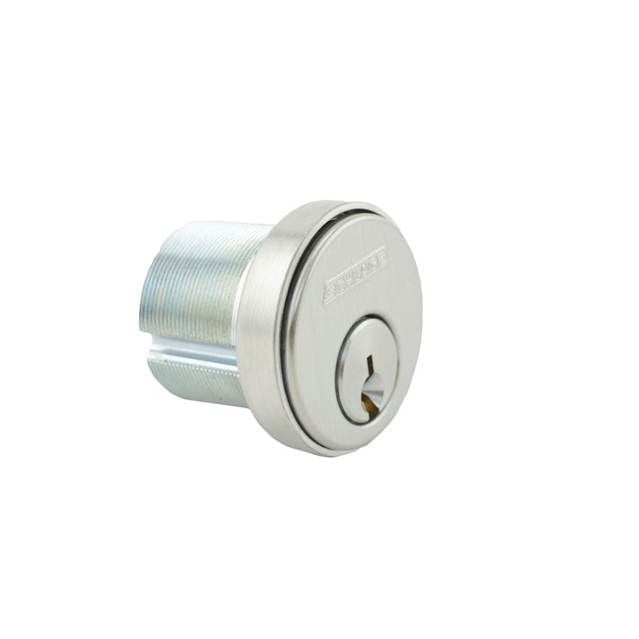

Schlage Commercial 30001E626118 Mortise Cylinder E Keyway

Product Description

The SCHLAGE COMMERCIAL 30001E626118 is a 1-1/8-inch mortise cylinder designed for commercial and institutional door hardware applications. It features an E keyway profile and ships 0 bitted, meaning it arrives without keys cut, allowing locksmiths and security contractors to key the cylinder to an existing master key system or cut keys to specification on-site. The cylinder includes a compression ring, spring, and L cam, providing the hardware needed for standard mortise lock body installation. At 0.3 pounds, it is a compact, purpose-built component intended for professional installation in commercial-grade locksets.

This mortise cylinder is suited for commercial, institutional, and multi-family residential door hardware where a mortise-style lockset is already in place or being installed. The 0-bitted configuration makes it appropriate for new construction, re-keying projects, or security upgrades where a locksmith will key the cylinder to match an existing system. The E keyway is a widely used keyway profile in commercial keying systems. The satin chrome finish suits standard commercial door hardware aesthetics in office, institutional, and light industrial environments.

Key Features

• 1-1/8-inch mortise cylinder length for standard commercial mortise lock bodies
• E keyway profile compatible with common commercial keying systems
• 0 bitted from factory — ready for field keying by a licensed locksmith
• Includes compression ring, spring, and L cam for complete installation
• Satin chrome finish for a clean, professional appearance
• Sold individually as a single unit replacement or new-install component

Compatibility

Designed as an OEM-style replacement or new-install mortise cylinder for commercial mortise locksets accepting a 1-1/8-inch E-keyway cylinder with an L cam configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Remove all tension from the door hardware and ensure the door is secured open before removing or installing the cylinder. The E keyway cylinder must be keyed by a qualified locksmith using appropriate key cutting and pinning equipment before the lock is placed in service. Follow all applicable local building and fire codes regarding door hardware in commercial and institutional occupancies.
