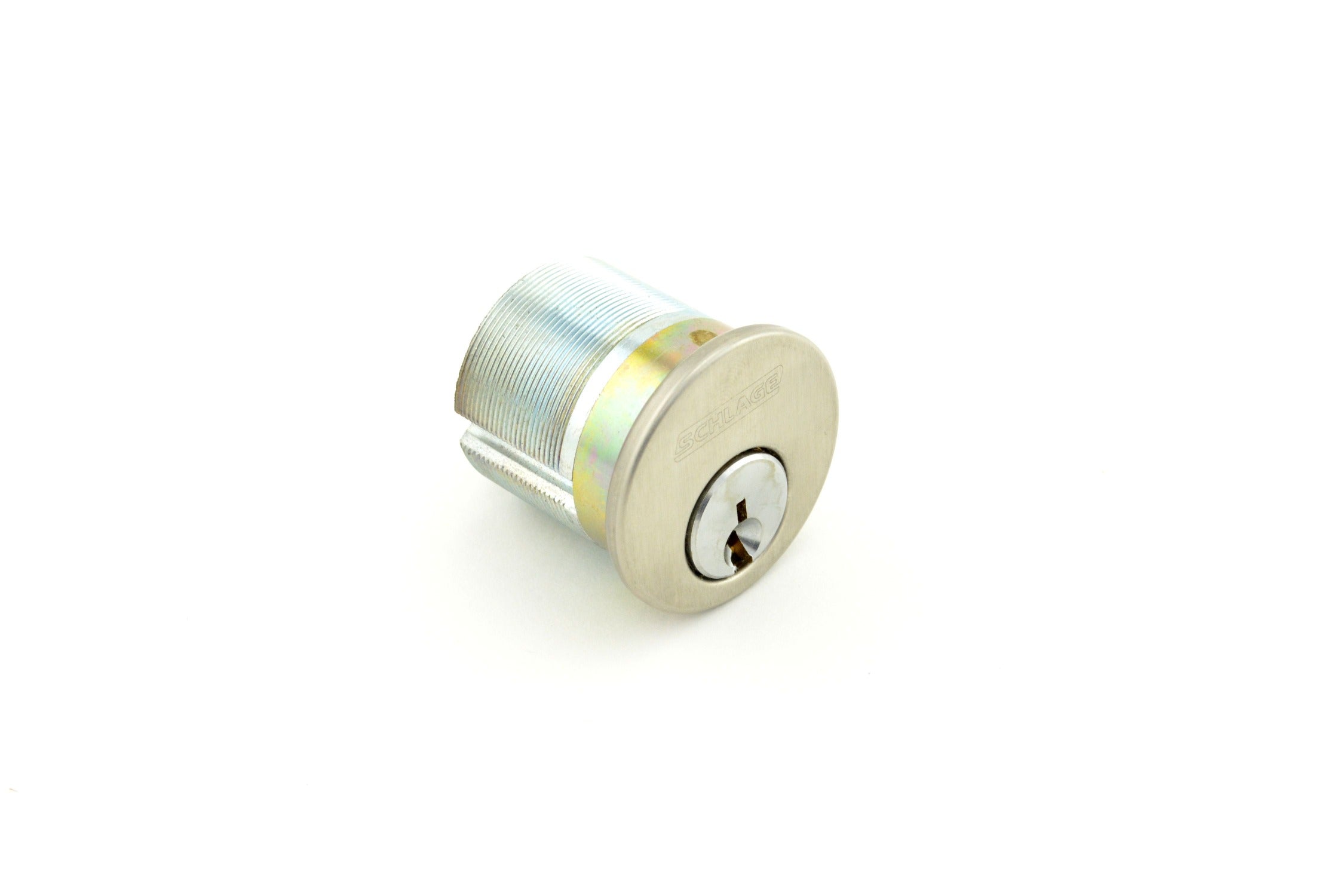

Schlage Commercial 30001E626114 Mortise Cylinder E Keyway

Product Description

The SCHLAGE COMMERCIAL 30001E626114 is a 1-1/4 inch mortise cylinder designed for commercial and institutional door hardware applications. It ships 0 bitted, meaning no keys are cut at the factory, allowing field keying or shop keying to a master key system. The cylinder features an E keyway and includes a compression ring, spring, and L cam. The satin chrome finish provides a clean, professional appearance suited to commercial interior and exterior doors. This cylinder is installed by licensed locksmiths and commercial door hardware technicians during new construction, renovation, or security rekeying projects.

Mortise cylinders of this type are used in commercial-grade mortise locksets, deadbolts, and exit devices where the cylinder is threaded into a mortise lock body. The 1-1/4 inch length is a common specification for standard commercial door preparations. The L cam configuration makes this cylinder compatible with mortise lock bodies that require an L-style cam drive. The 0-bitted configuration is preferred when the installer will key the cylinder on-site or incorporate it into a facility master key system.

Key Features

• 1-1/4 inch cylinder length fits standard commercial mortise lock preparations
• E keyway provides broad compatibility with commercial keying systems
• 0 bitted from factory — ready for field or shop keying to any master key system
• Includes compression ring, spring, and L cam for complete installation
• Satin chrome finish suitable for commercial interior and exterior applications
• Sold as a single unit for individual replacement or new installation

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise locksets, deadbolts, and exit devices that accept a 1-1/4 inch threaded mortise cylinder with an L cam configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with mortise lock systems. Verify that the door is in a secured, non-operational state before removing or installing the cylinder. Confirm the cam style and cylinder length match the mortise lock body before installation. Keying should be performed using appropriate pinning tools and in accordance with the facility key control policy.
