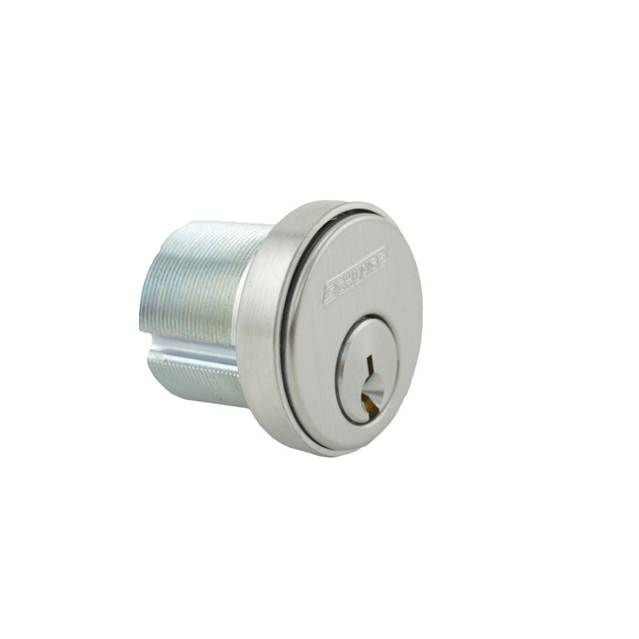

Schlage Commercial 30001C630114 Mortise Cylinder C Keyway

Product Description

The SCHLAGE COMMERCIAL 30001C630114 is a 1-1/4 inch mortise cylinder designed for commercial and institutional door hardware applications. It features a C keyway configuration and ships keyed different (KD), meaning each cylinder operates on its own unique key. The assembly includes a compression ring, spring, and L cam, providing a complete, ready-to-install unit. Finished in satin stainless steel (630), this cylinder is suited for high-traffic environments where corrosion resistance and long-term durability are required. Licensed locksmiths, commercial door hardware installers, and facilities maintenance technicians are the typical end users for this product.

This mortise cylinder is intended for use in commercial-grade mortise locksets where a cylindrical plug replacement or new installation is needed. It is appropriate for office buildings, institutional facilities, multi-family housing, and similar commercial applications. The C keyway is a widely used Schlage keyway profile compatible with standard C-keyway key blanks. The satin stainless steel finish coordinates with 630-finish hardware throughout a door schedule.

Key Features

• 1-1/4 inch mortise cylinder length for standard commercial door prep
• C keyway profile for compatibility with common key blank inventory
• Keyed different (KD) — each unit ships with its own unique key cuts
• Includes compression ring, spring, and L cam for complete installation
• Satin stainless steel (630) finish for corrosion resistance in high-use environments

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise locksets that accept a 1-1/4 inch C keyway cylinder with an L cam configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Remove all door hardware tension and ensure the door is inactive before beginning cylinder removal or installation. Verify cam orientation and cylinder length against the existing mortise lock body before final assembly. Local building and fire codes may govern keying requirements in egress and stairwell applications.
