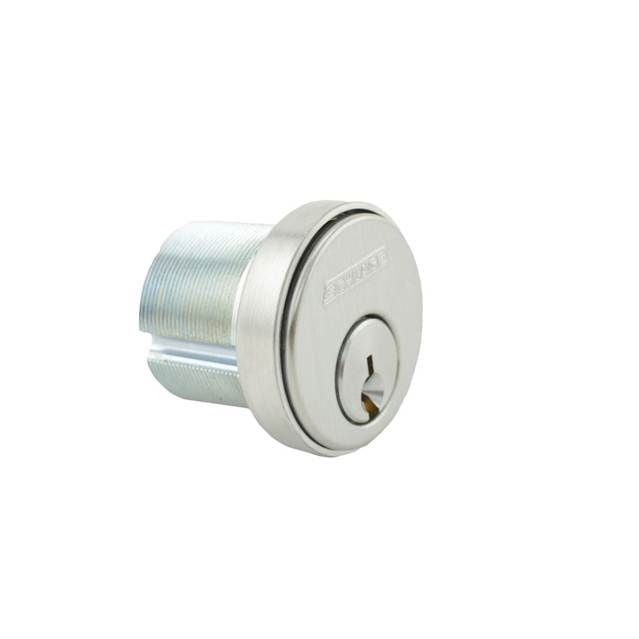

Schlage Commercial 30001C626138 Mortise Cylinder C Keyway

Product Description

The SCHLAGE COMMERCIAL 30001C626138 is a mortise cylinder designed for commercial and institutional door hardware applications. Built to the standard C keyway profile, this cylinder ships keyed different (KD) and includes a compression ring, spring, and L cam, giving installers a complete, ready-to-mount assembly. The satin chrome finish provides a clean, professional appearance consistent with commercial door hardware standards. At 1-3/8 inches in length, it fits the mortise lock body formats common in commercial entry doors. Licensed locksmiths and commercial door hardware installers handle this component as part of new installations or cylinder replacement work on mortise locksets.

This cylinder is suited for commercial, institutional, and multi-family applications where mortise locksets are the specified hardware. Typical install scenarios include office entry doors, corridor doors, and institutional facilities requiring rekeyable, keyed-different cylinder cores. The included L cam, compression ring, and spring make it compatible with standard mortise lock bodies that accept C keyway cylinders. The satin chrome finish coordinates with 626-series hardware finishes across a wide range of commercial door hardware lines.

Key Features

• C keyway profile for compatibility with standard commercial mortise lock bodies
• Keyed different (KD) — each cylinder ships with its own unique key cuts
• Includes compression ring, spring, and L cam for a complete drop-in assembly
• 1-3/8 inch cylinder length suits standard commercial mortise applications
• Satin chrome finish matches 626-designation commercial door hardware

Compatibility

Designed as an OEM-style replacement or new-installation cylinder for commercial mortise locksets that accept a C keyway cylinder with an L cam configuration.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified commercial door hardware technician. Before servicing the lock, ensure the door is secured in an open position and that any access control wiring tied to the lockset is de-energized. Follow the mortise lock body manufacturer's instructions for cylinder insertion depth and cam orientation. Local building codes and AHJ requirements may govern hardware specifications on rated egress doors.
