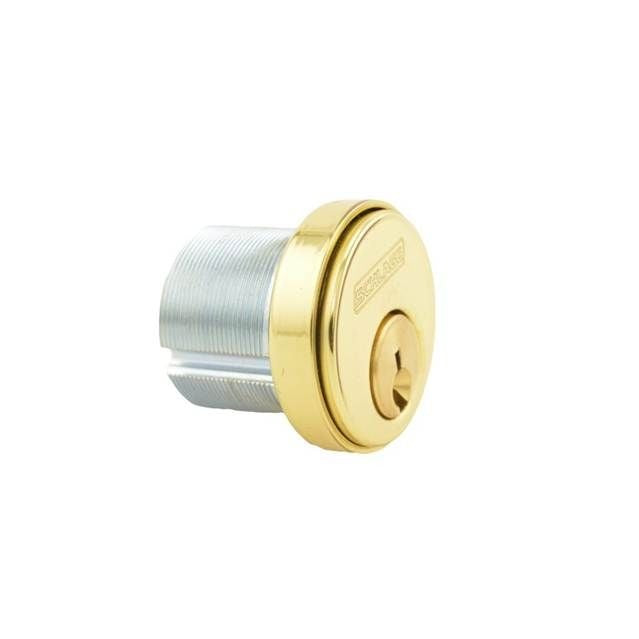

Schlage Commercial 30001C605118 Mortise Cylinder C Keyway

Product Description

The SCHLAGE COMMERCIAL 30001C605118 is a 1-1/8-inch mortise cylinder designed for commercial and institutional door hardware applications. It features a C keyway configuration, keyed different (KD) operation, and includes a compression ring, spring, and L cam as part of the assembly. The bright brass finish (605) provides a clean appearance suited to standard commercial hardware. This cylinder is installed by locksmiths and commercial door hardware technicians in mortise locksets where a field-replaceable cylinder core is required.

This mortise cylinder is suited for commercial, institutional, and multi-family residential door applications where C keyway mortise hardware is specified. It is sold as a single unit and fits into mortise lockset bodies that accept a standard 1-1/8-inch cylinder with an L cam configuration. The included compression ring and spring simplify installation and ensure proper seating within the lockset body.

Key Features

• 1-1/8-inch cylinder length for standard mortise lockset fitment
• C keyway for controlled key section compatibility
• Keyed different (KD) configuration — each unit ships with a unique key
• Includes compression ring, spring, and L cam for complete installation
• Bright brass 605 finish for standard commercial door hardware aesthetics
• Sold individually (single unit per order)

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise locksets that accept a 1-1/8-inch C keyway cylinder with an L cam drive.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician. The door must be in the open position and the lockset body should be accessible before inserting or removing the cylinder. Verify cam orientation and compression ring seating before securing the cylinder set screw. Applicable work should comply with local building codes and relevant fire-rated door assembly requirements where applicable.
