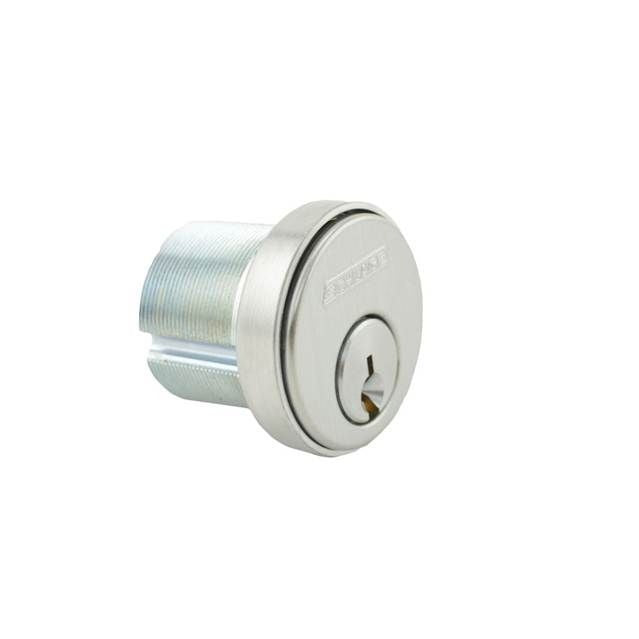

Schlage Commercial 30001C123626118 Mortise Cylinder C123

Product Description

The SCHLAGE COMMERCIAL 30001C123626118 is a 1-1/8 inch mortise cylinder designed for commercial and institutional door hardware applications. It features a C123 keyway, keyed different (KD) configuration, and includes a compression ring, spring, and L cam as part of the assembly. The finish is Satin Chrome, which provides corrosion resistance in high-traffic environments. This cylinder is installed by licensed locksmiths and commercial door hardware technicians in commercial, institutional, and multi-family building projects where mortise locksets require a replaceable or re-keyed cylinder core.

This mortise cylinder is suited for commercial and institutional buildings where mortise-style locksets are the standard hardware specification. Typical applications include office buildings, schools, hospitals, and multi-family residential properties that use mortise locks requiring a standard C123 keyway cylinder. The keyed different configuration means each cylinder ships with its own unique key, appropriate for installations where individual keying is required rather than a master key system.

Key Features

• C123 keyway for compatibility with standard commercial mortise lockset systems
• Keyed different (KD) configuration — each unit ships with a unique key cut
• Includes compression ring, spring, and L cam for complete drop-in installation
• Satin Chrome finish for durability and clean appearance in commercial environments
• 1-1/8 inch cylinder length suited for standard commercial door thickness applications

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise locksets that accept a standard 1-1/8 inch cylinder with a C123 keyway and L cam configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Remove all tension from the lockset and ensure the door is held open before removing or inserting the cylinder. Verify that the L cam orientation aligns correctly with the lockset chassis before fully seating the cylinder. Local building codes and accessibility standards may apply for commercial door hardware replacements.
