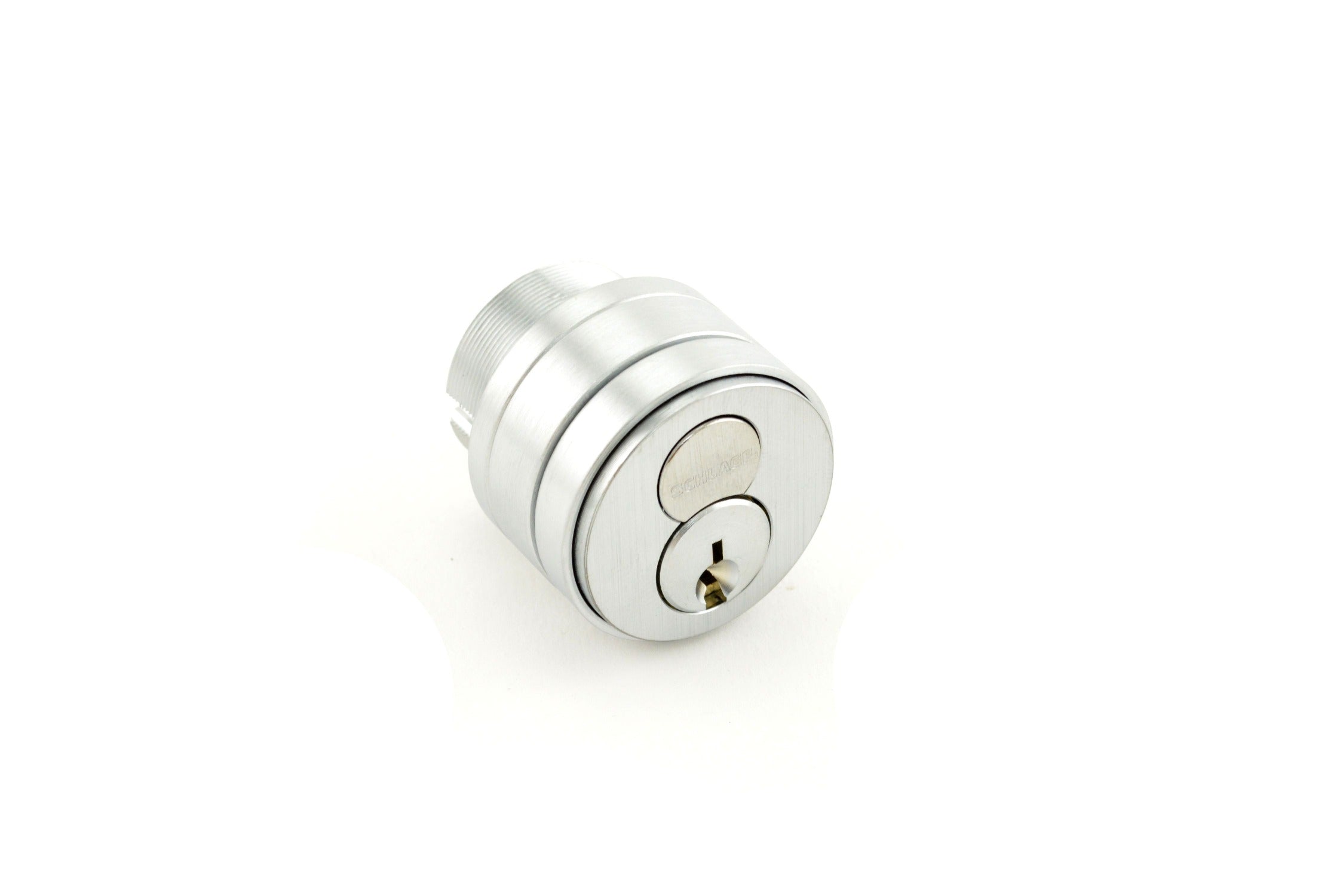

Schlage Commercial 20062C626 Mortise Cylinder C Keyway

Product Description

The SCHLAGE COMMERCIAL 20062C626 is a large format interchangeable core (LFIC) mortise cylinder designed for commercial and institutional door hardware applications. It features a C keyway and ships 1 bitted, meaning the cylinder arrives pre-keyed from the factory. The assembly includes a compression ring, a spring, 3/16-inch and 3/8-inch blocking rings, and an Adams Rite cam, making it ready for installation in Adams Rite-compatible mortise locksets. The satin chrome finish provides a clean, low-reflectance appearance suited to commercial environments. Licensed locksmiths, commercial hardware installers, and facility maintenance technicians are the primary installers of this cylinder.

This mortise cylinder is intended for commercial, institutional, and multi-family door hardware installations where large format interchangeable core architecture is already in use or being introduced. LFIC systems allow cores to be swapped without removing the cylinder from the door, which is a significant operational advantage in master-key or rekeying programs across facilities. The Adams Rite cam configuration makes this cylinder compatible with Adams Rite-style mortise locks commonly found in aluminum storefront doors and commercial entry applications.

Key Features

• Large format interchangeable core design allows core removal without disassembling the lockset
• C keyway provides a defined key-control profile for restricted key duplication
• Ships 1 bitted for immediate keyed use or integration into an existing key system
• Includes compression ring, spring, 3/16-inch blocking ring, and 3/8-inch blocking ring for proper cylinder fitment
• Adams Rite cam included for compatibility with Adams Rite mortise lock bodies
• Satin chrome (626) finish suits standard commercial hardware finishes

Compatibility

Designed for use with Adams Rite-style mortise locksets that accept large format interchangeable core mortise cylinders. The included blocking rings (3/16 inch and 3/8 inch) allow fitment adjustment for varying door and chassis configurations.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with LFIC cylinder systems. Ensure the mortise lock body is fully de-energized or that no access control power is present before cylinder work begins. Verify the correct blocking ring thickness for the specific mortise chassis before finalizing installation. LFIC cylinder installation and keying should comply with applicable building security and life-safety codes for the jurisdiction.
