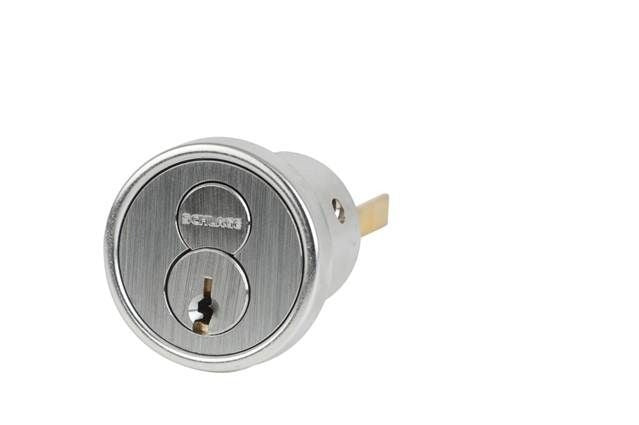

Schlage Commercial 20057C123626 Lfic Rim Cylinder C123 Satin Chrome

Product Description

The SCHLAGE COMMERCIAL 20057C123626 is a Large Format Interchangeable Core (LFIC) rim cylinder designed for commercial and institutional door hardware applications. It features the C123 keyway and ships 1-bitted with a convertible tailpiece, allowing installation in both new construction and retrofit rim exit device applications. The satin chrome finish provides a clean, professional appearance suited to high-traffic commercial environments. The convertible tailpiece accommodates a range of rim exit devices, giving locksmiths and security integrators flexibility during installation and core changeovers without disassembling the lock hardware from the door.

This rim cylinder is intended for commercial, institutional, and multi-family applications where large format interchangeable core systems are specified. LFIC architecture allows authorized personnel to swap cores using a control key, reducing rekeying labor and downtime across large facilities. Typical installations include rim-mounted exit devices on stairwell doors, corridor doors, and other life-safety egress points in schools, healthcare facilities, office buildings, and government installations.

Key Features

• Large Format Interchangeable Core design allows core removal and replacement with a control key — no disassembly required
• C123 keyway provides restricted key control for commercial master key systems
• Ships 1-bitted, ready for bitting to specification by a licensed locksmith
• Convertible tailpiece compatible with a wide range of rim exit devices
• Satin chrome finish suitable for standard commercial hardware sets
• Compact form factor: 3.8 inches long, 2 inches wide, 1.7 inches tall

Compatibility

Designed as an OEM-style replacement or new-installation LFIC rim cylinder for commercial exit devices and door hardware assemblies that accept large format interchangeable cores with a convertible tailpiece configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with LFIC systems. Ensure the exit device and rim cylinder are compatible in tailpiece orientation and throw length before installation. Secure the building opening and verify the door is in a safe, controlled state before removing or installing any cylinder. Bitting and key control operations should follow the applicable master key system specifications on file for the facility.
