Schlage Commercial 20022FG626 Rim Cylinder Satin Chrome

Product Description

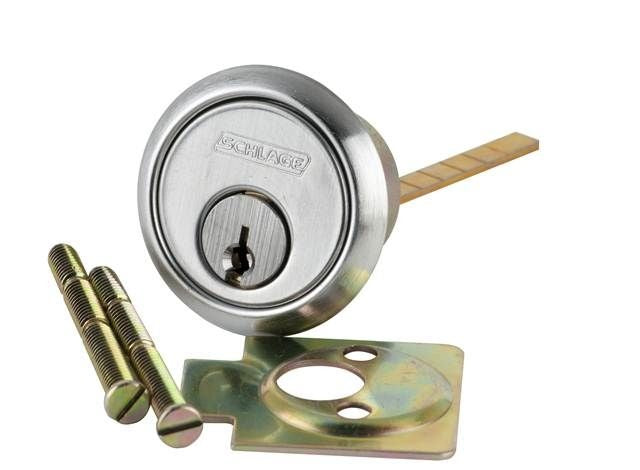

The SCHLAGE COMMERCIAL 20022FG626 is a conventional rim cylinder designed for commercial and institutional door hardware applications. It ships 0 bitted, meaning it arrives without keys cut, allowing locksmiths and security professionals to key it to an existing system or masterkey hierarchy on site. The cylinder features an FG keyway and a horizontal tailpiece configuration, and it ships in a satin chrome finish. At 0.6 pounds and compact in profile, this cylinder is a straightforward component in high-traffic door assemblies where rim-mounted exit hardware requires a keyed cylinder insert.

This rim cylinder is suited for commercial buildings, institutional facilities, and multi-family properties where rim exit devices require a keyed cylinder. The 0 bitted configuration makes it practical for facilities managers and locksmiths who need to integrate the cylinder into an existing masterkey or construction keying program. The horizontal tailpiece engages the retractor on compatible rim exit hardware. Installation is typically performed by a licensed locksmith or commercial door hardware technician.

Key Features

• Conventional rim cylinder with horizontal tailpiece for use with rim exit devices
• FG keyway for controlled key duplication and system integration
• Ships 0 bitted for field keying or inclusion in a masterkey system
• Satin chrome finish for a clean, corrosion-resistant appearance in commercial environments
• Compact form factor at 3.2 x 1.9 x 1.2 inches and 0.6 pounds

Compatibility

Designed as an OEM-style replacement or new-installation rim cylinder for commercial rim exit devices that accept a conventional rim cylinder with a horizontal tailpiece and FG keyway.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with rim exit device assemblies. Disengage and secure the door before removing or installing a rim cylinder. Verify that the horizontal tailpiece length and orientation align with the exit device retractor before completing installation. Local building and fire codes may govern keying requirements on egress hardware.
