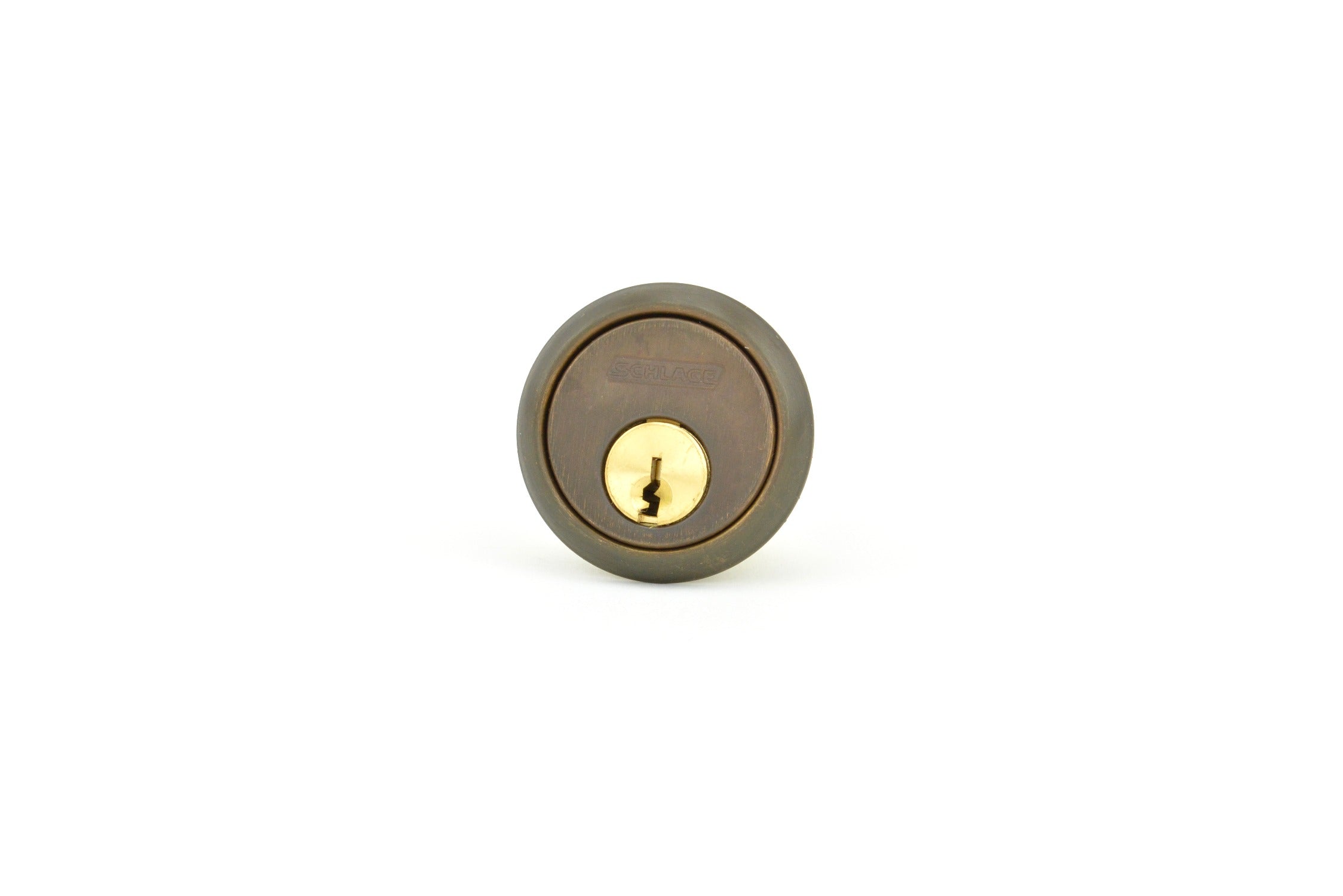

Schlage Commercial 20022E613 Rim Cylinder E Keyway

Product Description

The SCHLAGE COMMERCIAL 20022E613 is a conventional rim cylinder designed for commercial and institutional door hardware applications. It features an E keyway, ships 0 bitted for field keying flexibility, and includes a horizontal tailpiece for compatibility with rim exit devices. The oil rubbed bronze finish provides a dark, matte appearance suited to period or commercial architectural hardware. This cylinder is installed by licensed locksmiths and commercial door hardware technicians as part of a keyed locking system on rim-mounted exit devices or surface-applied locks.

This rim cylinder is appropriate for commercial buildings, institutional facilities, multi-family properties, and any application requiring a rim exit device cylinder. The 0 bitted configuration means the cylinder ships without cuts, allowing the installing locksmith to key it to a master key system or standalone key on site. The horizontal tailpiece drives the exit device retraction mechanism when the correct key is turned.

Key Features

• E keyway for compatibility with standard Schlage commercial keyways
• 0 bitted — ships uncut for field keying or master key system integration
• Horizontal tailpiece for use with rim exit devices and surface-mounted hardware
• Oil rubbed bronze finish for architectural consistency in commercial environments
• Sold as a single unit (EA), suitable for individual door or keying projects

Compatibility

Designed as an OEM-style replacement or new-installation rim cylinder for commercial rim exit devices and surface-applied locking hardware accepting a conventional rim cylinder with a horizontal tailpiece and E keyway.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Confirm the exit device or surface lock accepts a standard rim cylinder with a horizontal tailpiece orientation before installation. Disconnect power to any electrified hardware in the door assembly before beginning work. Verify keyway compatibility with the existing master key system prior to ordering cuts.
