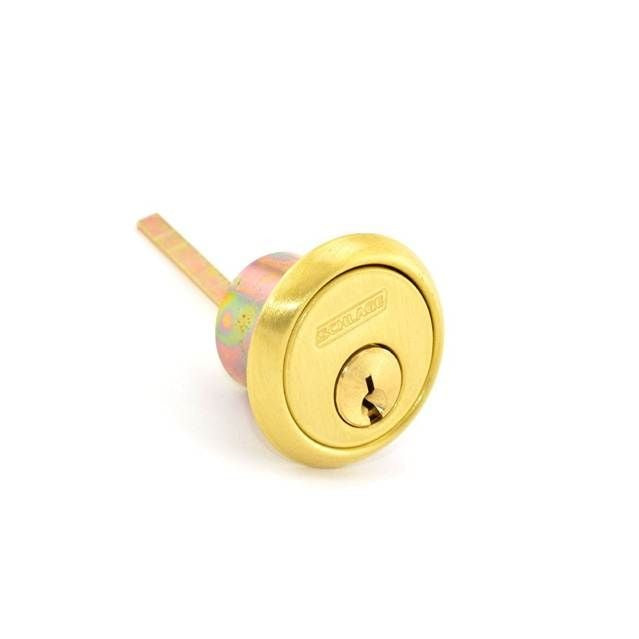

Schlage Commercial 20022C606 Rim Cylinder C Keyway Satin Brass

Product Description

The SCHLAGE COMMERCIAL 20022C606 is a conventional rim cylinder designed for commercial and institutional door hardware applications. It features a C keyway configuration, keyed different (KD) operation, and a horizontal tailpiece for compatibility with rim-type exit devices and surface-mounted locksets. The cylinder ships in a satin brass (606) finish, providing corrosion resistance suited to interior commercial environments. Measuring 3.8 inches in length, 2 inches in width, and 1.8 inches in height, the 20022C606 is a compact, drop-in component installed by licensed locksmiths and commercial door hardware technicians.

This rim cylinder is appropriate for commercial, institutional, and multi-family building applications where rim exit devices or surface-mounted hardware require a dedicated key cylinder. The C keyway restricts key duplication to authorized sources, making it a common choice for access control on office doors, stairwell exits, and utility rooms. The keyed different configuration means each cylinder ships with its own unique key cuts, suitable for applications where master keying is not required at the time of order.

Key Features

• C keyway with keyed different (KD) operation for standard commercial access control
• Horizontal tailpiece for direct compatibility with rim-mounted exit devices and locksets
• Satin brass (606) finish for interior commercial aesthetics and corrosion resistance
• Compact form factor: 3.8 inches x 2 inches x 1.8 inches
• Lightweight construction at 0.5 pounds for easy handling and installation
• Sold individually (each) for single-door or spot-replacement jobs

Compatibility

Designed as an OEM-style replacement rim cylinder for commercial and institutional door hardware applications requiring a C keyway and horizontal tailpiece configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Disengage the latch or exit device and remove all tension from the existing cylinder before removal. Verify that the horizontal tailpiece length and orientation align with the rim device cam before seating the replacement cylinder. Follow applicable building codes and the door hardware manufacturer guidelines when servicing exit device components in commercial or institutional occupancies.
