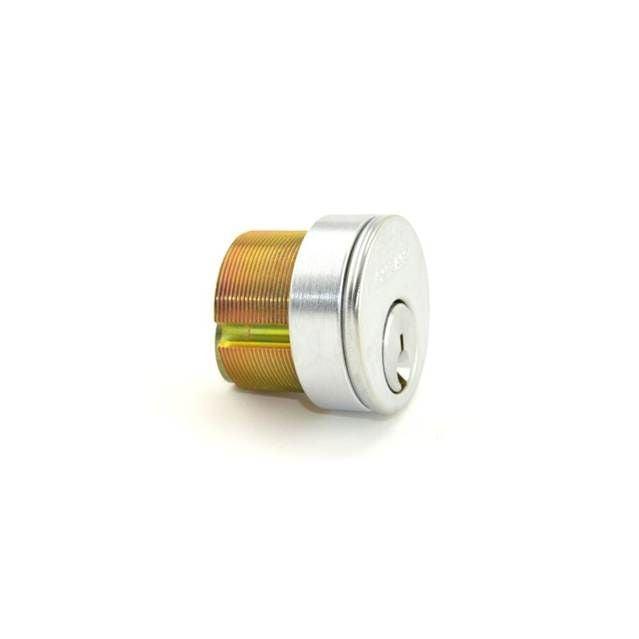

Schlage Commercial 20013C626118 Mortise Cylinder Satin Chrome

Product Description

The SCHLAGE COMMERCIAL 20013C626118 is a conventional mortise cylinder designed for commercial and institutional door hardware applications. It features a 1-1/8 inch length, a C keyway configuration, and ships keyed different (KD), meaning each cylinder operates on its own unique key. The cylinder includes a 3/8 inch blocking ring and is fitted with an Adams Rite cam, making it suitable for use with Adams Rite-style mortise locks and latch mechanisms. The satin chrome finish provides a clean, professional appearance consistent with commercial hardware standards. Licensed locksmiths and commercial door hardware installers are the primary tradespeople for this product.

This mortise cylinder is intended for commercial, institutional, and multi-family door hardware installations where an Adams Rite cam is required. The C keyway is a widely used commercial keyway, compatible with standard C keyway key blanks. The keyed different configuration means each cylinder supplied is individually keyed and does not share a key with other cylinders in the order. The satin chrome (626) finish is a standard commercial finish that blends with a broad range of door hardware. This cylinder fits mortise lock bodies designed to accept a standard threaded mortise cylinder with a blocking ring.

Key Features

• 1-1/8 inch cylinder length for standard commercial mortise lock applications
• C keyway provides broad compatibility with commercial keying systems
• Keyed different (KD) — each cylinder ships with its own unique key
• Includes 3/8 inch blocking ring for secure cylinder seating in the mortise lock body
• Adams Rite cam configuration for use with Adams Rite mortise locks and latches
• Satin chrome (626) finish for a consistent, professional commercial appearance

Compatibility

Designed for use with mortise lock bodies that accept a conventional threaded mortise cylinder with an Adams Rite cam. Suitable for commercial and institutional door hardware applications requiring a C keyway cylinder with a 3/8 inch blocking ring.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Ensure the door and mortise lock body are compatible with this cylinder length and cam type before installation. Verify that the door is secured open or the latch is held retracted before removing or installing the cylinder to prevent accidental lockout. Follow applicable local building codes and hardware manufacturer instructions for cylinder installation and keying procedures.
