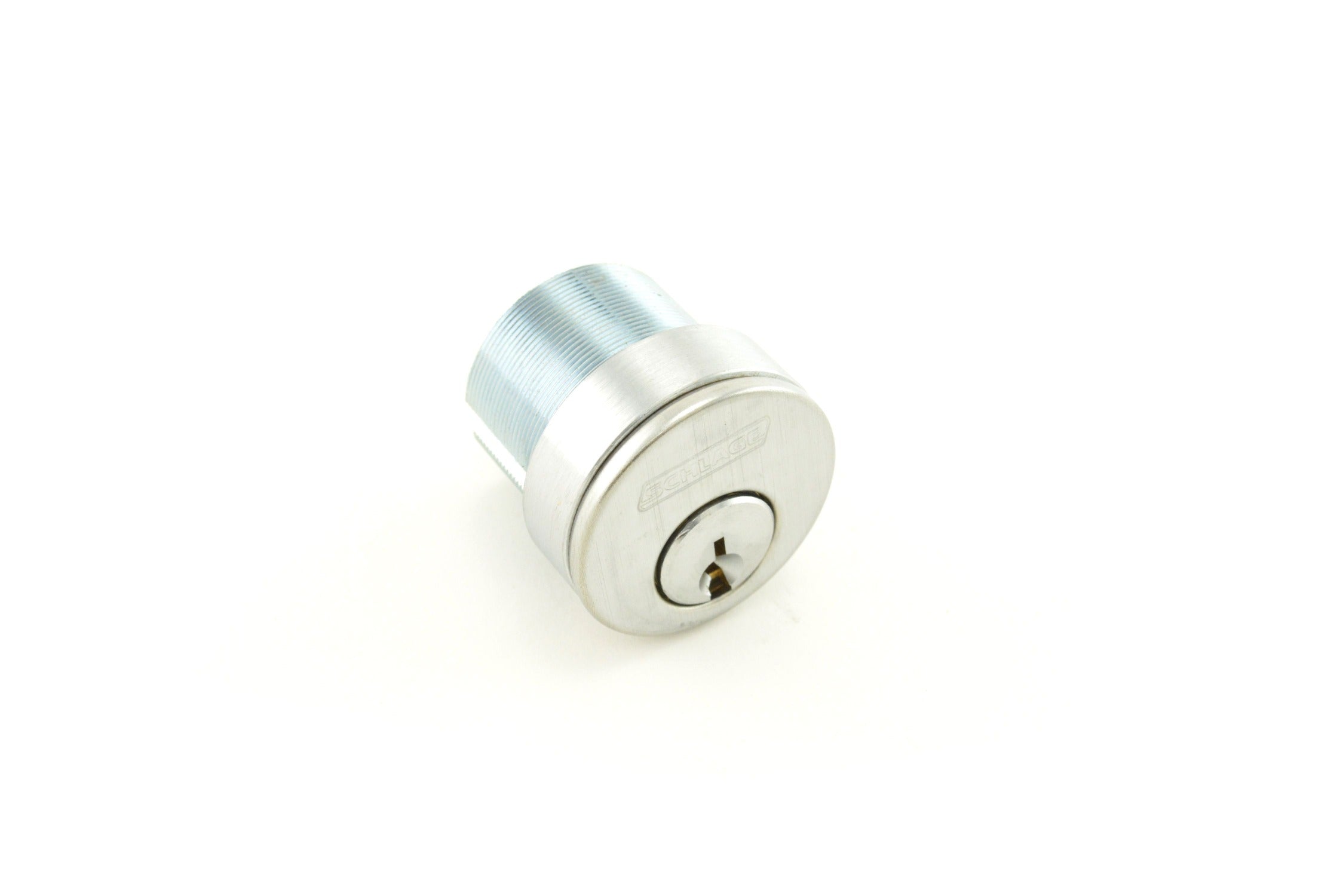

Schlage Commercial 20013C626114 Mortise Cylinder C Keyway

Product Description

The SCHLAGE COMMERCIAL 20013C626114 is a conventional mortise cylinder designed for commercial and institutional door hardware applications. It features a 1-1/4 inch body length, a C keyway, and a keyed-different (KD) configuration, meaning each cylinder ships with its own unique key code. A 3/8 inch blocking ring is included, and the cylinder is fitted with an Adams Rite cam for compatibility with Adams Rite-style mortise locksets. The satin chrome finish provides a clean, professional appearance suited to commercial interior and exterior doors. Licensed locksmiths and commercial door hardware installers are the typical trade professionals who specify and install this cylinder.

This mortise cylinder is intended for commercial, institutional, and multi-family residential door hardware installations where an Adams Rite cam is required. It fits into standard mortise lock bodies that accept a conventional mortise cylinder format. The C keyway designation is a widely used Schlage keyway profile. The keyed-different configuration is standard for applications where cylinders are not being master-keyed or pinned to a common key system at the factory level.

Key Features

• 1-1/4 inch conventional mortise cylinder body length
• C keyway profile for broad key system compatibility
• Keyed different (KD) — each unit ships with a unique key code
• Includes 3/8 inch blocking ring
• Adams Rite cam for use with Adams Rite-style mortise locksets
• Satin chrome finish for a clean commercial appearance

Compatibility

Designed for use with Adams Rite-style mortise locksets that accept a standard conventional mortise cylinder with an Adams Rite cam. Intended for commercial, institutional, and multi-family door hardware applications using the Schlage C keyway system.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Ensure the door and lockset are properly secured and the latch is retracted before removing or installing the cylinder. Verify that the Adams Rite cam orientation and blocking ring position match the existing mortise lock body before final assembly. Consult local building and fire codes, including applicable provisions of the IBC and NFPA 80, when installing hardware on fire-rated or egress doors.
