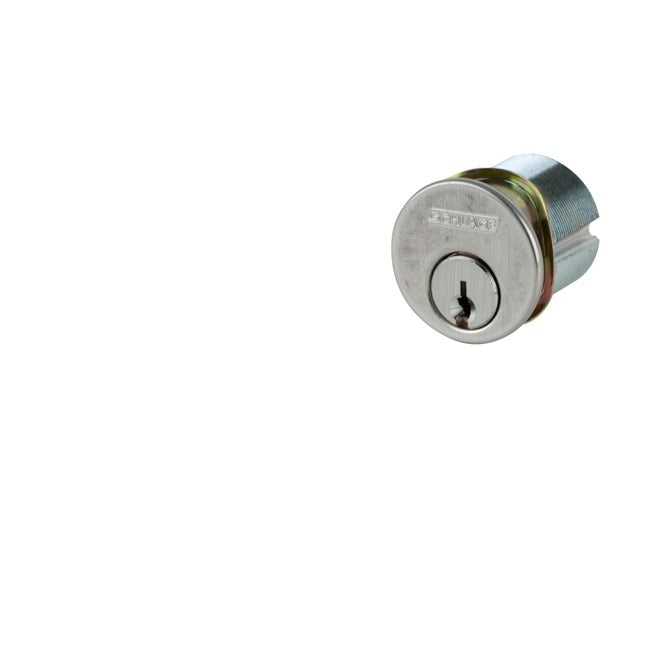

Schlage Commercial 20001C626114 Mortise Cylinder C Keyway

Product Description

The SCHLAGE COMMERCIAL 20001C626114 is a conventional mortise cylinder designed for commercial and institutional door hardware applications. Built to a 1-1/4 inch length, it features a C keyway configuration and ships keyed different (KD), making it suitable for applications where unique key control is required. The cylinder includes a compression ring, spring, and straight cam. The finish is Satin Chrome, providing a clean, low-glare appearance consistent with commercial hardware standards. This cylinder is installed by locksmiths and commercial door hardware technicians as part of mortise lockset assemblies.

This mortise cylinder fits standard mortise lockset bodies used in commercial, institutional, and multi-family building applications. The C keyway is a widely used conventional keyway, compatible with typical master key system hierarchies in commercial facilities. The straight cam suits common mortise lock body configurations. At 0.4 pounds, the cylinder is a direct drop-in replacement in most mortise lock housings that accept a 1-1/4 inch conventional cylinder with a straight cam.

Key Features

• 1-1/4 inch cylinder length for standard mortise lock housings
• C keyway configuration compatible with conventional commercial key systems
• Keyed different (KD) — each unit ships with a unique key cut
• Includes compression ring and spring for secure seating in the mortise body
• Straight cam for compatibility with common mortise lock body configurations
• Satin Chrome finish for a durable, low-maintenance appearance

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise locksets that accept a 1-1/4 inch conventional cylinder with a C keyway and straight cam.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Remove all tension from the lockset and ensure the door is secured in an open position before removing or inserting the cylinder. Verify cam orientation and length match the existing mortise lock body before final installation. Consult the mortise lock manufacturer's instructions for proper cylinder retention screw torque and cam alignment procedures.
