Schlage Commercial 20001C622114 Mortise Cylinder C Keyway

Product Description

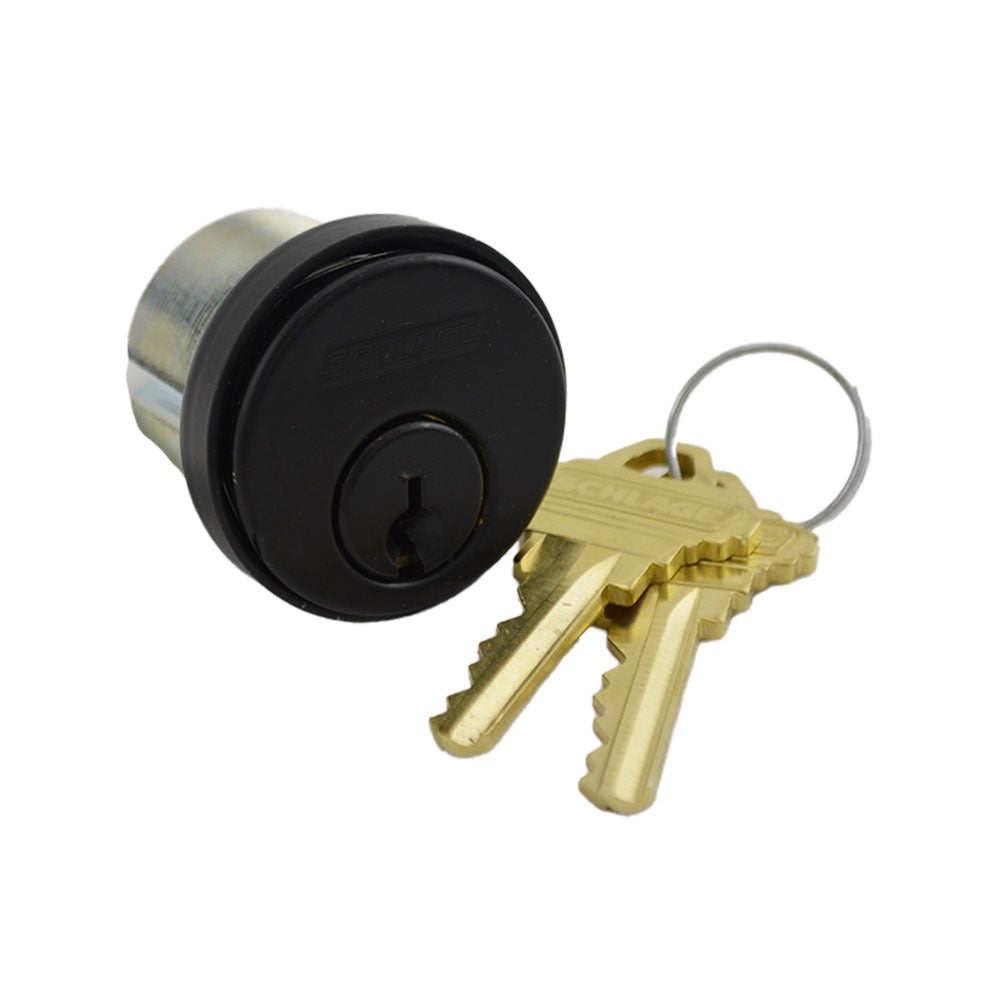

The SCHLAGE COMMERCIAL 20001C622114 is a conventional mortise cylinder designed for commercial and institutional door hardware applications. It features a C keyway configuration, ships keyed different (KD), and includes a compression ring, spring, and straight cam. The cylinder measures 1-1/4 inches in length and is finished in matte black. It is installed by licensed locksmiths or commercial door hardware technicians as part of a mortise lockset assembly. The matte black finish suits architectural hardware specifications where a clean, low-sheen appearance is required.

This mortise cylinder is suited for commercial, institutional, and multi-family residential applications where mortise-style locksets are specified. Typical installations include office buildings, schools, healthcare facilities, and apartment entry doors that require a standard mortise cylinder format. The C keyway is a widely used conventional keyway in commercial master-key systems, making this cylinder compatible with existing Schlage C keyway key systems in large facilities.

Key Features

• 1-1/4 inch conventional mortise cylinder format for commercial lockset assemblies
• C keyway configuration compatible with standard Schlage C keyway key systems
• Keyed different (KD) — each cylinder operates on its own unique key
• Includes compression ring, spring, and straight cam for complete installation
• Matte black finish for architectural hardware coordination

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial and institutional mortise lockset assemblies using a standard 1-1/4 inch conventional mortise cylinder with a C keyway.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Disengage all access control or electric strike power to the door before servicing the lockset. Ensure the mortise lock body is fully accessible and the door is secured in the open position before removing or installing the cylinder. Follow local building and fire codes when specifying hardware for rated door assemblies.
