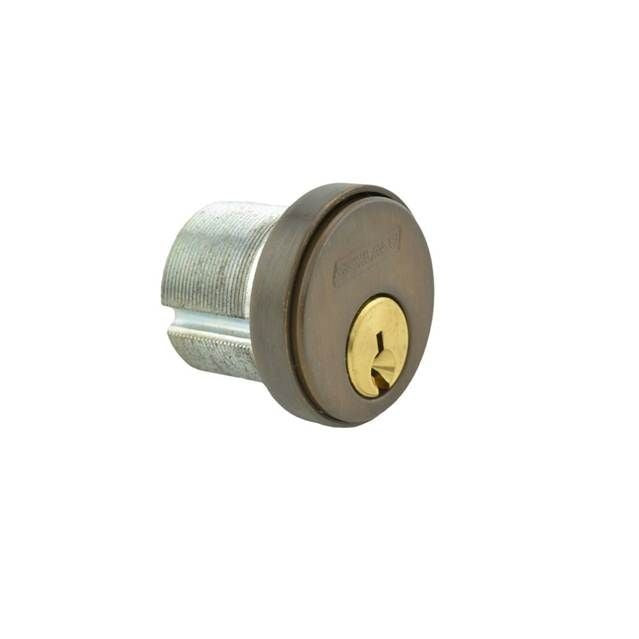

Schlage Commercial 20001C613114 Mortise Cylinder C Keyway

Product Description

The SCHLAGE COMMERCIAL 20001C613114 is a conventional mortise cylinder designed for commercial and institutional door hardware applications. It measures 1-1/4 inches in length and features a C keyway configuration, supplied keyed different (KD). The cylinder ships with a compression ring, spring, and straight cam, providing everything needed for a standard mortise lock body installation. At 0.4 pounds, it is a compact, single-unit component installed by locksmiths and commercial door hardware technicians as part of a complete mortise lock assembly.

This mortise cylinder is suited for commercial, institutional, and multi-family residential applications where mortise-style locksets are specified. It is appropriate for interior and exterior doors in office buildings, schools, healthcare facilities, and similar environments. The C keyway is a widely used profile in commercial keying systems, making this cylinder compatible with standard C keyway key blanks and master key programs. The oil rubbed bronze finish coordinates with matching door hardware in that finish family.

Key Features

• 1-1/4 inch conventional mortise cylinder format for standard mortise lock bodies
• C keyway configuration supports common commercial master key programs
• Keyed different (KD) — each unit ships with its own unique key combination
• Includes compression ring, spring, and straight cam for complete installation readiness
• Oil rubbed bronze finish for aesthetic coordination with matching hardware
• Single-unit (EA) packaging — order quantity of one cylinder per unit

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise locksets that accept a standard 1-1/4 inch conventional mortise cylinder with a C keyway and straight cam.

Installation Notes

Mortise cylinder installation and replacement should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial mortise lock assemblies. Secure the door in a safe position and ensure the lockset is disengaged before removing or installing the cylinder. Follow the mortise lock manufacturer's instructions for cylinder retention screw torque and cam alignment. Verify key operation and full latch or deadbolt throw before returning the door to service.
