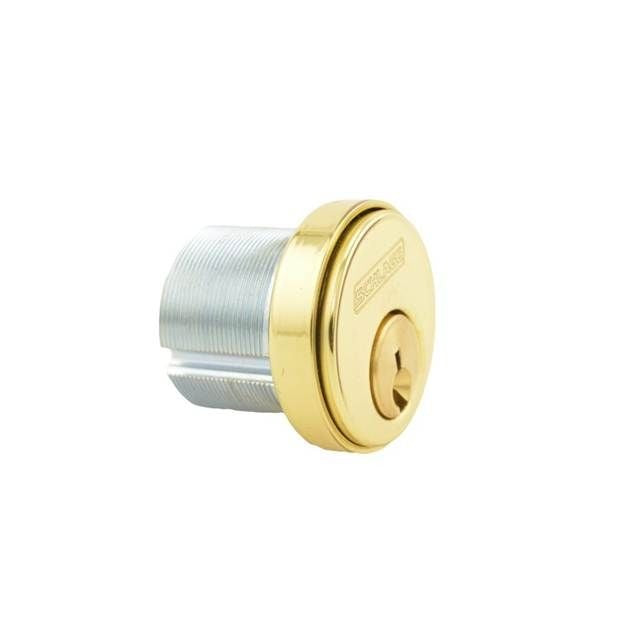

Schlage Commercial 20001C605114 Mortise Cylinder C Keyway

Product Description

The SCHLAGE COMMERCIAL 20001C605114 is a conventional mortise cylinder designed for commercial and institutional door hardware applications. It features a C keyway configuration, ships keyed different (KD), and includes a compression ring, spring, and straight cam. The cylinder measures 1-1/4 inches in length and is finished in Bright Brass. This type of cylinder is installed by locksmiths and commercial door hardware technicians as a core component of mortise locksets in medium- to high-traffic commercial entryways.

This mortise cylinder is suited for commercial, institutional, and multi-family building applications where conventional keying and a standard C keyway system are required. The straight cam configuration makes it compatible with a wide range of mortise lockset bodies. The Bright Brass finish coordinates with 605-series hardware. The KD configuration means each cylinder ships with its own unique key and is not cross-keyed to other cylinders out of the box, which is standard practice for replacement or individual-door installations.

Key Features

• 1-1/4 inch conventional mortise cylinder format for commercial locksets
• C keyway — standard commercial keyway for Schlage Commercial product lines
• Keyed Different (KD) — ships with a unique key, not master-keyed
• Includes compression ring, spring, and straight cam — ready for installation
• Bright Brass (605) finish for coordination with matching hardware trim
• Sold individually (each unit) for single-door replacement or new installation

Compatibility

Designed as an OEM-style replacement or new-installation mortise cylinder for commercial mortise locksets accepting a standard 1-1/4 inch conventional cylinder with a straight cam and C keyway.

Installation Notes

Mortise cylinder replacement and installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Remove all tension from the lockset and ensure the door is secure before removing the existing cylinder. Verify cam type and cylinder length against the existing lockset body before installation. Follow applicable local building codes and manufacturer torque guidance for cylinder retaining screws.
