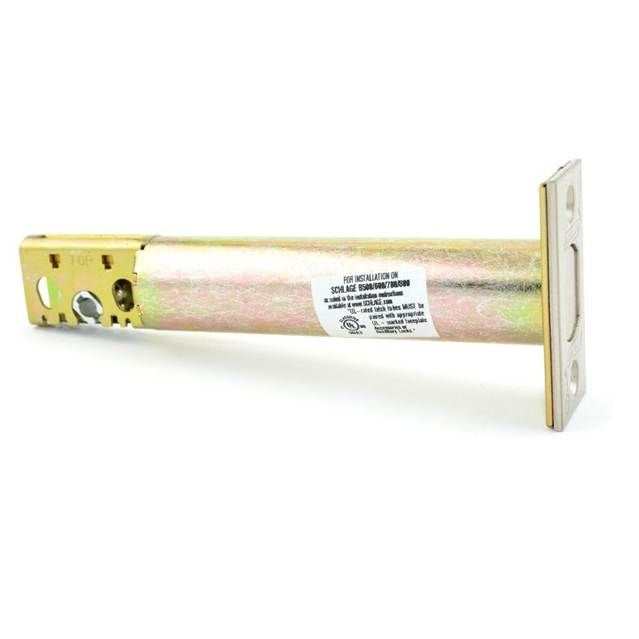

Schlage Commercial 12633619 Square Corner Deadbolt Satin Nickel

Product Description

The SCHLAGE COMMERCIAL 12633619 is a square corner deadbolt faceplate and backset assembly designed for commercial and institutional door hardware installations. Built for the B500 and B600 series deadbolt product lines, this component features a 5-inch backset and a 1-1/8-inch face, finished in satin nickel. It is suited for heavy-use commercial doors where a square corner mortise preparation is required. Licensed locksmiths, commercial door hardware installers, and facility maintenance technicians are the primary installers. At 0.5 pounds, the assembly is compact and fits standard commercial door prep specifications.

This deadbolt component is used in commercial, multi-family, and institutional building applications where B500 or B600 series Schlage deadbolts are specified. The square corner configuration is a common requirement in commercial door frames and hollow metal door preps. The satin nickel finish is appropriate for interior and exterior applications where corrosion resistance and a low-gloss appearance are specified. This part is sold individually and is intended as a direct replacement or new-installation component within the B500 and B600 series platform.

Key Features

• Square corner faceplate configuration matches standard commercial door mortise preps
• 5-inch backset accommodates commercial door thickness and handle setback requirements
• 1-1/8-inch face width fits standard commercial deadbolt cutouts
• Satin nickel finish provides a clean, low-gloss appearance with corrosion resistance
• Compatible with B500 and B600 series Schlage deadbolt assemblies
• Lightweight at 0.5 pounds for easy handling during installation

Compatibility

Designed for use with Schlage B500 and B600 series deadbolts requiring a square corner faceplate with a 5-inch backset and 1-1/8-inch face.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Verify that the door prep matches the square corner mortise dimensions before installation. Disengage the door from its frame and ensure the existing deadbolt assembly is fully removed before fitting this component. Follow applicable building and fire egress codes for the jurisdiction, including ANSI and BHMA hardware grade requirements where specified.
