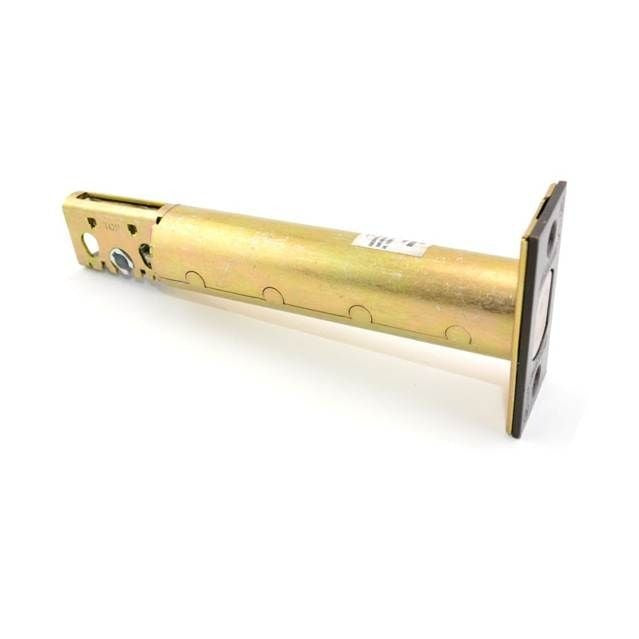

Schlage Commercial 12633613 Square Corner Deadbolt Oil Rubbed Bronze

Product Description

The SCHLAGE COMMERCIAL 12633613 is a square corner deadbolt designed for the B500 and B600 series locksets, finished in Oil Rubbed Bronze. It ships with a 5-inch backset and a 1-1/8-inch face, making it suited for standard commercial and residential door prep work. The deadbolt faceplate and backset assembly provide a clean, flush fit on square-corner door edge preps. Licensed locksmiths, commercial door hardware installers, and facilities maintenance technicians are the primary users of this component. At 0.5 pounds, it is a lightweight but solid hardware replacement or upgrade part.

This deadbolt assembly is applicable to doors prepped for the Schlage B500 or B600 series. It fits standard door installations in commercial office buildings, multi-family residential properties, institutional facilities, and retail environments where square-corner door prep is required. The Oil Rubbed Bronze finish is commonly specified in retrofit or renovation projects where aesthetic consistency with existing hardware is a priority.

Key Features

• Square corner faceplate design for standard commercial door edge preps
• 5-inch backset accommodates common door bore configurations
• 1-1/8-inch face width for flush, clean installation
• Oil Rubbed Bronze finish for aesthetic compatibility in renovation applications
• Compatible with B500 and B600 series Schlage deadbolt locksets
• Sold individually, with a case quantity of 5 units available

Compatibility

Designed for use with the Schlage B500 and B600 series deadbolt locksets requiring a square corner faceplate with a 5-inch backset and 1-1/8-inch face in Oil Rubbed Bronze finish.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician. Before servicing or replacing any deadbolt component, ensure the door is secured in an open position and that any associated access control or electric strike systems are de-energized. Follow local building codes and the door manufacturer's preparation specifications when fitting the faceplate to the door edge. Do not force the faceplate into an undersized mortise cutout, as this can damage the door edge or misalign the bolt throw.
