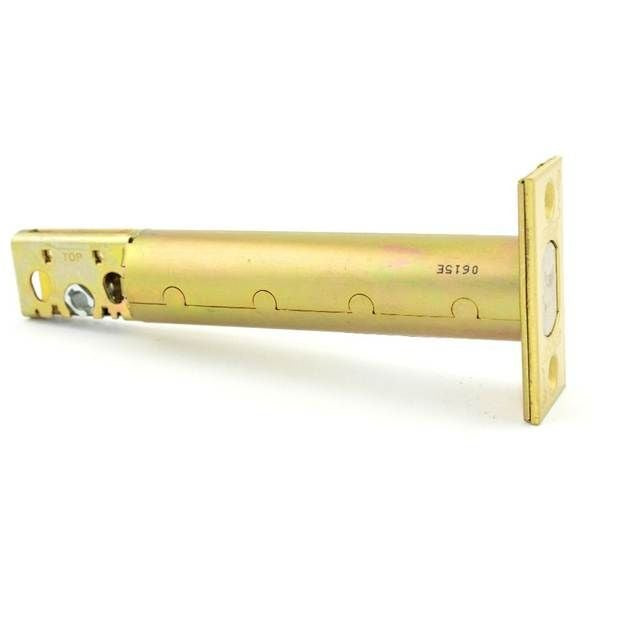

Schlage Commercial 12633605 Square Corner Deadbolt Bright Brass

Product Description

The SCHLAGE COMMERCIAL 12633605 is a square corner deadbolt replacement component designed for use with B500 and B600 Series deadbolt locksets. It features a 5 inch backset and a 1-1/8 inch face width, finished in Bright Brass. This part provides the door-face latch plate and bolt assembly needed to complete or service a deadbolt installation on standard commercial and residential door prep. Licensed locksmiths, commercial door hardware installers, and facility maintenance technicians are the primary trades that work with this component.

This deadbolt component is suited for commercial, multi-family, and institutional door applications where B500 or B600 Series Schlage deadbolts are specified. The square corner faceplate profile fits standard door edge mortise preps that require a non-rounded strike and face plate. The Bright Brass finish coordinates with matching B-series hardware on the same door. It is sold as a single unit and is appropriate for new installations as well as retrofit or service work on existing Schlage B-series locksets.

Key Features

• 5 inch backset accommodates standard commercial door preparations
• 1-1/8 inch face width with square corner profile for precise door edge fitment
• Bright Brass finish for aesthetic consistency with B500 and B600 Series hardware
• Compatible with both B500 and B600 Series Schlage deadbolt families
• Sold individually, with a case quantity of 5 for multi-unit jobs

Compatibility

Designed for use with Schlage B500 Series and B600 Series square corner deadbolt locksets requiring a 5 inch backset and 1-1/8 inch face.

Installation Notes

Installation is performed by a licensed locksmith or qualified door hardware technician. Before servicing or replacing deadbolt components, ensure the door is secured open and all related hardware is disengaged. Follow local building codes and manufacturer guidelines for door prep dimensions and fastener torque. Do not force the bolt assembly into a misaligned or undersized door edge mortise, as this can damage the component and compromise lock function.
