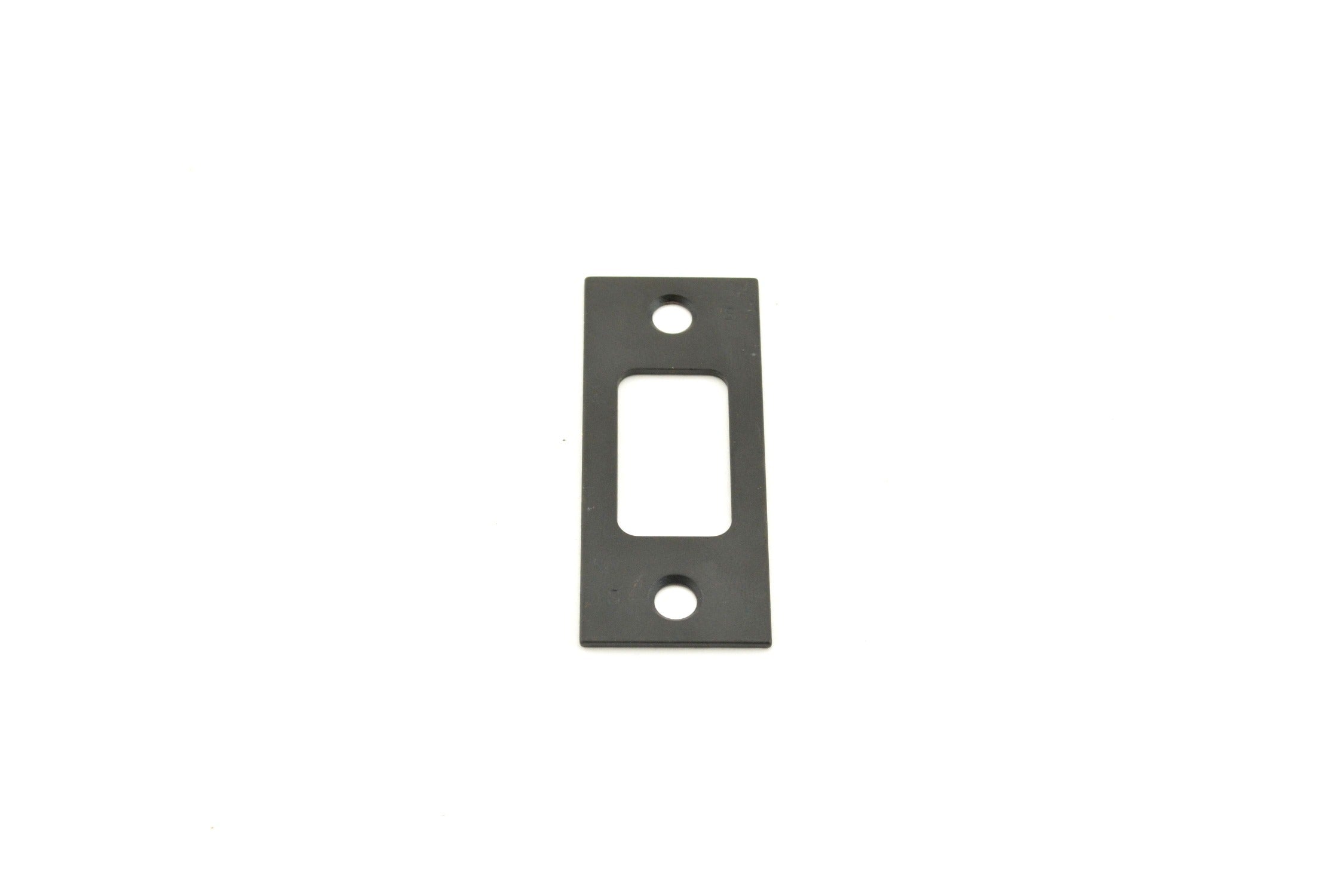

Schlage Commercial 10094716 Deadbolt Strike Aged Bronze

Product Description

The SCHLAGE COMMERCIAL 10094716 is a square corner deadbolt strike plate finished in aged bronze, designed for use in commercial and institutional door hardware installations. This strike plate provides the reinforced mortise point where the deadbolt latch seats into the door frame, forming a critical part of the locking system's overall security. Measuring 2.75 inches in length and 1.1 inches in width with a low-profile depth of 0.05 inches, it is suited for standard door frame prep work. Licensed locksmiths, commercial carpenters, and security hardware technicians typically handle this type of installation.

This strike plate is used in commercial, multi-family, and institutional door frame applications where a square corner deadbolt strike is specified. The aged bronze finish coordinates with matching door hardware in that finish family. It is sold individually and is appropriate for new construction or replacement installations where the existing strike has worn, been damaged, or does not meet current hardware specifications.

Key Features

• Square corner profile meets standard commercial door frame prep requirements
• Aged bronze finish for coordinated hardware appearance
• Low-profile at 0.05 inches depth to sit flush with frame face
• Compact footprint at 2.75 inches length by 1.1 inches width
• Lightweight at 0.04 pounds for easy handling during installation
• Sold individually allowing single-unit replacement without excess inventory

Compatibility

Designed as an OEM-style replacement square corner deadbolt strike for commercial and institutional door frame applications requiring standard deadbolt strike dimensions.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified commercial door hardware technician. Before installation, confirm the door is fully closed and latched and that no live access control wiring runs through the frame cavity near the strike mortise. Chisel the frame mortise to accept the strike plate flush before fastening. Follow applicable building codes and the door manufacturer's hardware prep specifications when selecting fastener size and placement.
