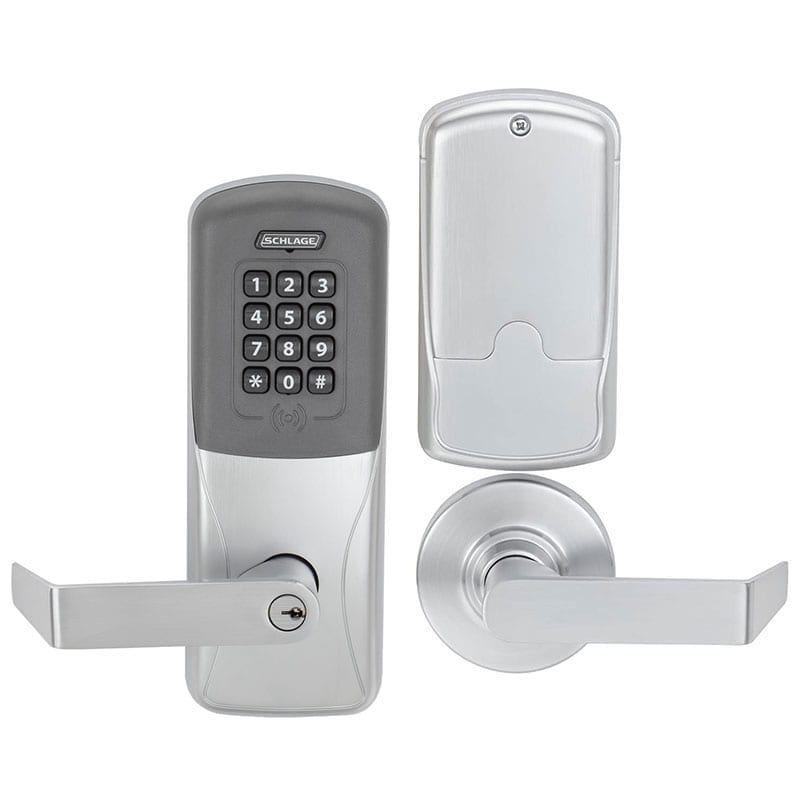

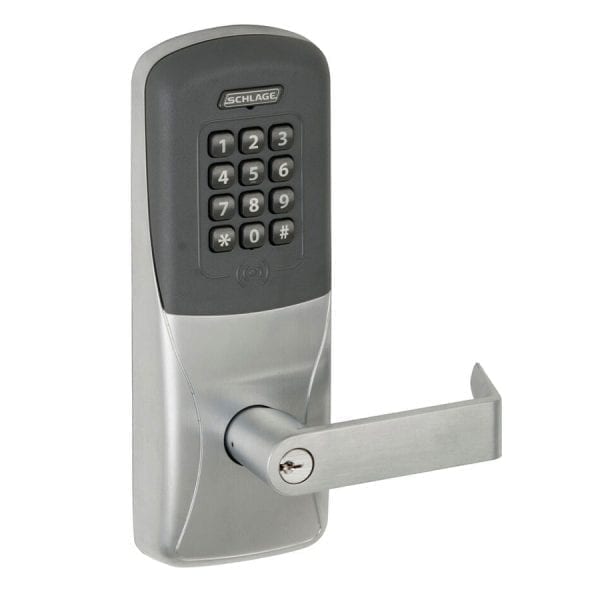

Schlage CO200-CY70PRK-RHO626 JD Electronic Lock with Proximity Card Reader and Keypad Storeroom Function

Product Description

The Schlage Electronic Security CO200-CY70PRK-RHO626 JD is a reliable electronic lock designed for both security and convenience. This model allows for manual or computer programming, facilitating downloads via a handheld device. Users can access the lock with a PIN of three to six digits or through proximity cards. It supports up to 2000 users and includes an audit capability for up to 2000 events.

• Minimizes key distribution for maintaining key system integrity
• Stores credentials for 2000 users with an event audit trail
• Meets UL 294 standards and ANSI/BHMA Grade-1 certification

Product Highlights

This electronic lock is suitable for high traffic areas where robust security measures are crucial.

Product Information

Standard Information

• Brand: Schlage
• Finish Options: Various finishes available including bright brass and satin chrome

Technical Specifications

• Lock Function: Storeroom
• Keyway: Schlage C and S123
• Latch: 1/2 inch throw, deadlocking
• Backset: 2-3/4 inches
• Strike: 4-7/8 inches x 1-1/4 inches
• Lever Design: RHO (Rhodes)
• Certifications: ANSI/BHMA A156.25, Grade 1, UL 294
• Handing: Non-Handed
• Door Thickness: 1-3/4 inches
• Power Supply: 4 AA batteries
• Battery Life: Up to 2 years
• Reader Type: Keypad and Proximity
• Door Applications: Suitable for interior or exterior doors
