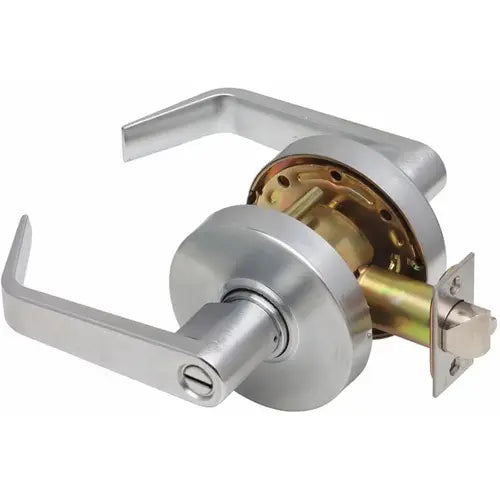

Schlage C2000-PRIV-R-626 Dexter Grade 2 Privacy Regular Lever

Product Description

The Schlage C2000-PRIV-R-626 is a Dexter Grade 2 privacy regular lever designed for bed and bath applications. It features a spring latch mechanism and meets ADA accessibility standards. This lever fits doors with thickness ranging from one and three-eighths inches to one and three-quarters inches and comes equipped with a two and three-quarters inch backset. The included strike has dimensions of four and seven-eighths inches by one and one-quarter inches.

• Meets ADA accessibility standards.
• Compatible with doors having thickness from one and three-eighths inches to one and three-quarters inches.
• Includes ANSI curved lip strike with specific dimensions.

Product Highlights

This lever lock provides privacy for bedrooms and bathrooms, ensuring safety and convenience. It is crafted for durability, making it suitable for regular use in residential spaces.

Product Information

Standard Information

• Function: Privacy/Bedroom/Bathroom
• Manufacturer: Allegion

Technical Specifications

• Thickness: 1-3/8 inches - 1-3/4 inches
• Latch Type: Spring Latch
• ANSI Function: F76
• Grade: ANSI/BHMA Grade 2
• Strike Width: 1-1/4 inches
• Latch Backset Dimension: 2-3/4 inches
• Lock Face Size: 2-1/4 inches x 1-1/8 inches
• Package Quantity: 1
• Function Description: Outside knob/lever locked by push button on inside. Rotating inside knob/lever or closing door releases the button.
• Standards: UL Listed 3-Hour
• Bore Size: 2.125 inches
• Product Projection: 2-1/2 inches
• Knob/Lever Design: Regular
• Door Thickness Min: 1-3/8 inches
• Door Thickness Max: 1-3/4 inches
