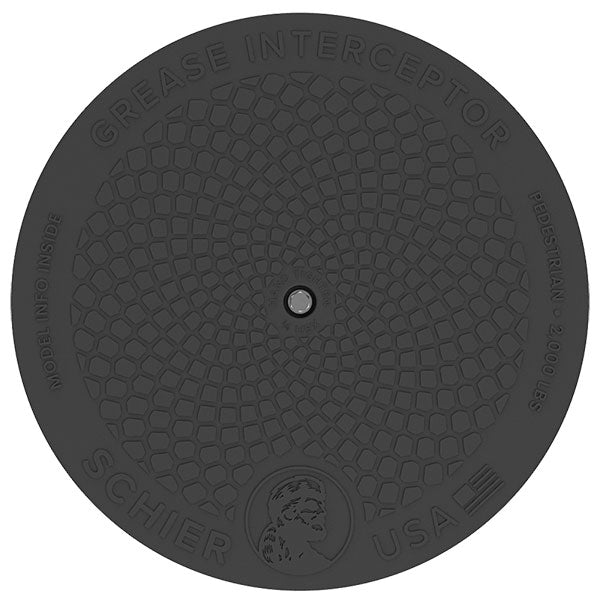

Schier Products 8045-000-01 Polypropylene Cover 24 Inches

Product Description

The SCHIER PRODUCTS 8045-000-01 is a 24-inch pedestrian-rated bolted polypropylene cover designed for use with grease interceptors, solids interceptors, and wastewater inspection ports in commercial and light-traffic plumbing installations. Injection molded from polypropylene and rated to 2,000 pounds per CSA B481.0 Class M, this cover provides a gas and water tight seal through a factory-included sealing gasket and a single stainless steel center bolt. It is sold separately from the interceptor or port unit. Plumbers and service technicians install this cover as a code-compliant access point on below-grade or flush-floor interceptor systems.

This cover is intended for commercial plumbing applications where grease interceptors, solids interceptors, or inspection ports are installed at or below finished floor level in pedestrian traffic areas. It is sized at 24 inches to fit the P24-GI opening and is appropriate for kitchen, utility, or light-traffic floor environments where a gas and water tight, bolted cover is required. Sold as a standalone cover; tanks and interceptor bodies ship with a temporary cover and are purchased separately.

Key Features

• Pedestrian rated to 2,000 pounds per CSA B481.0 Class M
• Gas and water tight seal for below-grade interceptor access points
• Injection molded polypropylene construction for corrosion resistance
• Includes sealing gasket and single stainless steel center bolt
• 24-inch diameter fits P24-GI opening on compatible interceptors and inspection ports
• Sold separately — compatible units ship with a temporary cover

Compatibility

Designed for use with Great Basin grease interceptors (GB-50 and up), Billy Goat solids interceptors (SI-50 and up), and Sewer Viewer wastewater inspection ports (SV24 and SV24-O).

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the manufacturer instructions. Ensure the interceptor or inspection port is depressurized and the surrounding area is clear before seating the cover. Torque the stainless steel center bolt evenly to compress the sealing gasket and achieve a gas and water tight connection. Verify the cover sits flush with the finished floor surface to maintain the pedestrian load rating.

Technical Specifications

• Cover Diameter: 24 inches
• Load Rating: 2,000 pounds (CSA B481.0 Class M)
• Cover Material: Injection molded polypropylene
• Fastener: Single stainless steel center bolt
• Seal Type: Sealing gasket included
• Seal Rating: Gas and water tight
• Certification: CSA B481.0 Class M

Standard Information

• Brand: SCHIER PRODUCTS
• Manufacturer Part Number: 8045-000-01
