Schier Products 4065-001-06 Gb2 Grease Interceptor Indoor 35 GPM replacement 4065-001-05

Product Description

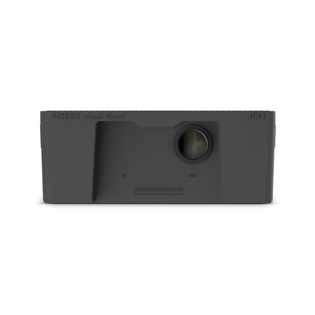

The SCHIER PRODUCTS 4065-001-06 GB2 is an indoor grease interceptor with a 35 GPM flow rate. Designed for under-the-sink installations, it can be installed above grade or buried below grade. The triple outlet allows for installation flexibility. It is certified to ASME A112.14.3 / CSA B481.1 (Type D).

• Rugged polyethylene tank body
• Inlet diffuser cap for throttling heavy head pressures, when needed, without impeding the drain line
• Includes plain end fittings to connect to 3" pipe

Product Highlights

This grease interceptor features a compact design, triple outlet, and is certified to Type D standards, eliminating the need for flow control.

Product Information

Standard Information

• Brand: SCHIER PRODUCTS
• Manufacturer Part Number: 4065-001-06
• Country of Origin: USA

Technical Specifications

• Flow Rate/Grease Capacity: 35 GPM / 119 lbs
• Solids Capacity: 1.8 gal
• Liquid Capacity: 20 gal
• Installation Location: Indoor
• Brand: Schier
• Connection Size: 4"
• Connection Type: FIP
• GPM: 35
• Type: Grease Interceptor
• Model: GB2
• Part Number: 4065-001-06
• Grease Capacity: 119.3 lbs. (16.3 gal.)
• Connections: 4" FPT Inlet/Outlet w/ 3" Plain End Adapters
• Max Operating Temp: 150°F Continuous
