Schier 4080-002-01 Great Basin™ 6547 lb 100 gpm Grease Interceptor

Product Description

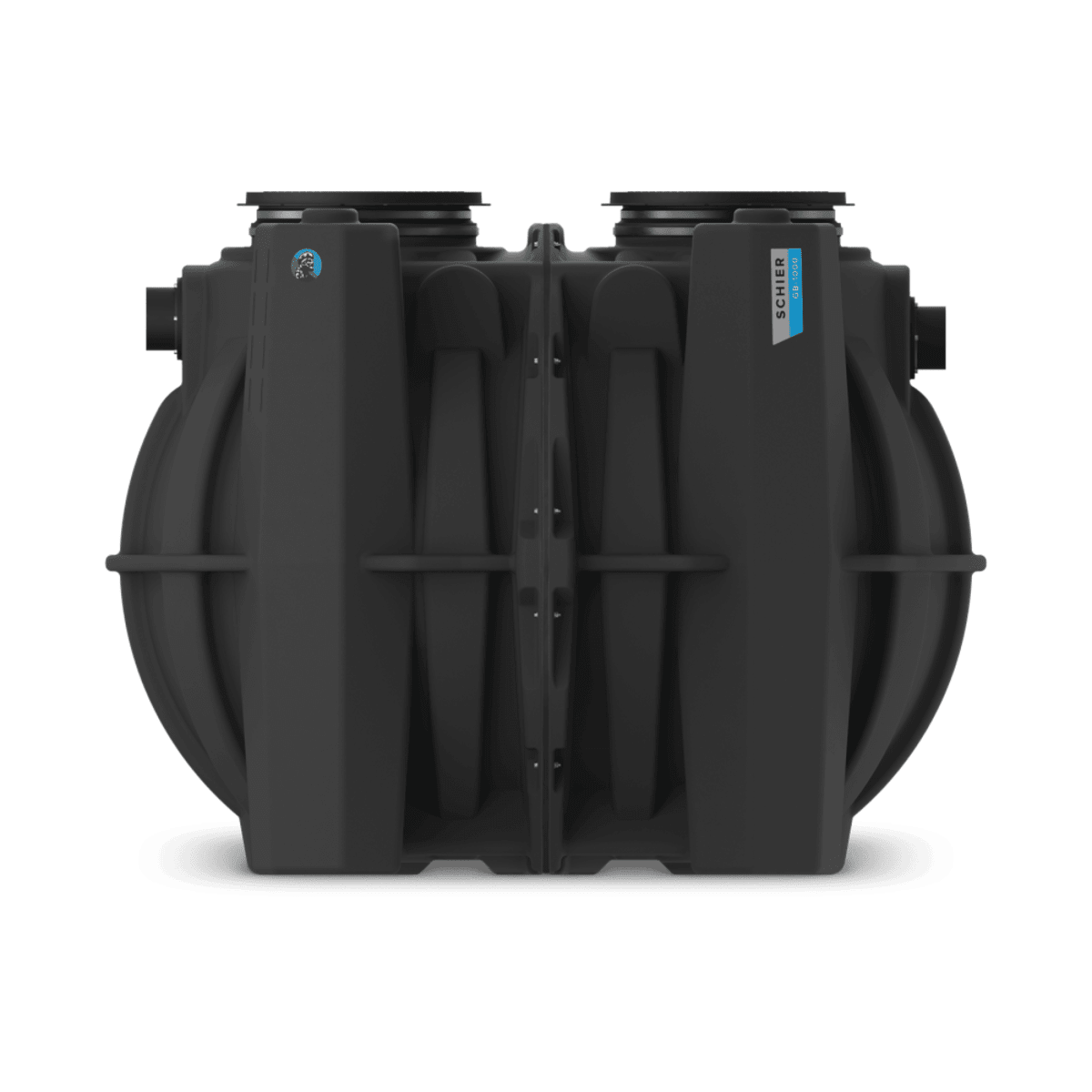

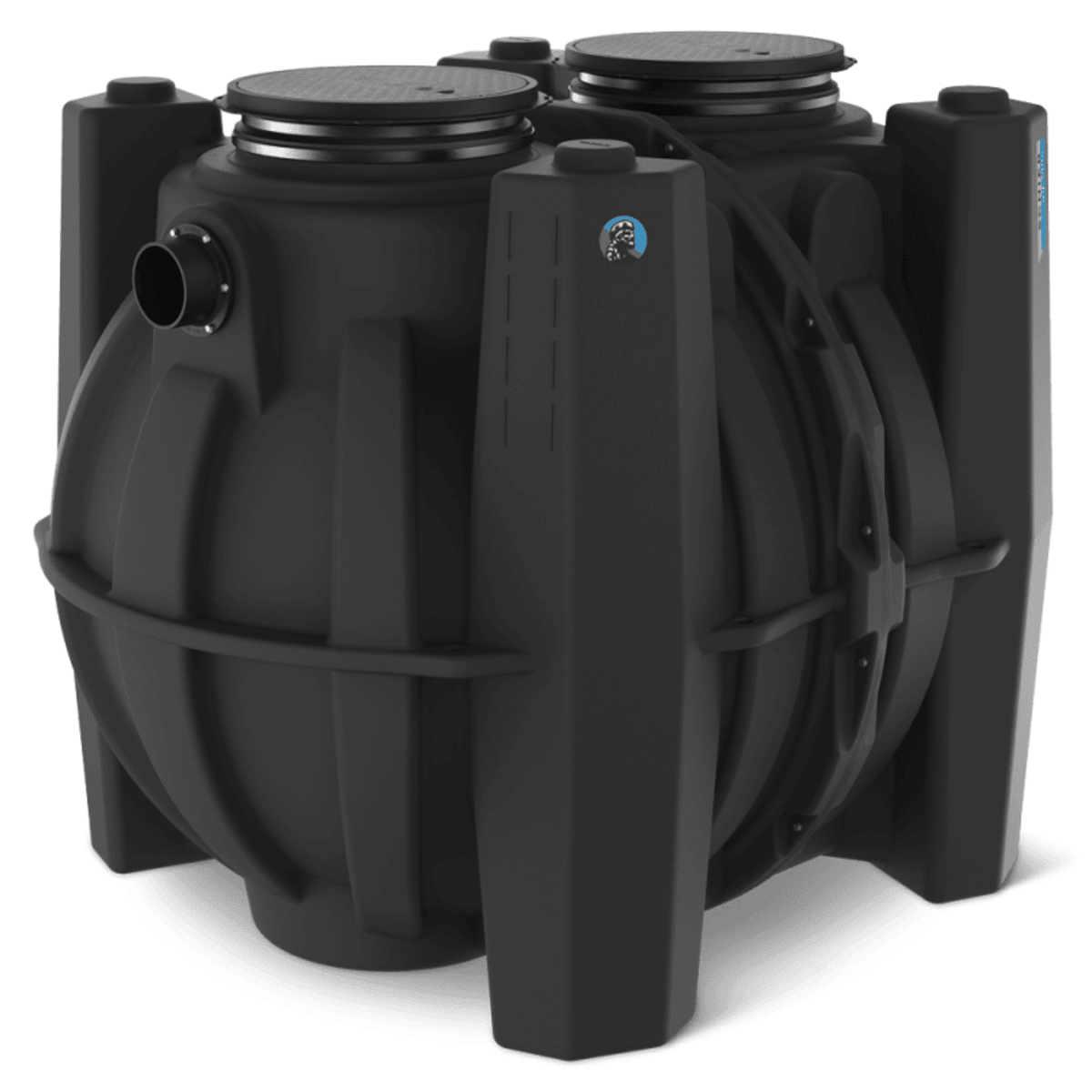

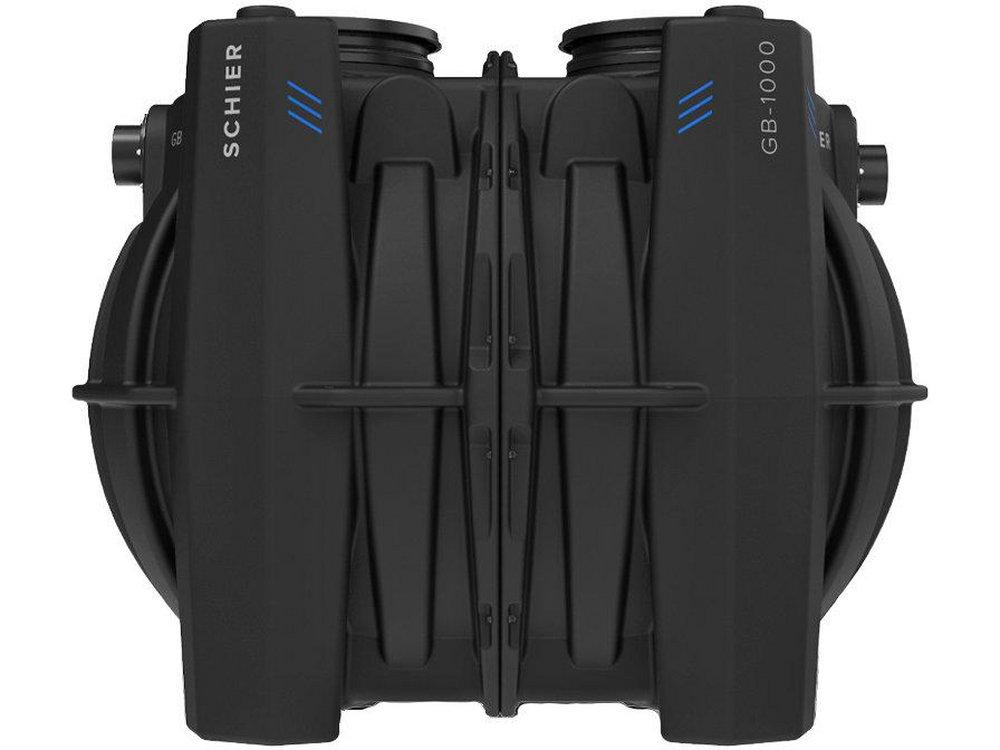

The Schier 4080-002-01 Great Basin™ Grease Interceptor, with a 6547 lb capacity and 100 gpm flow rate, is constructed from polyethylene. The GB-1000 offers certified grease capacity for high food waste producers. Its design features two rotationally molded halves bolted and welded together, providing structural integrity for above or below grade installations.

• Safety Star™ access restrictor prevents accidental entry

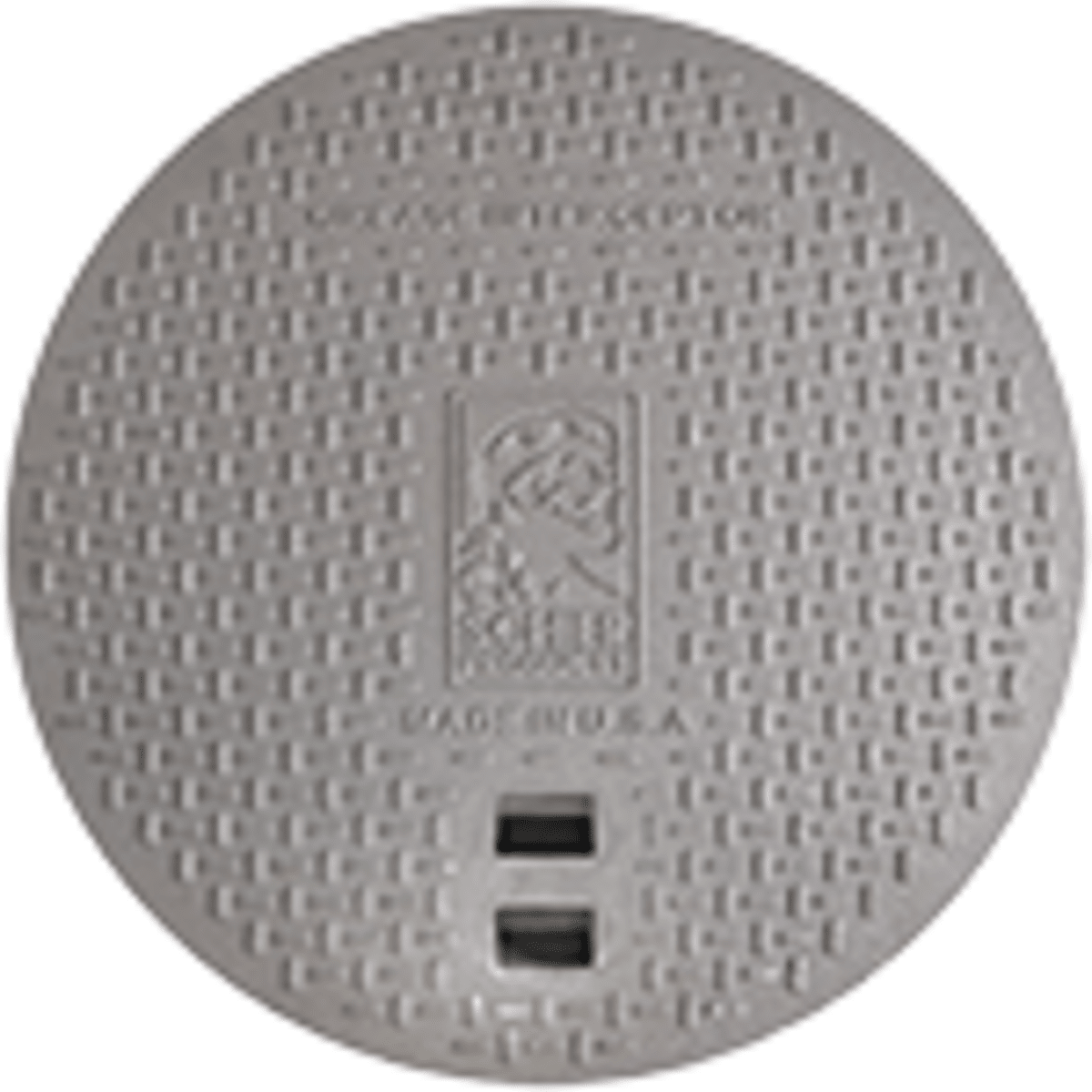

• Standard cast iron covers for outdoor installations, H-20 rated
• Rugged polyethylene tank
• 21% kitchen solids waste capacity

Product Highlights

This grease interceptor is suitable for indoor or outdoor use and is compatible with FCR2 risers. It is listed by IAPMO to ASME A112.14.3 / CSA B481.1-2022 (Type D) and ANSI Z1001-2021.

Product Information

Standard Information

• Brand: SCHIER
• Manufacturer Part Number: 4080-002-01

Technical Specifications

• Type: Grease Interceptor
• Capacity: 6547 lb
• Flow Rate: 100 gpm
• Material: Polyethylene
• Series: Great Basin™
• Brand: Schier
• Alternate Part Number 1: GB-1000
• Manufacturer: Schier
• Cover: Cast iron
• Cover_Ratings: H-20 rated, proof-load tested to 40,000 lbs
• Connection_Size: 6"
• Connection_Type: Plain End
