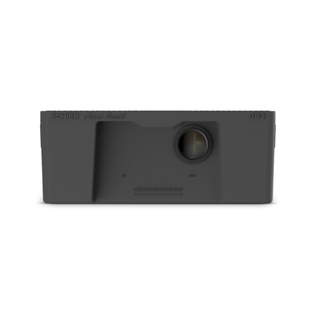

Schier 4065-001-06 GB2 Grease Interceptor 35 GPM with 4 in FPT In/Out Connections

Product Description

The Schier 4065-001-06 GB2 is designed for under-the-sink installations and can be installed above grade or buried below grade. Its triple outlet feature allows for installation flexibility, including connecting an unused outlet for remote pumpout. This grease interceptor has a 35 GPM flow rate and includes plain end fittings to connect to 3" pipe.

• Includes plain end fittings to connect to 3" pipe
• Inlet diffuser cap for throttling heavy head pressures, when needed, without impeding the drain line
• Rugged polyethylene tank body

Product Highlights

The GB2's compact design makes it ideal for under-the-sink installations. It offers installation flexibility and is compatible with remote pumpout.

Product Information

Standard Information

• Brand: SCHIER
• Manufacturer Part Number: 4065-001-06
• Country of Origin: USA

Technical Specifications

• Brand: Schier
• Capacity: 16.3 gal
• Connection Type: FPT
• Flow Rate: 35 GPM
• Material: Polyethylene
• Nominal Size: 4 in x 3 in
• Type: Grease Interceptor
• Model: GB2
• Part Number: 4065-001-06
• Grease Capacity: 119.3 lbs. (16.3 gal.)
• Liquid Capacity: 20 gal.
• Solids Capacity: 1.8 gal.
• Connections: 4" FPT Inlet/Outlet w/ 3" Plain End Adapters
• Max Operating Temp: 150°F Continuous
• Cover Material: Water/gas-tight polyethylene with 450 lb. load capacity.
