Schier 4055-007-02 GB-250 Grease Interceptor 100/200 GPM with 4in Plain End Adapters

Product Description

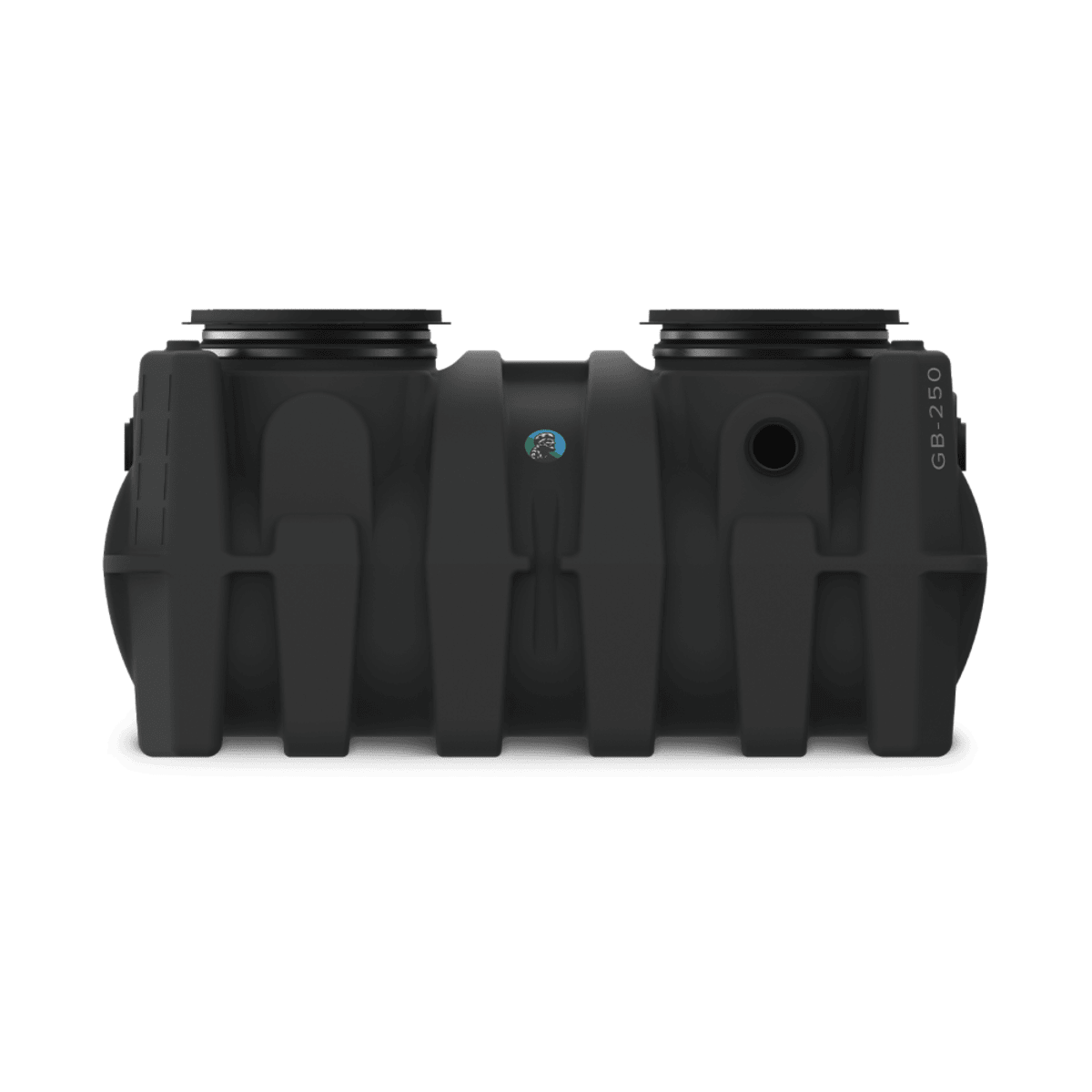

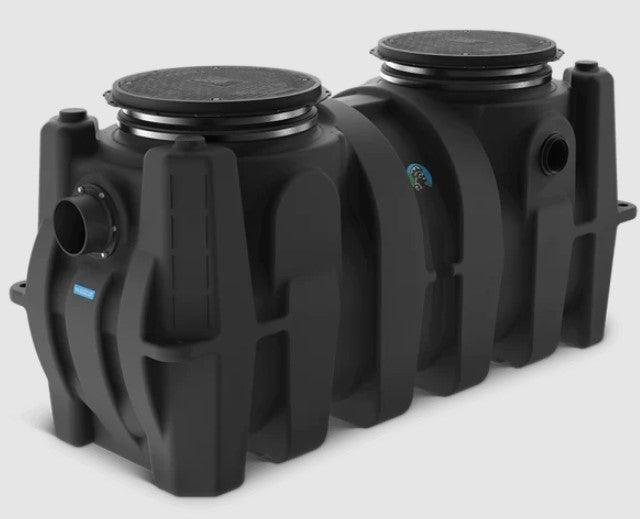

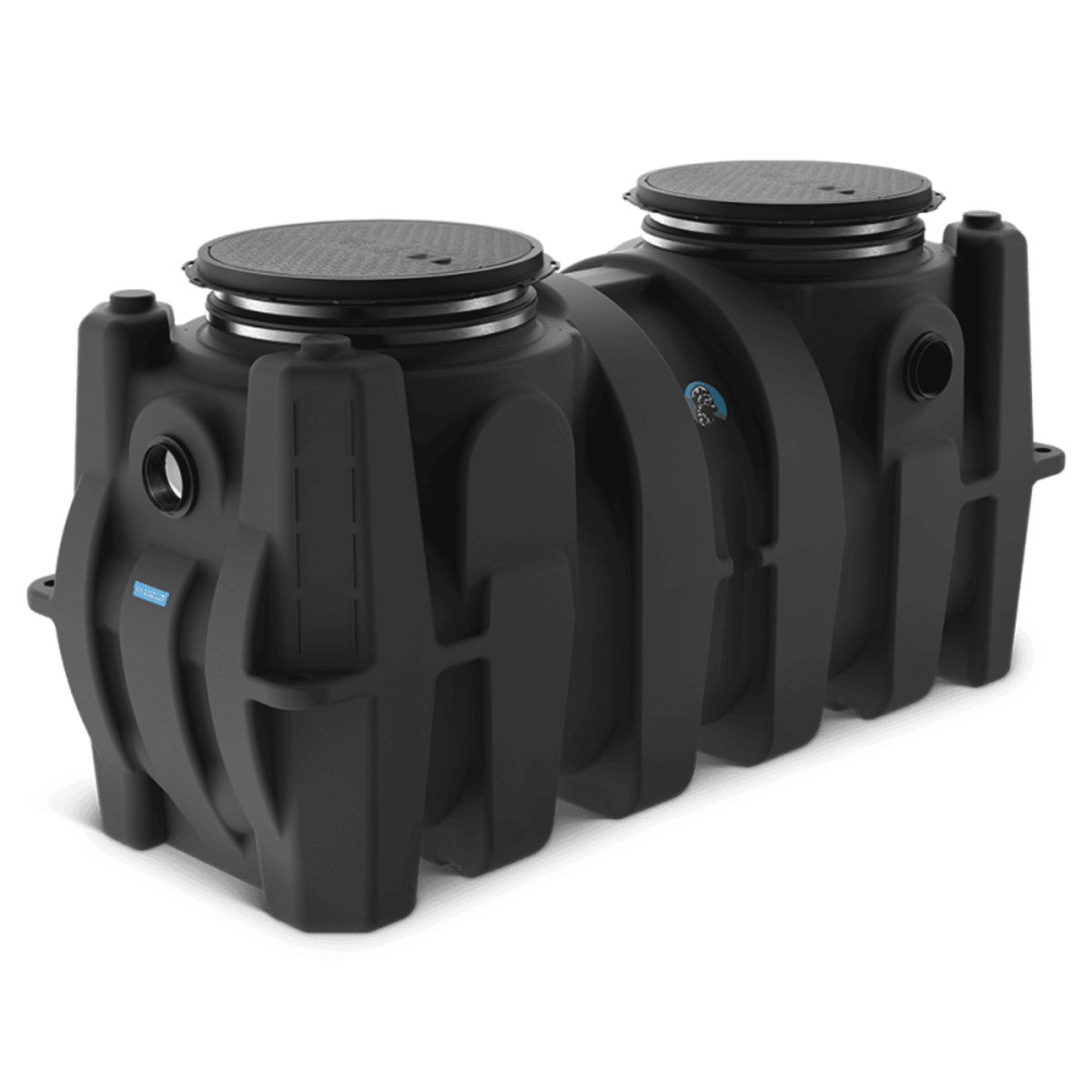

The Schier 4055-007-02 GB-250 is a grease interceptor with 4in plain end adapters and H-20 rated cast iron cover. It offers certified grease capacity and kitchen solids waste capacity. This grease interceptor can be installed above grade or buried below grade, as well as indoor or outdoor. It traps FOG and protects pipes from costly backups.

• Rugged polyethylene tank body
• No flow control required, first in the industry certified to Type D of the ASME standard
• Safety Star access restrictor prevents accidental entry

Product Highlights

This grease interceptor is designed for gravity drainage applications and is suitable for busy commercial kitchens with fast installation.

Product Information

Standard Information

• Brand: SCHIER
• Manufacturer Part Number: 4055-007-02

Technical Specifications

• Type: Grease Interceptor
• Cover: Cast iron

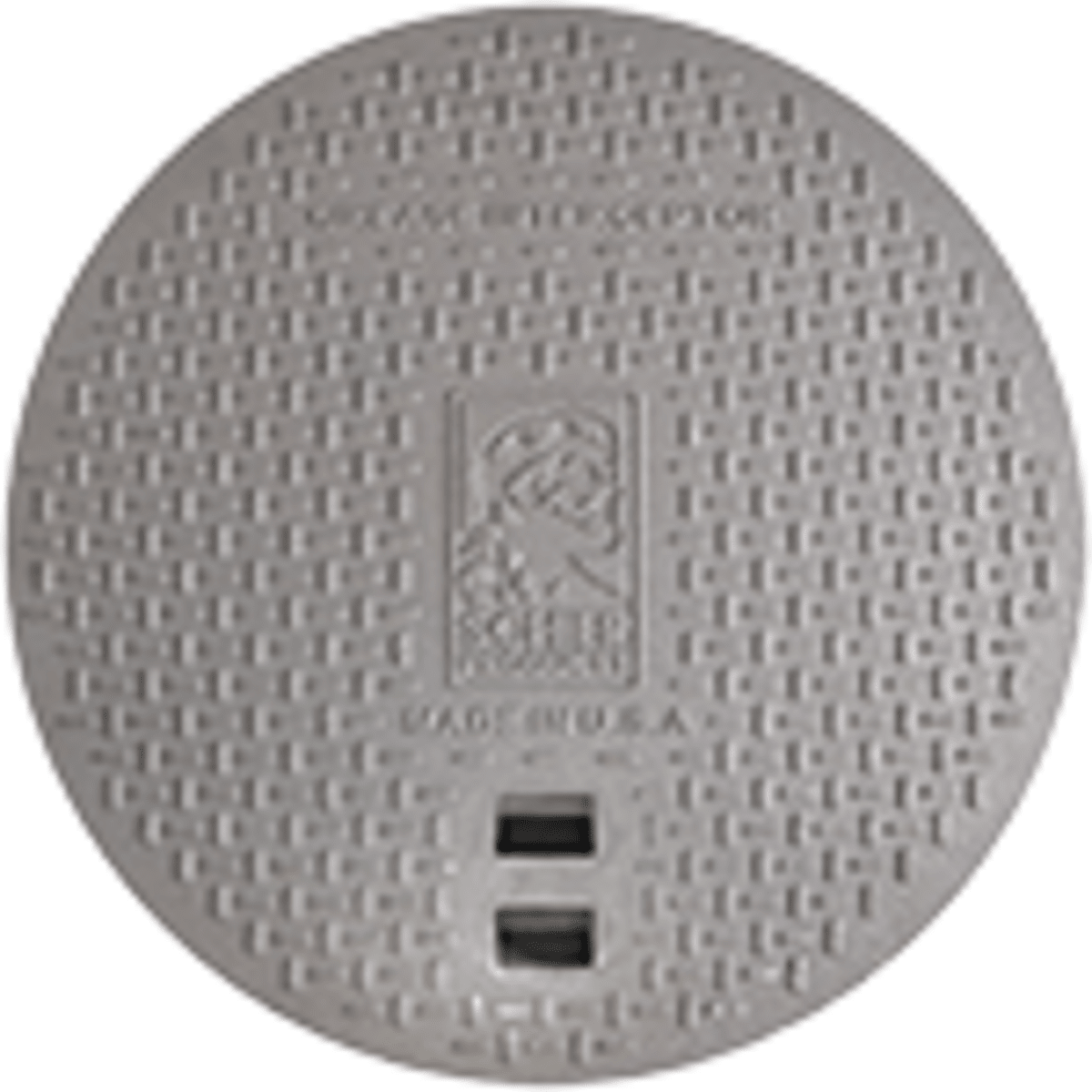

• Cover_Ratings: 24" gas/water tight cover, H-20 rated, proof-load tested to 40,000 lbs. Recommended for outdoor installation.
• Connection_Size: 6"
• Connection_Type: Plain End
• Flow Rate: 100 gpm
• Material: Polyethylene
• Brand: Schier
• Flow Rate/Grease Capacity: 100 GPM (6.3 L/s) / 1,895 lbs (859.4 kg) 200 GPM (12.6 L/s) / 1,196 lbs (542.4 kg)
• Solids Capacity: 69 gal (261.2 L)
• Liquid Capacity: 277 gal (1,048.6 L)
• Installation Location: Indoor/Outdoor
• Model: GB-250
• Grease Interceptor Part Number: 4055-007-02
• Composite Cover Part Number: 8044-000-01
• Grease Capacity: 1,895 lbs. @ 100 GPM / 1,196 lbs. @ 200 GPM
• Connections: 4" FPT Inlet/Outlet with 4" Plain End Adapters
• Max Operating Temperature: 150°F Continuous
• Cover Load Capacity: 16,000 lbs
