Product Description

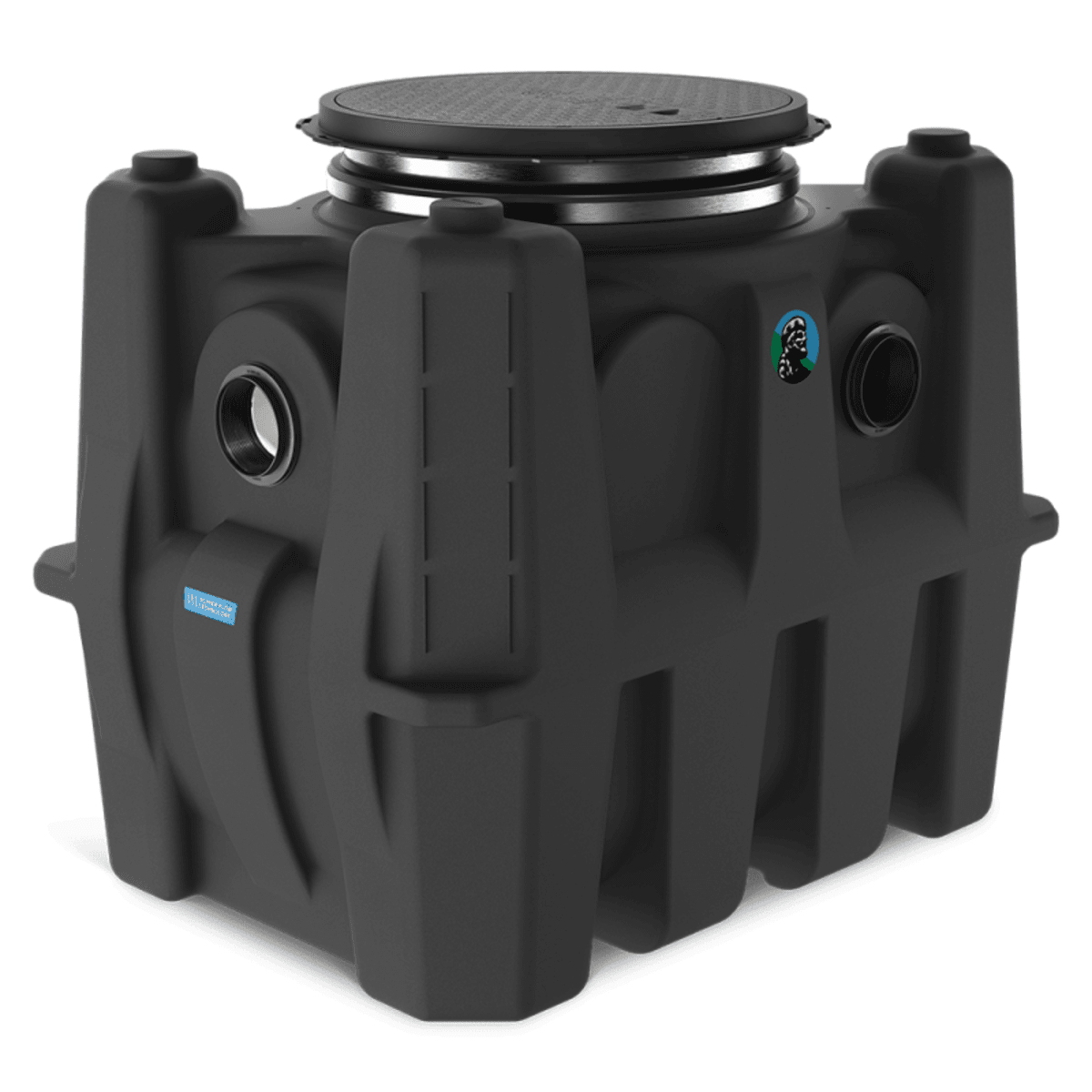

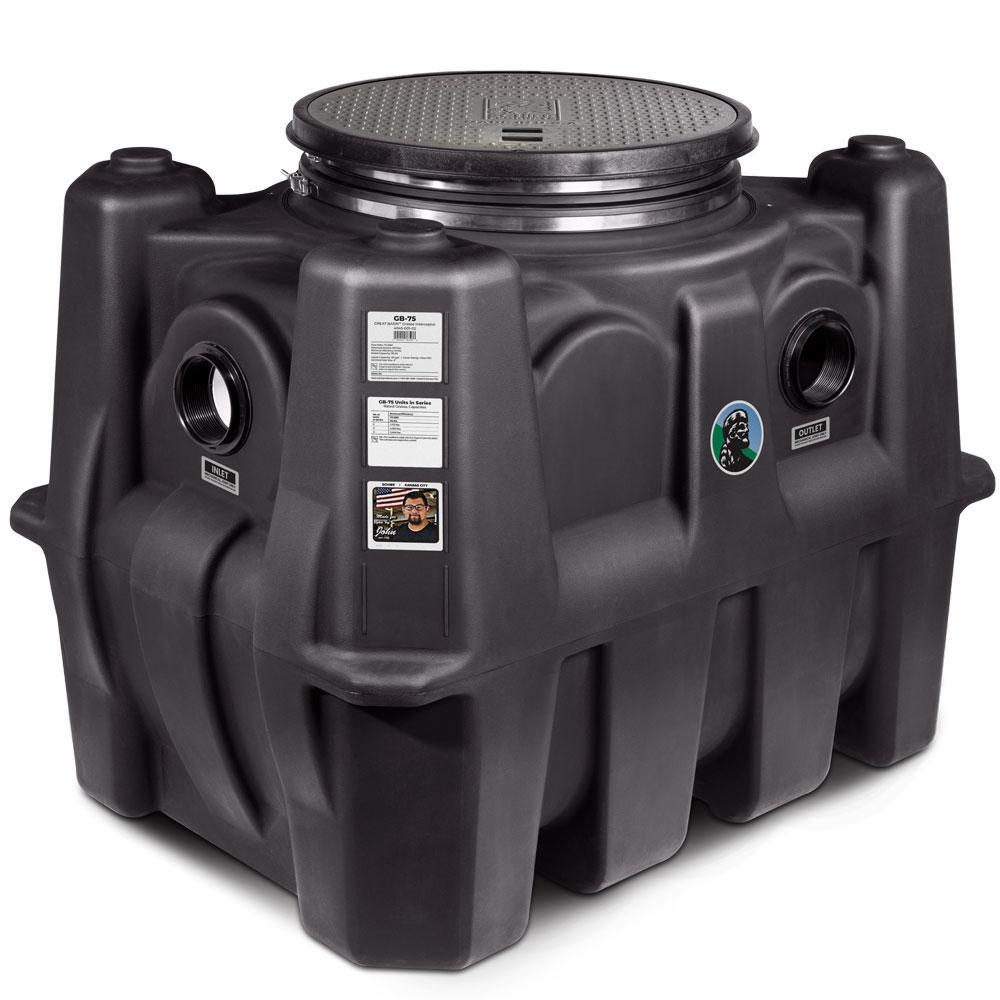

The SCHIER 4045-007-02 Great Basin™ grease interceptor offers a certified grease capacity of 861 lb and a 75 gpm flow rate. It features a rugged polyethylene tank and fits through 36" doorways. Designed for installation flexibility, it can be used above or below grade, indoors or outdoors. No flow control is required and is certified to Type D of the ASME standard.
- 25% kitchen solids capacity
- No flow control required, first in the industry certified to Type D of the ASME standard
- Best-in-class certified grease capacity
Product Highlights
This grease interceptor is suitable for indoor or outdoor installation and is compatible with the FCR2 riser system for below-grade setups.
Product Information
Standard Information
-
Brand: SCHIER
-
Manufacturer Part Number: 4045-007-02
-
Country of Origin: USA
Technical Specifications
-
Type: Grease Interceptor
-

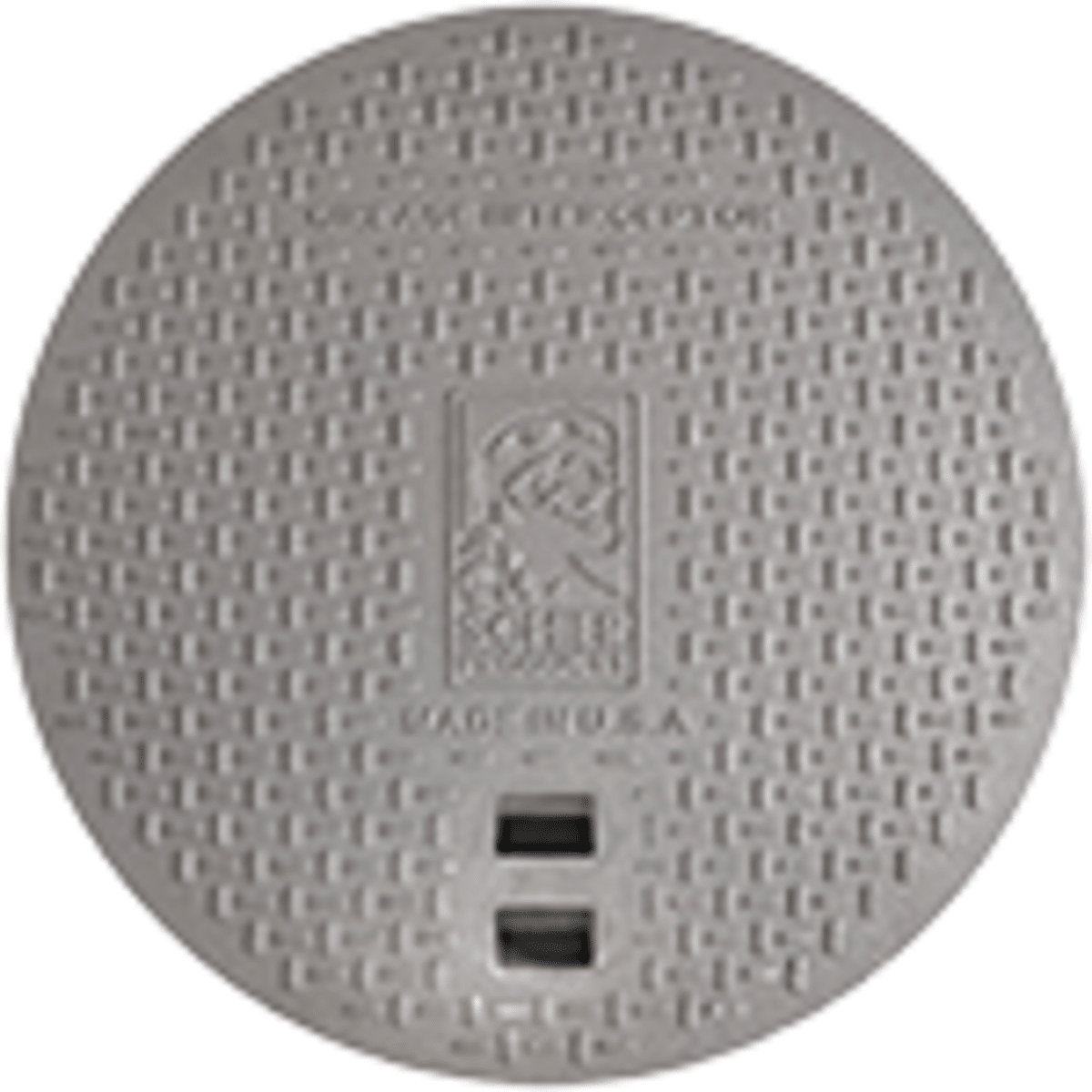

Cover: Cast iron
-
Cover_Ratings: 24" gas/water tight cover, H-20 rated, proof-load tested to 40,000 lbs. Recommended for outdoor installation.
-
Connection_Size: 6"
-
Connection_Type: Fixed Outlet
-
ASME: ASME A112.14.3
-

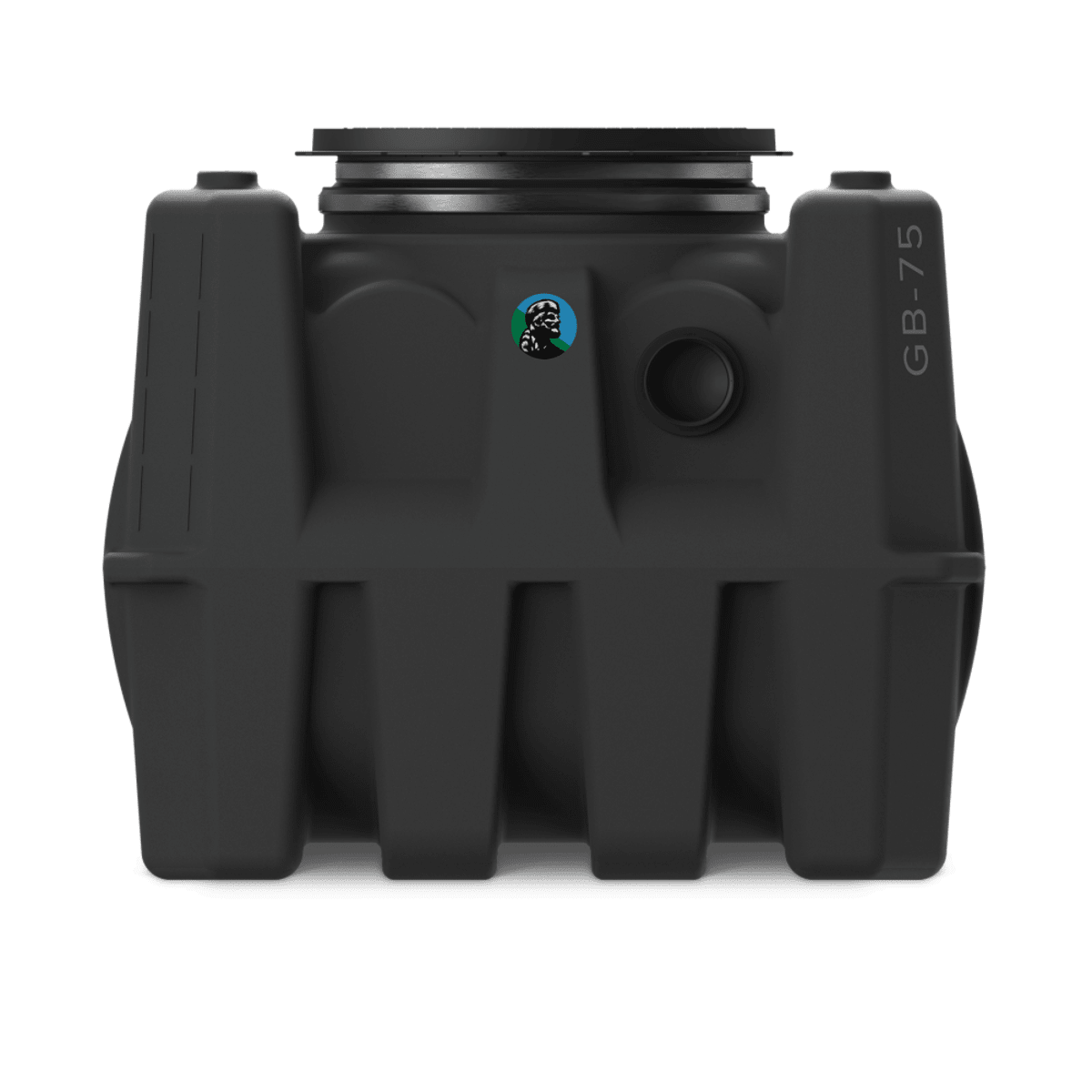

Brand Model Compatibility: GB-75
-
CSA Certified: CSA B481.1
-
Capacity: 861 lb
-
Collection: Great Basin™
-
End Connection 1: Plain End
-
End Connection 2: Plain End
-
End Connections: Plain End
-
Fitting Size 1: 4
-
Fitting Size 2: 4
-
Fitting Sizes: 4 in
-
Flow Rate: 75 gpm
-
Height: 40
-
IAPMO Listed: Yes
-
Length: 47
-
Material: Plastic
-
Material Type: HDPE, Polyethylene
-
Product Type: Grease Interceptor
-
Width: 33
-
Applicable Standard: ASME A112.14.3, CSA B481.1, IAPMO, UPC, CUPC
-
Application: Gravity Drainage, Indoor/Outdoor, Above/Below Grade
-

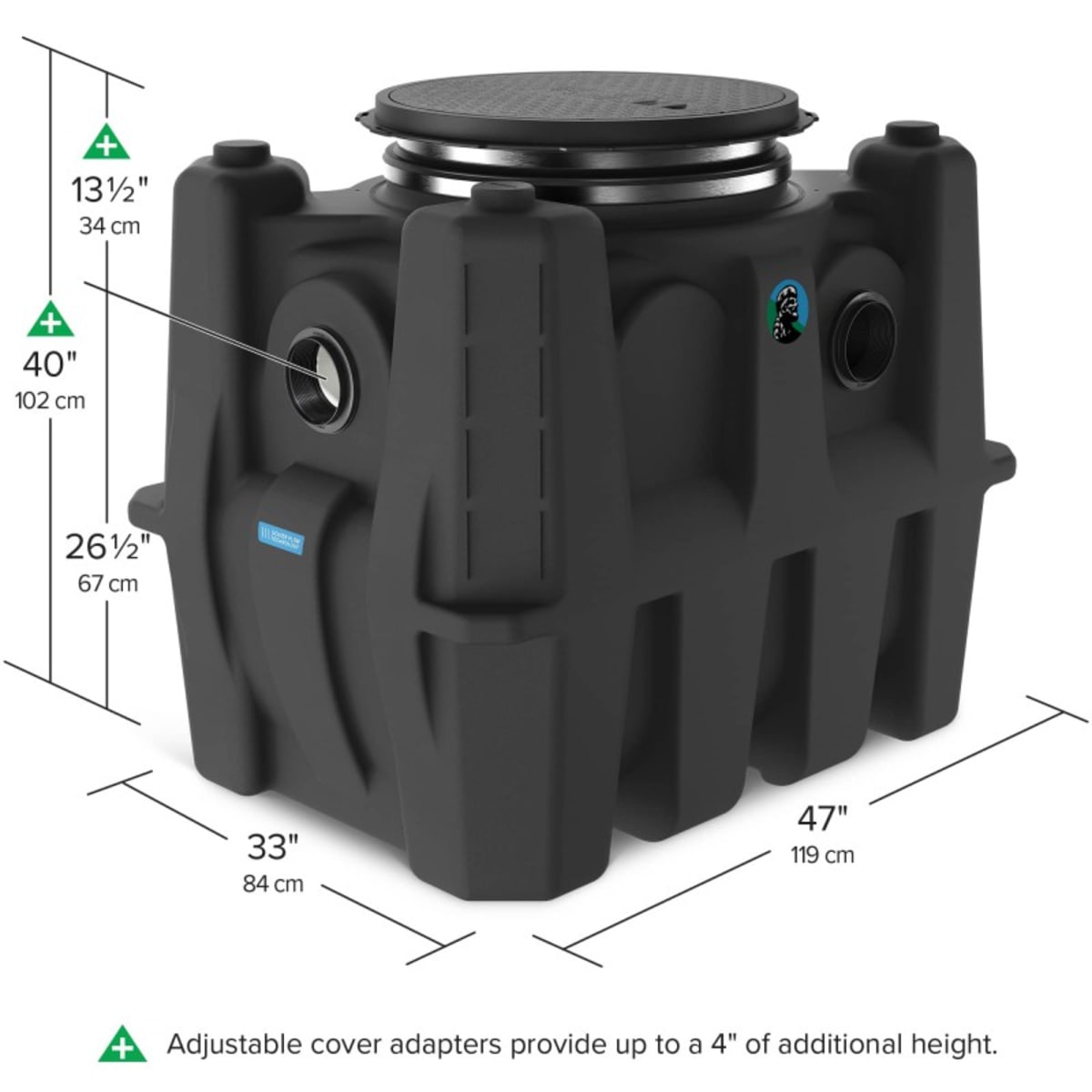

Body Height: 39-3/4 Inch
-
Body Material: Polyethylene
-
Body Width: 33 Inch
-
Cleanout Plug Size: 4 Inch
-
Inclusions/Features: Integral Air Relief, Anti-Siphon, Sampling Access, 4 Inch Plain End Adapter and H-20 Rated Cast Iron Cover
-
Inlet to Top Height: 13-3/8 Inch
-
Outlet to Bottom Height: 26-1/2 Inch
-
Overall Length: 47 Inch
-
Pipe Size: 4 Inch
-
Water Capacity: 125 Gallon (Liquid)
-
End Connection: Female Threaded x Female Threaded
-
Grease Capacity: 861 Pound (75 GPM)
