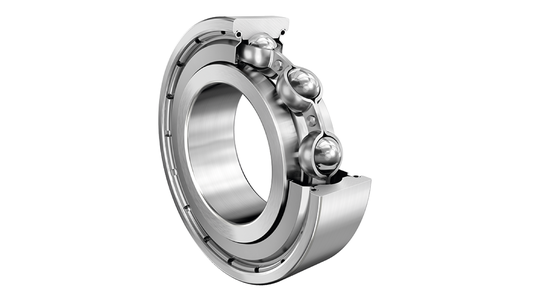

SCHAEFFLER GROUP 6213-2Z-C3 Deep Groove Radial Ball Bearing 65 mm Bore x 120 mm OD x 23 mm W

Product Description

The Schaeffler 6213ZZ05 is a single row deep groove radial ball bearing designed for various applications. It features a bore diameter of sixty-five millimeters, an outer diameter of one hundred twenty millimeters, and a width of twenty-three millimeters. This bearing is a robust option for handling both radial and axial loads efficiently.

• Available in both open and sealed designs.
• Suitable for high-speed applications.
• Manufactured with a sheet steel cage for durability.

Product Highlights

This bearing is engineered for reliability and low friction, making it ideal for high-speed operations.

Product Information

Standard Information

• Brand: SCHAEFFLER GROUP
• MPN: 6213-2Z-C3

Technical Specifications

• Bore Diameter: 65 mm
• Outer Diameter: 120 mm
• Width: 23 mm
• Cage Material: Sheet Steel
• Enclosure Type: Double Shield
• Number of Rows: 1
• Dynamic Load Capacity: 63000 N
• Static Load Capacity: 41500 N
• Temperature Rating: -30 to 120 °C
• Speed Rating: 7300 rpm Limiting, 6300 rpm Reference
